Help CenterSolar Energy Applied Low Temperature Heat Tracing Cable-Dwk-Iecex EAC Certified
Product Spotlights
Related Products
-
Xinhuaning Customized Low Temperature Heat Tracing Wire-Dwk-Iecex and EAC CertificationUS$ 1.6 - 2.5MOQ: 100 Meters -
Customized Premium Low Temperature Heat Tracing Cable for Petroleum Chemical Application-Iecex EACUS$ 1.6 - 2.5MOQ: 100 Meters
-
Dwk Customized Low Temperature Anti-Coagulation Anti Freeze Heat Tracing Cable-Iecex EAC CertificationUS$ 1.6 - 2.5MOQ: 100 Meters
-
ATEX Certified ZWK Self-Regulating Heating Cable for Medium TemperatureUS$ 1.6 - 2.5MOQ: 100 Meters
-
Modified Polyolefin Outer Jacket Heating Cable for Floor Heating-Medium Temperature Zwk-Iece and EAC CertifiedUS$ 1.6 - 2.5MOQ: 100 Meters
Product Description

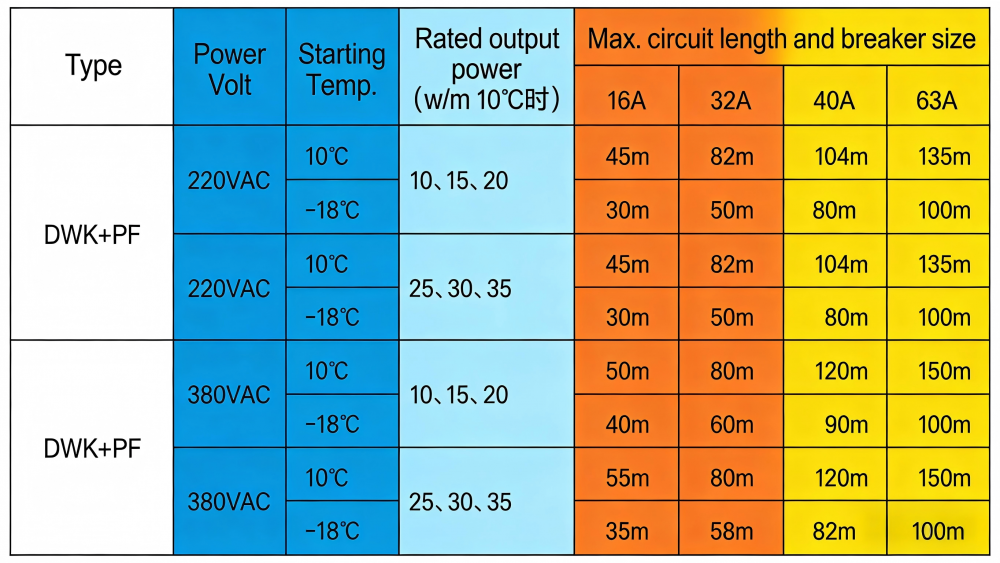

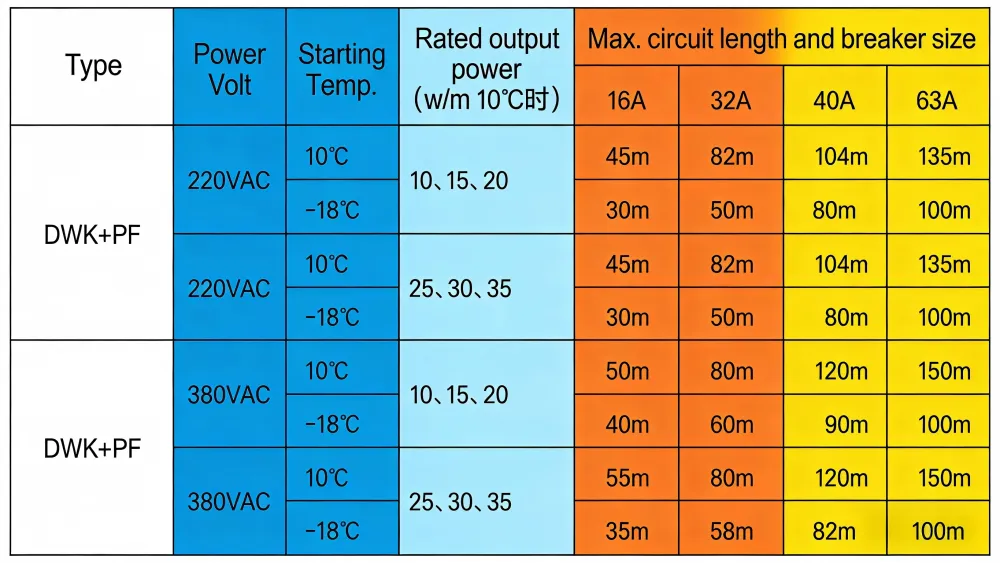

Specification
Maximum Maintain Temperature |
65°C ( 150°F) |
Maximum Intermittent Exposure Temperature |
85°C ( 185°F) |
Minimum Installation Temperature |
-60°C (-76°F) |
Voltage Range |
12V, 24V, 36V, 110V, 220V, 230V,380V |

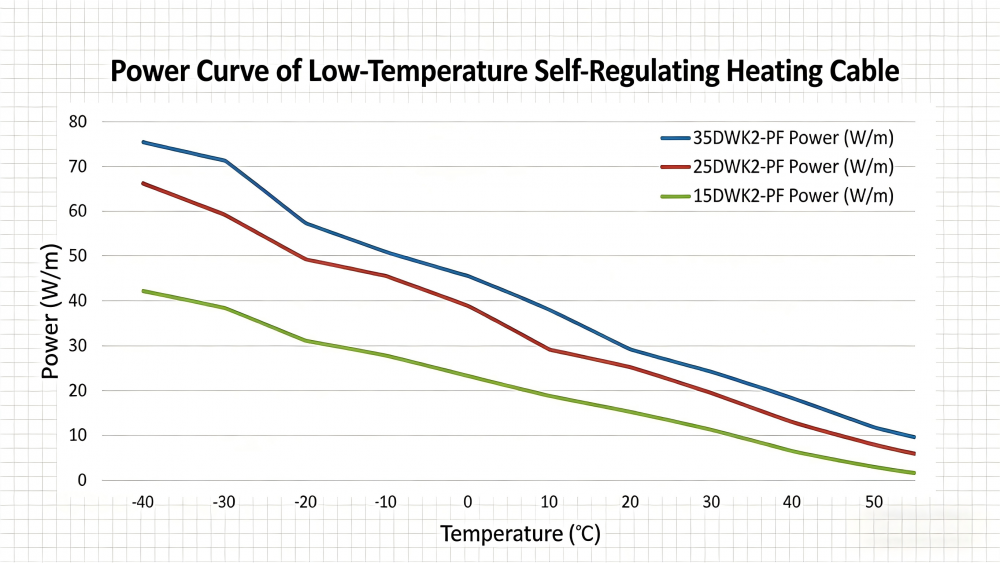

Power Output (at 10°C) |
10W/m to 35W/m |
Min.Bending Radius |
25.4mm @ -20°C 35mm @ -30°C |

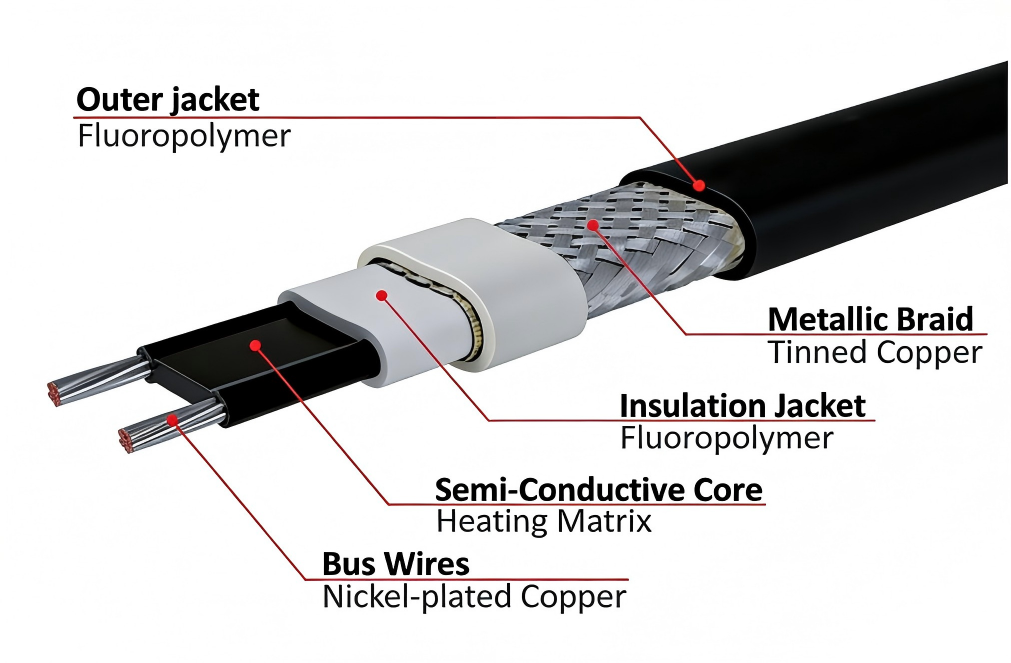

Components and Material
High-quality, customized
Conductors |
Copper (7×0.50mm² or 19×0.32mm²) |
Heating Core |
Conductive Polymer (PTC) |
Insulation |
Modified Polyolefin |
Shielding |
Tinned Copper Braid (80% coverage) |
Outer Jacket |
Modified Polyolefin or Fluoropolymer |
Dimensions |
12.66mm × 5.09 mm |
Packing & Delivery
After Sales Service
Standard Warranty: 12 months after invest in operating
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and parts supply.
Training: On-site or remote operation/maintenance training.
Certifications & Approvals
IECEX;EAC;CNAS
Company Profile
Shandong Huaning Electric Heating Technology Co.,Ltd
Shandong Huaning Electric Heating Technology Co., Ltd. is a comprehensive technological manufacturer of electric heat tracing cable, explosion-proof electric heater, and distribution boxes integrating R&D, design, sales, system integration, and maintenance services.
Since 2007, the company has passed authoritative certifications, such as IS09001, China Classification Society Certification, National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, National Wire and Cable Inspection Center, Shandong Provincial Product Quality Supervision and Inspection Institute Certificate. It has won many honorary titles such as National High-tech Enterprise, Provincial and Municipal "Specialized and New" Enterprise, Jinan Gazelle Enterprise, etc., and possesses 6 invention patents, 38 utility model patents, and 5 software copyright patents. The company has ultra-high voltage long-line skin heating research institute, CSA international electrical standards authorized laboratory, CNOOC submarine heating cable R&D center.

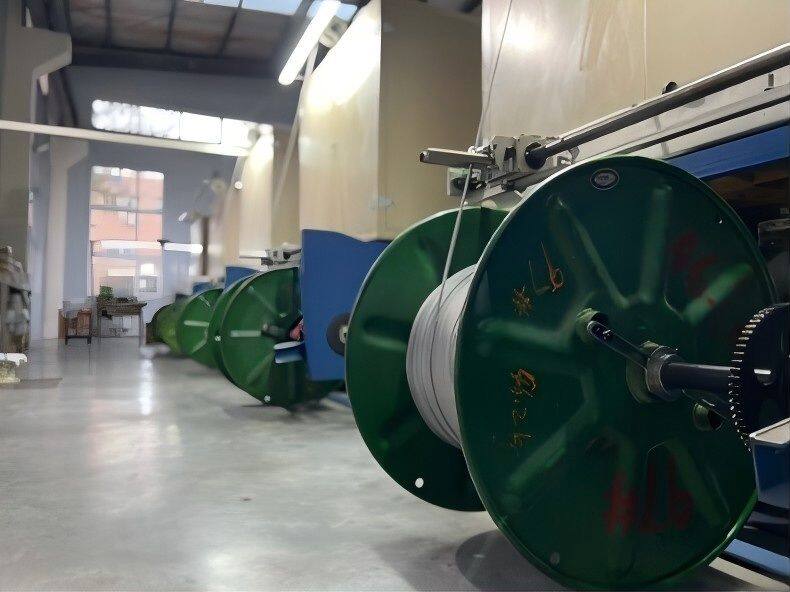

The Huaning factory spans over 60 acres with four production workshops and 14 production lines, including 4 self-limiting temperature lines producing 500,000 meters monthly; 3 mineral insulated heating cable lines with 100,000 meters monthly output; 4 series and parallel connection lines with 500,000
meters monthly; 2 skin-effect cable lines with 50,000 meters monthly; 1 sampling composite pipe line with 35,600 meters monthly; 2 explosion-proof wiring box lines and 2 explosion-proof heater lines, skin-effect cables, with a monthly output of 50,000 meters; 1 set of sampling composite pipe production lines, with a monthly output of 35,600 meters; 2 sets of explosion-proof wiring boxes and 2 sets of explosion-proof heaters production line.
Since its inception, Shandong Huaning has committed to green service as its core, enhancing thermal energy conversion and utilization rates, ushering in a new era of smart energy for electric heating products.
Customer Visit
Huaning prioritizes 'customer supremacy.' Annually, we welcome global clients for factory audits. Our standardized production, quality control, and after-sales service ensure satisfaction. Through international trade shows, Huaning's brand recognition grows worldwide. We are dedicated to maintaining standards, building global trust, and forming lasting partnerships through reliability and excellence.
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 10–15 days; custom units take 30–45 days.
Q: Do you have international certification?
A: Yes, we have EAC, IECEX, ATEX, CE, ISO, etc.
Q: Do you have past performance list overseas?
A: Yes, we are involved in many overseas projects.
Q: How do you assure the product quality?
A: We have an international standard lab; each batch is inspected.
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
