Help CenterAutomatic Busbar Bending, Punching and Cutting Machine
Product Spotlights
Supports flat and vertical bending
High processing accuracy
Smart control system
Compatible with various coil materials
Customizable solutions
Related Products
-
Automatic Busbar Bending, Punching and Cutting MachineNegotiableMOQ: 1 Combo -
Enameled Wire Busbar Bending MachineNegotiableMOQ: 1 Set
-
Automotive Wiper Arm Forming MachineNegotiableMOQ: 1 Combo
-
Edgewise Winding Machine| EC-680NegotiableMOQ: 1 Combo
-
Edgewise Winding Machine |EC-650NegotiableMOQ: 1 Combo
Machine Features：
1.Integrated design: combines bending, punching, and cutting in one machine, significantly improving productivity while saving labor and space.

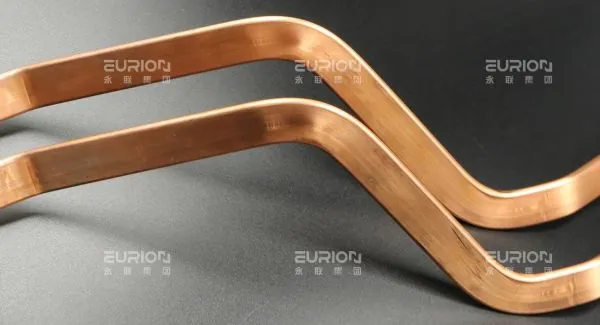

2.Supports flat and vertical bending: adaptable to different busbar structures and complex processing requirements.
3.High processing accuracy: equipped with high-performance servo systems and CNC control to ensure dimensional consistency and stability.

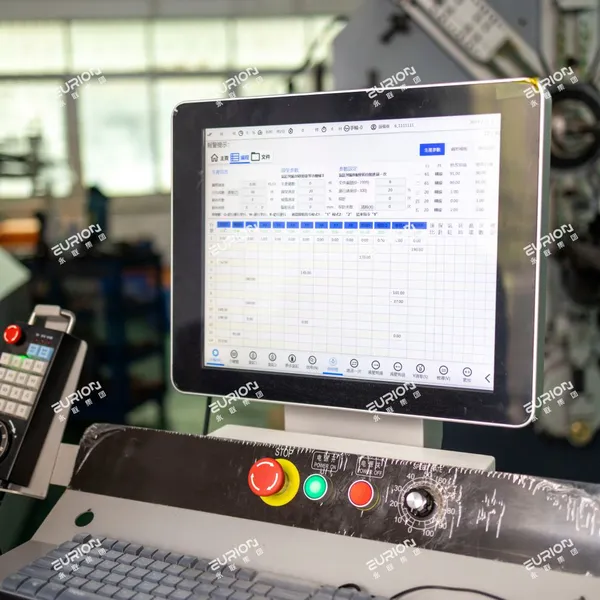

4.Smart control system: equipped with industrial controller, supports 3D drawing import and auto-programming with visual path simulation; easy operation and short setup time.
5.Compatible with various coil materials: processes copper, aluminum, and other busbar types in different sizes.
6.Customizable solutions: optional features like automatic loading/unloading and laser marking are available to meet specific process requirements.
Model |
EB-120TP-10 |
Processing Capacity |
Thickness : 3.0mm ≤ T ≤ 10.0mm Width : 30.0mm ≤ W ≤ 120.0mm |
Machine Function |
Cutting, Punching Bending busbars |
Machine controller |
Industrial Computer |
Punching method |
Hydraulic Press(Mobil 46 hydraulic oil） |
Punching Force |
30T |
Punching Motor Power |
7.5KW |
Punch Head Moving Motor Power |
0.75KW |
Spinner Motor Power |
1.8KW |
Mold Moving Motor Power |
1.8KW |
Cutter Motor Power |
7.5KW |
Dimension(LxWxH) |
5000X2300X2000(mm3) |
Weight |
5000kg |
