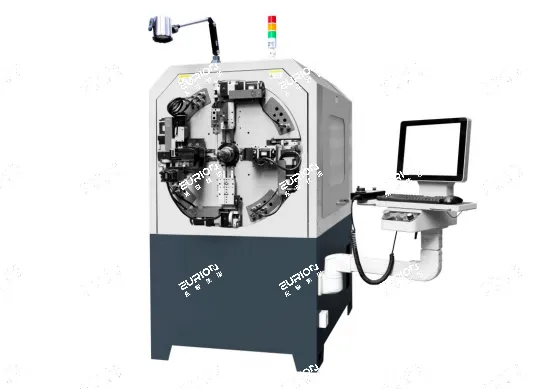

Enameled Wire Busbar Bending Machine

Enameled Wire Busbar Bending Machine thumbnail-1
Enameled Wire Busbar Bending Machine thumbnail-2
Enameled Wire Busbar Bending Machine photo-1
Enameled Wire Busbar Bending Machine photo-2

Product Spotlights

Machine Features: 1.Rotary Bending & Forming2.Multi-Station, Multi-Axis Independent Control 3.Adaptability for High-Difficulty Products 4.Intelligent Operation 5.Application Fields
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Location:
Dongguan, Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Yonglian Industrial (Group) Co., Ltd. Dongguan Branch
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Machine Features:

1.Rotary Bending & Forming: Adopts a panel rotation that drives the guide rail to rotate, enabling multi-angle and multi-directional forming.

2.Multi-Station, Multi-Axis Independent Control: Equipped with multiple servo motors for independent drive, ensuring quick response and high precision to easily achieve complex forming.

3.Adaptability for High-Difficulty Products: Handles complex busbar products and special-shaped wire bending with ease, while offering fast and efficient setup.

4.Intelligent Operation: Industrial PC control system with Chinese-English interface, intuitive, user-friendly, and easy to learn.

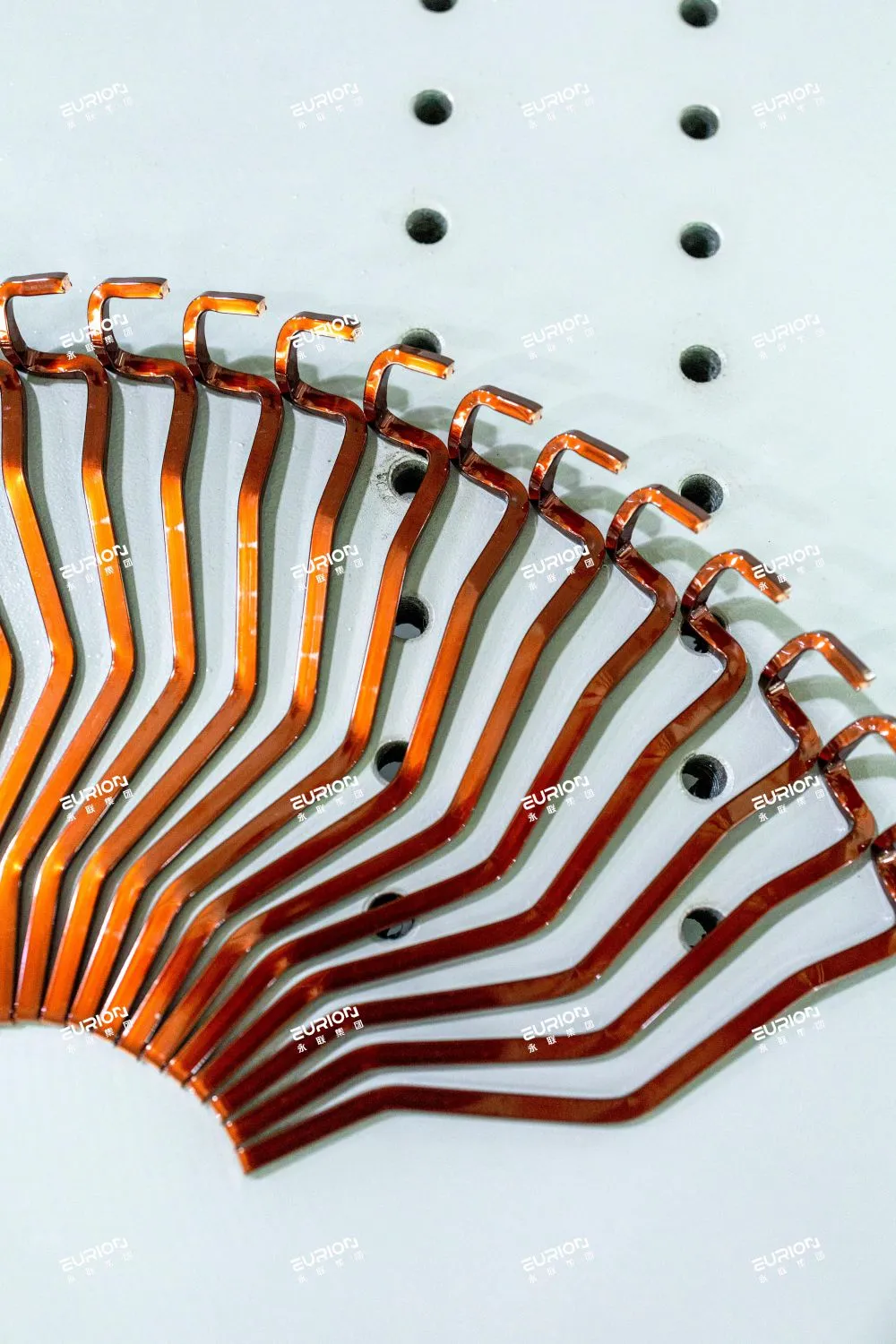

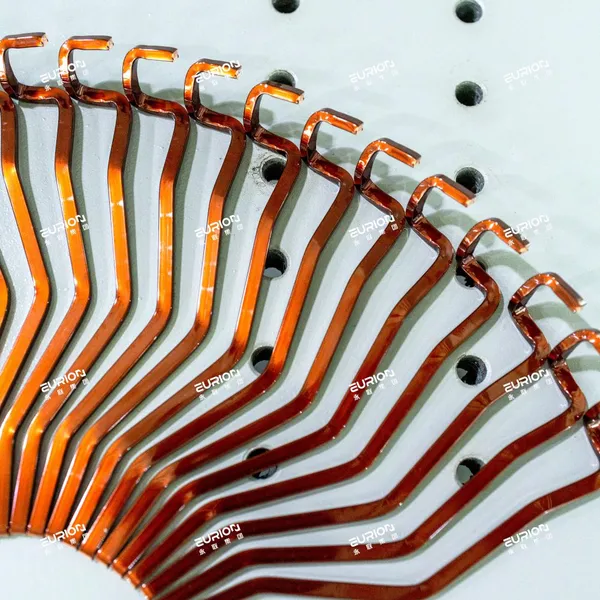

5.Application Fields: Widely used for enameled wire coils, busbars, inductors, transformers, and special spring forming.



Model

EB-1250ZP

Round Wire Processing Capacity

Ø0.5MM～Ø5.0MM（CU）



Flat Wire Processing Capacity

Thickness : 0.3mm ≤ T ≤ 5.0mm

Width : 3.0mm ≤ W ≤ 10.0mm

S=W*T≤ 50mm2

Axis

8~14

Wire Feed Wheel Sets

3Sets

Wire Feeding Motor Power

2.7 KW

Mandrel Rotation Motor Power

1.0KW

Slide Motor Power

0.75KW×4

Turntable Rotation Motor Power

2.7KW

Cutter Holder Lifting Motor Power

0.4KW

Spinner Motor Power (Optional)

0.4KW

Free Arm Motor Power (Optional)

0.4KW

Dimension(LxWxH)

1750x1550x1950 (mm3)

Weight

1500kg


Product Tags: insulated busbars , Rotary Bending
