Home > Manufacturing & Processing Machinery > Other Manufacturing & Processing Machinery > Edgewise Winding Machine |EC-650

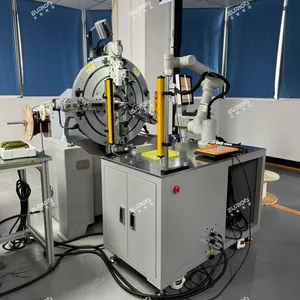

Edgewise Winding Machine |EC-650

Edgewise Winding Machine |EC-650 thumbnail-3

Edgewise Winding Machine |EC-650 photo-1

Edgewise Winding Machine |EC-650 photo-2

Edgewise Winding Machine |EC-650 photo-3

Product Spotlights

High-Precision Servo Control System Six-Axis Coordinated Motion Design Multiple Winding Modes and Coil Shapes Quick Changeover and Efficient Setup Industrial Control Interface with Flexible Numeric Programming

Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Location:

Dongguan, Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Yonglian Industrial (Group) Co., Ltd. Dongguan Branch

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Machine Features：

High-Precision Servo Control System：Equipped with an industrial-grade control platform and imported servo motors with planetary reducers, ensuring high efficiency, accuracy, and stability during operation.

Six-Axis Coordinated Motion Design：Includes feeding, winding, traversing, and multi-axis forming units. Each axis is independently controlled and works in coordination to perform complex forming tasks.

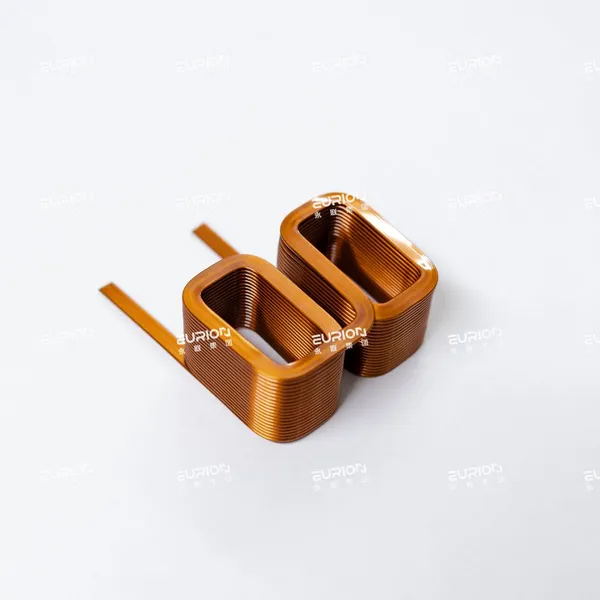

Multiple Winding Modes and Coil Shapes：Supports clockwise/counterclockwise winding, dense winding, variable pitch, single/multi-layer configurations. Capable of forming square, round, trapezoidal, oval, and triangular coils.

Quick Changeover and Efficient Setup：Tooling change allows for different wire specifications; machine parameters can be saved and quickly recalled for fast model switching and reduced setup time.

Industrial Control Interface with Flexible Numeric Programming：Features an intuitive industrial HMI, supporting numeric input programming and graphical path simulation for easy operation and quick learning curve.

Model	EC-650
Processing Capacity	Thickness : 0.3mm ≤ T ≤ 5.0mm Width : 2.0mm ≤ W ≤ 10.0mm S=W*T≤ 50mm2
Winding Direction	Right and Left Winding
Max. Coil Height	≤100mm
Slide Axis Stroke	≤70mm
Wire Feeding Motor Power	2.7kw
Winding Motor Power	1.0kw
Slide Motor Power	1.0KWX4
Dimension(LxWxH)	1500X950X1700(mm3)
Weight	900KG
