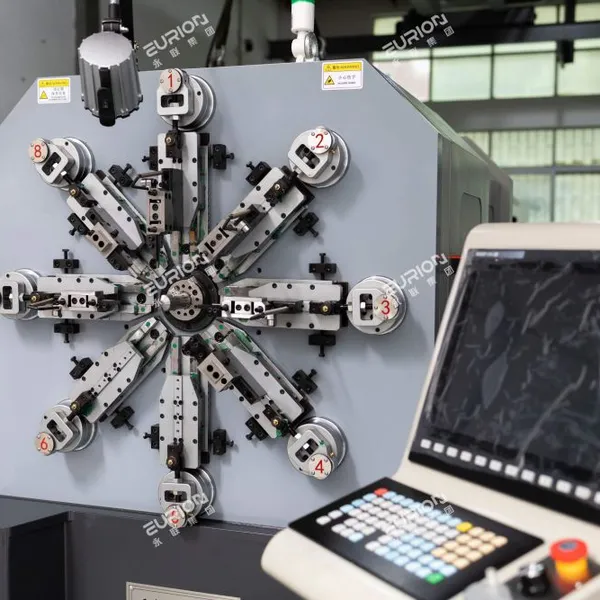

Machine Features：
1. Cam-free design with fully servo-driven axes allows for rapid setup and high flexibility, ideal for small-batch and multi-variety spring production.
2. Equipped with a wire rotation mechanism, enabling 3D forming for complex shaped springs and wire forms.
3. Multi-axis servo motors independently control feeding, rotating, forming, and cutting, ensuring consistent precision throughout the production process.
4. Intelligent HMI with recipe memory allows for spring program storage and quick retrieval, reducing operator dependency and increasing efficiency.
5. Ideal for shaped springs and wire forms used in automotive seats, appliance components, electronics, and decorative parts.
|

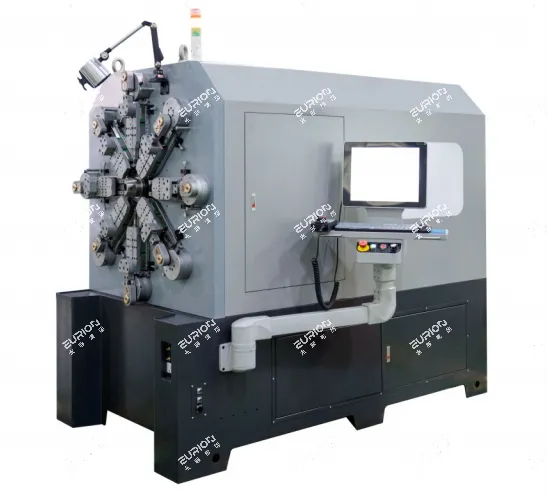

Model |
ES-1235R |
|
Wire Diameter |
Ø0.8～Ø3.5MM |
|
Axis |
12~14 |
|
Wire Feeding Axis |
4.5 KW |
|
Wire Rotary Axis |
2.7KW |
|
Quill Rotary Axis |
1.0 KW |
|
Slide Axis |
1.8KW×8 |
|
Spinner Axis(Optional) |
1.0KW |
|
Free Arm Axis(Optional) |
1.0KW |
|
Servo cutter(Optional) |
/ |
|
Dimension (LxWxH) |
2.13x1.5x1.9 |
|
Weight (kg) |
3500kg |
