Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Automatic Dual-Coil Winding Machine|EC-8Y-760

Automatic Dual-Coil Winding Machine|EC-8Y-760

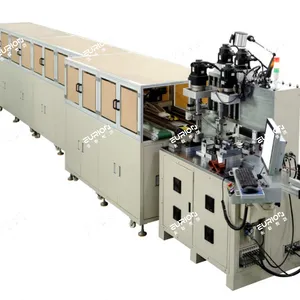

Automatic Dual-Coil Winding Machine|EC-8Y-760 photo-1

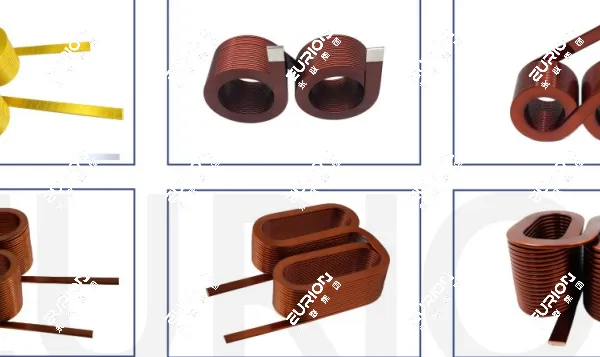

Automatic Dual-Coil Winding Machine|EC-8Y-760 photo-2

Product Spotlights

High-Speed, Stable Wire Feeding High-Precision Synchronized Drive System Integrated Wire Pressing and Cutting Mechanism Fully Automated Process, Labor-Saving Operation Versatile Application Across Industries

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Location:

Dongguan, Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Yonglian Industrial (Group) Co., Ltd. Dongguan Branch

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

1. High-Speed, Stable Wire Feeding : Equipped with rubber roller feeding, ideal for thin and delicate enamelled wires — fast, stable, and resistant to bending.Combined with pneumatic mold feeding for large-diameter wires, offering broad adaptability.

2. High-Precision Synchronized Drive System : Dual linear guides with precision helical gear transmission ensure accuracy and smooth operation.The transfer motor moves in synchronization with the winding head via interpolation, delivering the wire precisely into the winding slot.

3. Integrated Wire Pressing and Cutting Mechanism : Guides the wire accurately into the winding slot and keeps it firmly in place during winding, preventing misalignment or wire jumping.

4. Fully Automated Process, Labor-Saving Operation : From feeding and winding to coil pickup, all steps are automated — enabling one operator to manage multiple machines and greatly improving efficiency.

5. Versatile Application Across Industries : Ideal for high-frequency transformers, energy storage inductors, and network communication coils.Designed to meet demanding requirements for dual-coil structures and precision flat or round wire winding.

Model	EC-8Y-760
Processing Capacity	Thickness : 1.0mm ≤ T ≤ 5.0mm Width : 5.0mm ≤ W ≤ 15.0mm *S=WT≤ 60mm2**
Axis	7
Winding Motor Power	2.0KWX2
Lifting Motor Power	2.0KWX2
Wire Feeding Motor Power	0.4KW
Angle-bending Motor Power	0.4KW
Transfer Motor Power	2.0KW
Dimension(LxWxH)	9550X1450X2030(mm³)
Weight	1800kg
