SS304 Stainless Steel Woven Wire Mesh Screen 80 Mesh Diamter 0.12mm 1m X 30m

SS304 Stainless Steel Woven Wire Mesh Screen 80 Mesh Diamter 0.12mm 1m X 30m photo-1

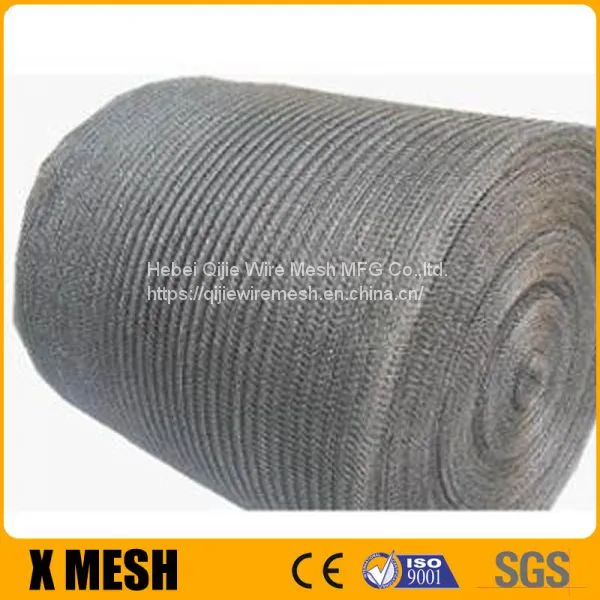

SS304 Stainless Steel Woven Wire Mesh Screen 80 Mesh Diamter 0.12mm 1m X 30m photo-2
US$ 120 - 150 MOQ: 1 Roll
Key Specifications
Get Latest Price
Material:
SUS304
Type:
Stainless Steel Plain Wire Mesh
Warranty:
1year
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Material SUS304
Type Stainless Steel Plain Wire Mesh
Warranty 1year
Application Filter, Screen
Technique Woven
After-sales Service 1year
Weave Technique Plain Weave
Wire Mesh Width 1m
Nickels 10%
Hole Shape Square
Material Type Stainless Steel Wire
Transport Package pallets
Specification 1mx30m
Trademark qijie
Origin china

SS304 Stainless Steel Woven Wire Mesh Screen 80 Mesh Diamter 0.12mm 1m X 30m





1. material:stainless steel SUS302, 304, 316, 304L, 316L,low carbon,copper and other materials can according to your requiry

2. feature:anti-rust,anti-heat,anti-cold,smooth surface,beautiful appearance,bright luster,

3. weave type:plain weave,plain Dutch weave,twill weave,twill Dutch weave

4. inspection: the wire mesh do strictly tested before the goods dispatched form our factory to ensure their quality.make sure customers get the perfect quality

5. package:inside he roll with "paper tube" to reduce the pressure while loading ;then wrapped with "plastic film"as well as the "woven bag" on the finished roll.final loaded in the strong wooden case or as customer's requirement.

6. company:we warmly welcome all friend from all over the world to be our business parters on the basis of equality and mutual benefit and to creat a good quality and moderate price.



No Item specification
1 mesh count 1*1 to 635*635
2 wire diameter 0.02mm to 2.03mm
3 Apeture 0.02mm to 23.37mm
4 Open area 25 to 85
5 weight(LB) per 100 square foot 2.63 to 41.1
6 tolerance of mesh diameter 0.002 to 0.006
7 Max Tolerance 0.001 to 0.006



Dutch wire mesh offers good wear resistance, heat resistance, acid resistance and corrosion resistance .

Dutch wire mesh (stainless steel and other materials) is utilized as fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.

Dutch wire mesh weaving patterns: dutch plain weaving, dutch twill weaving and dutch reverse weaving.

What is dutch twill weave? What is dutch reverse weave? See below information!

Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

Dutch Reverse Weave: Dutch Reverse Weave is the same as Dutch weave except the warp and weft wires are reversed.

Stainless Steel Dutch Wire Mesh

Mesh Wire Dia. (MM) Material (AISI)
12mesh x 64mesh 0.58 x 0.40 304 or 316
24mesh x 110mesh 0.36 x 0.25 304 or 316
14mesh x 88mesh 0.50 x 0.33 304 or 316
30mesh x 150mesh 0.23 x 0.18 304 or 316
40mesh x 200mesh 0.18 x 0.13 304 or 316
50mesh x 250mesh 0.14 x 0.11 304 or 316
80mesh x 700mesh 0.10 x 0.08 304 or 316
165mesh x 800mesh 0.071 x 0.040 304 or 316
165mesh x 1400mesh 0.06 x 0.04 304 or 316
200mesh x 1800mesh 0.05 x 0.032 304 or 316
825mesh x 2300mesh 0.035 x 0.025 316L
400mesh x 2800mesh 0.030 x 0.02 316L

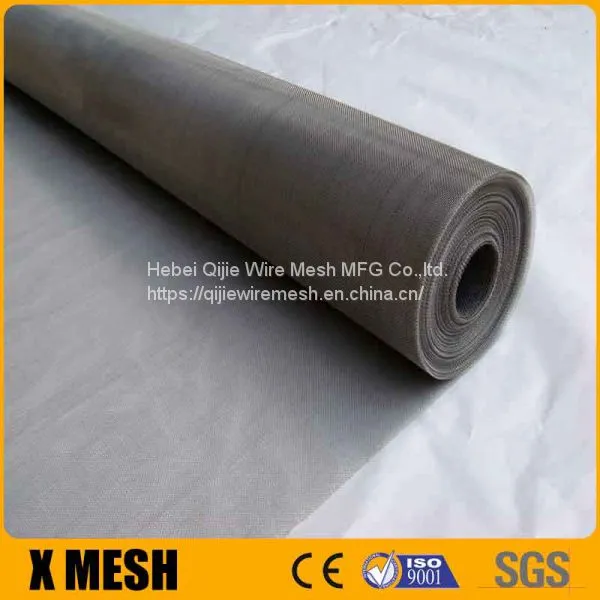

sswovenmesh3sswovenmesh13
