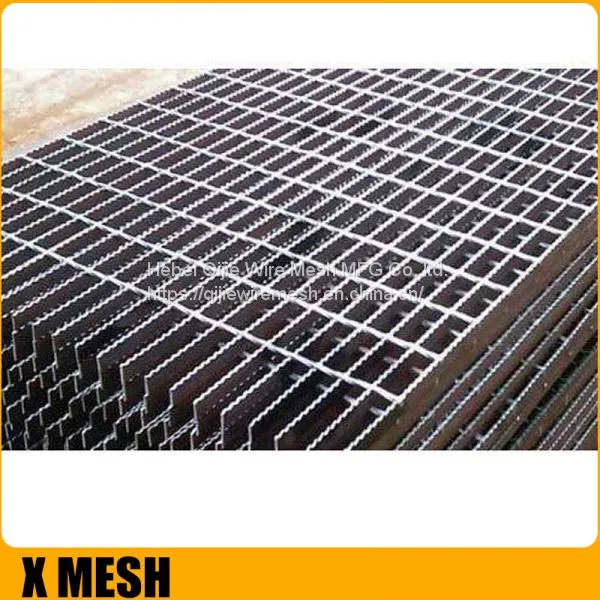

Serrated Welded Steel Bar Grating for Floorings
Product description
serrated welded steel grating is made of low carbon steel and stainless steel. With the features of high strength, high bearing capacity, non-slip, anti-corrosion, high safety performance, do not accumulate rain, snow and dust and long lifespan, it is widely used as platforms, stair treads, walkaway and floors in industrial, civil and commercial buildings.
Specification:
Materials: low carbon steel, stainless steel.
Surface treatment: galvanized, powder coating, painted color.
Height of bearing bar: 20 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm.
Thickness of bearing bar: 2 mm, 3 mm, 4 mm, 5 mm.
Mesh size: 34 mm × 38 mm
Packaging:Strap packing.
Pallet packing.
Screw rod fixation.
Features of serrated welded steel grating
High strength and high bearing capacity:
Non-slip, anti-corrosion, not easy to deform.
High safety performance.
Do not accumulate rain, snow and dust.
Simple and beautiful appearance.
Easy to install and remove to extend the lifespan.
Applications of serrated welded steel gratingSerrated welded steel grating is widely used as platforms, stair treads, walkaways and floors in industrial, civil and commercial buildings.
Grating Standardizations:
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A ) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
| No | Item | Description |
| 1 | Bearing bar | 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm |
| 2 | Bear bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
| 3 | Cross bar pitch | 38,50,76,100,101.6mm |
| 4 | Material | Q235,A36,SS304 |
| 5 | Surface treatment | Black, hot dipped galvanising, paint |
| 6 | Standard | China: YB/T 4001.1-2007 |
| USA: ANSI/NAAMM(MBG531-88) | ||
| UK: BS4592-1987 | ||
| Australia: AS1657-1985 |
Feature:
Appearance: simple lines. Silver exterior, modern trends.
Best drainage: leakage area of 83.3%, more than double the cast iron.
Hot-dip galvanizing: rust-proof and strong, maintenance and replacement.
Security design: box with hinged lid and connection, security, safe, easy to open.
Saving investment: large span. When overloaded, the lowest ratio of iron and saves replacement costs stolen, then crushed.
High strength: strength and toughness is much higher than cast iron, can be used for terminals, airports and other large span and heavy load environment.
Specifications and more: meet different environment and loading requirement. Span, the desired size and shape.
