Galvanized Sheet Oval Grip Strut Work Platform Walkway Safety Grating
Product Description

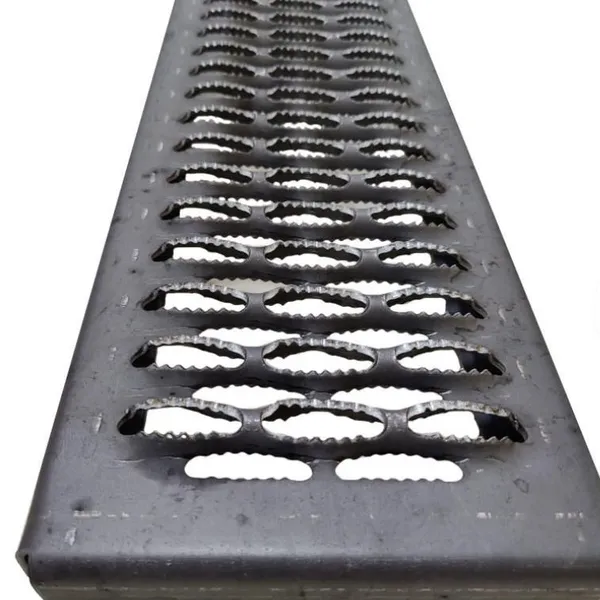

Galvanized Sheet Oval Grip Strut Work Platform Walkway Safety Grating is designed for industrial flooring applications requiring high slip resistance and durability. The oval hole pattern with raised surface provides excellent traction, drainage, and load-bearing performance.
Features
Material: Galvanized steel, stainless steel, or aluminum
Surface: Hot-dip galvanized or powder coated
Hole shape: Oval with embossed or serrated edges
Thickness: 1.5mm–3.0mm
Custom sizes available
Applications
Suitable for walkways, platforms, stair treads, construction sites, factories, and oil rigs. Easy to install, corrosion-resistant, and low maintenance.

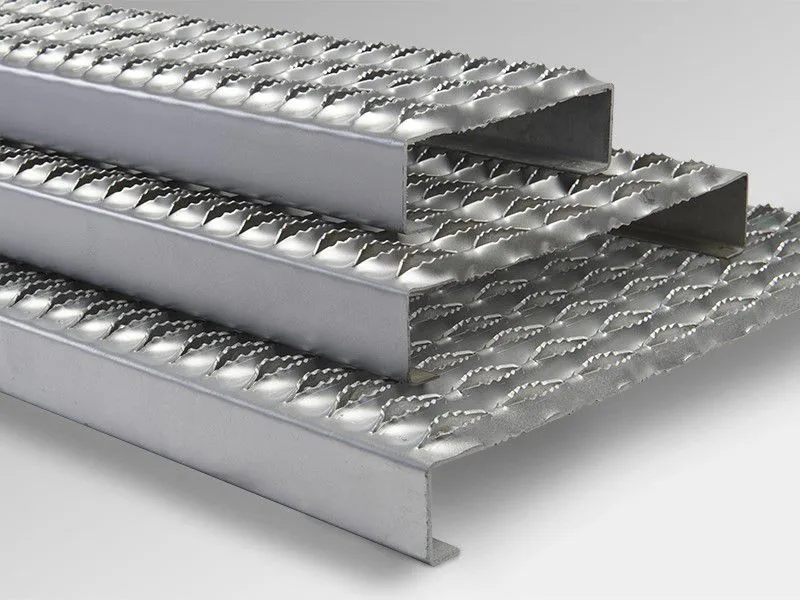

Grip Strut Safety Plank Grating Advantages
√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain
| Material |
hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc. |
| Hole patterns | crocodile mouth, round raised hole, tears shape etc. |
| Thickness | generally 2mm, 2.5mm, 3.0mm |
| Height | 20mm, 40mm, 45mm, 50mm, customized |
| Length | 1m, 2m, 2.5m, 3.0m, 3.66m |
| Production technique | punching, cutting, bending, welding |
Material
12 & 14 ga. Pre-Galvanized and Plain Steel
(.080 and .100 ga. 5052-H32)Type 304 16 ga. Stainless Steel
(Type 316L Stainless by special order)
Widths
24”
Heights
4-1/2”
Lengths
10’, 12’, or cut to size, walkways up to 24’ by special order.
(Stock sizes are run to full diamonds)
| Material Grade | Pre-Galvanized Steel Hot Rolled Pickled and Oiled (HRPO) steel Aluminum Alloy 5052 Stainless Steel 304, Stainless Steel 316 |
| Material Gauge | 9Guage, 10Guage, 11Guage, 12Guage, 13Guage, |
| Available Patterns | Standard Serrated, Non-serrated, Heavy duty |
| Widths and holes number | 2 Diamond holes for 4-3/4"width 3 Diamond holes for 7" width 4 Diamond holes of 9-1/2" width 5 Diamond holes of 11-3/4" width 6 Diamond holes of 14-3/4" width 7 Diamond holes of 17" width 9 Diamond holes of 21-1/2" width 10 Diamond holes of 24" width |
| Channel Depth | 1-1/2, 2, 2-1/2, 3" or customized |
| Channel Length | 6',8', 10', 12', or customized |
| Loading capacity | To check with our sales or engineers for Loading capacity table list |
| Slip resistance | complies with Federal Specification RR-G-1602D standards |
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
Product Features
1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications
