Max 6000mm Regular Grip Strut - Walkway For Stair Treads Ramps And Decks

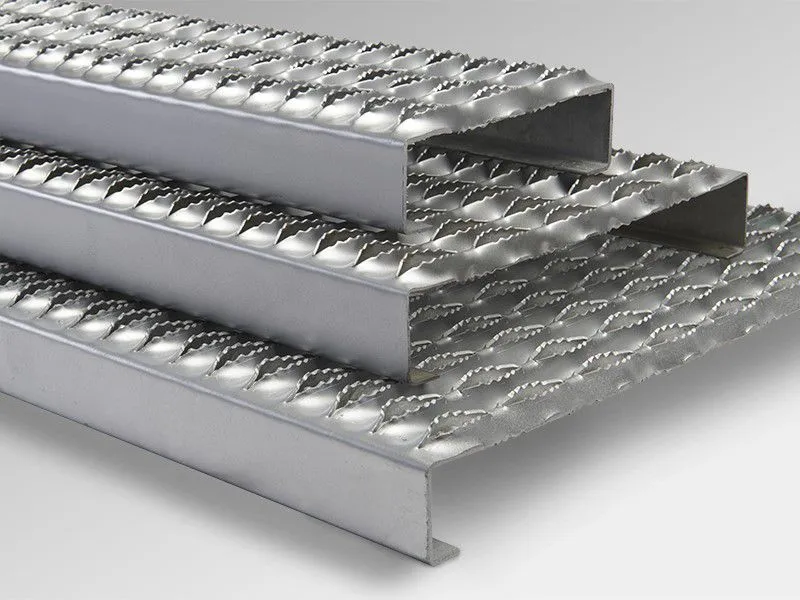

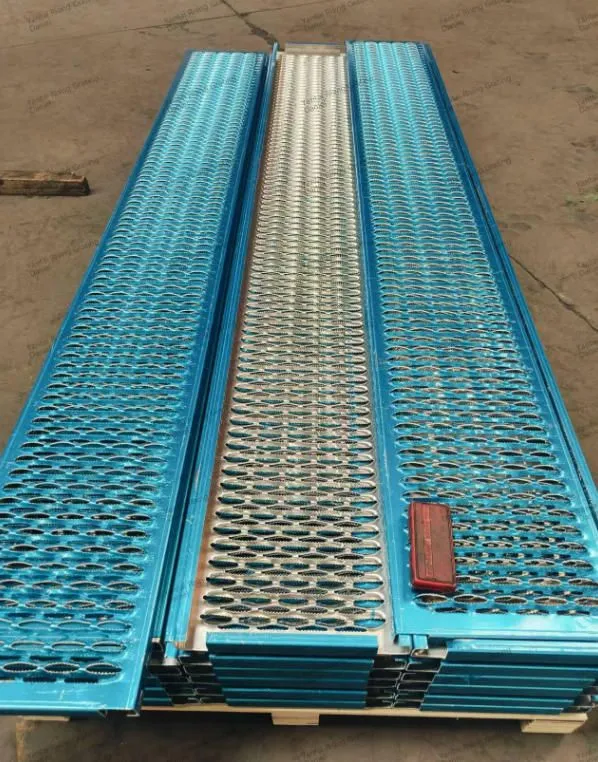

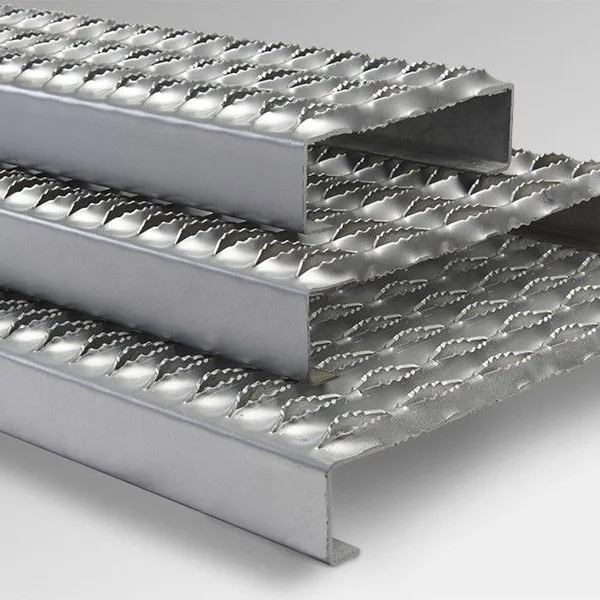

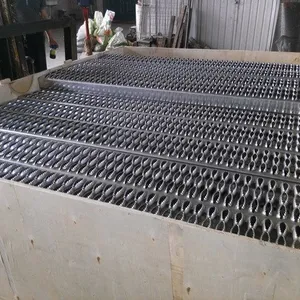

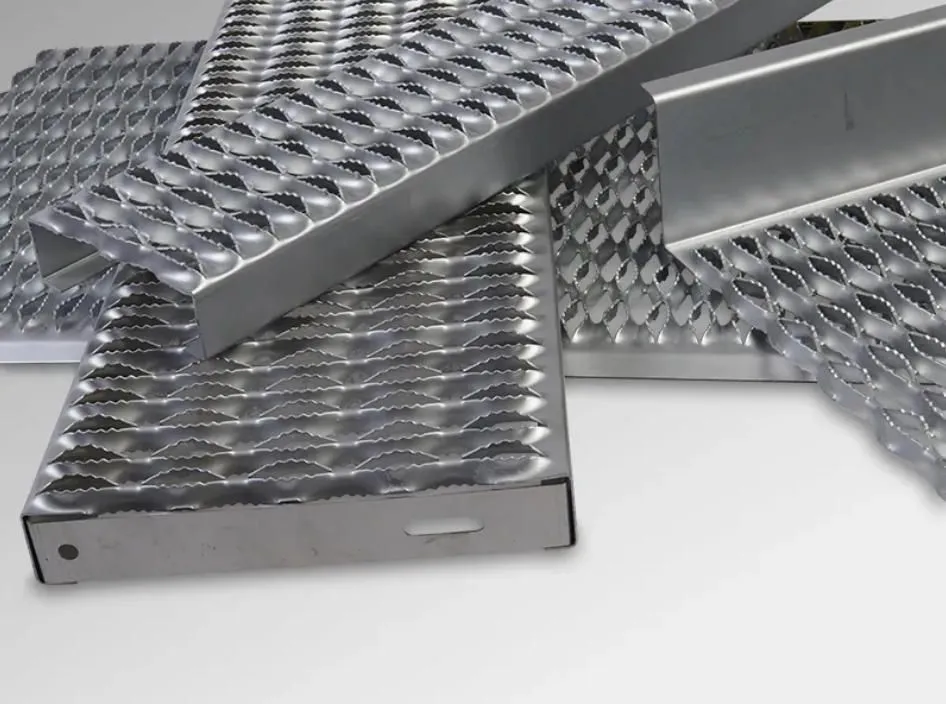

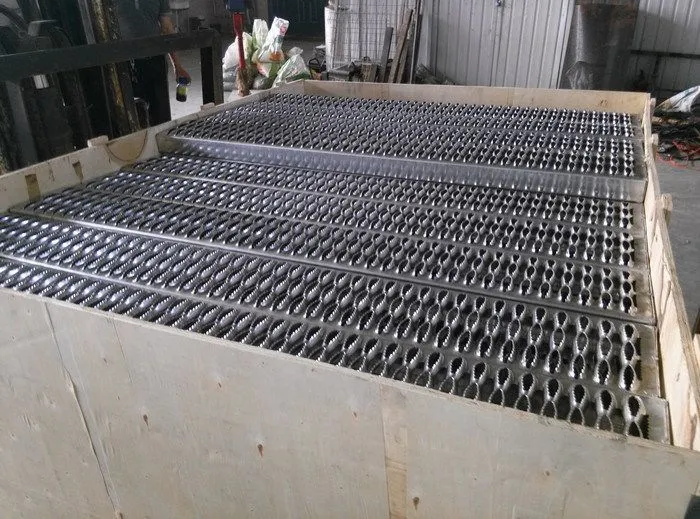

Grip Strut Plank Grating also named diamond grip plank grading, grip strut safety grating. Our this perforated plank grating has serrated surface, provide a safer surface than many other grating products. It helps eliminate costly accidents, which reduces insurance costs and lost production. The open diamond pattern allows most debris and dirt to drain. Grip Strut Plank Grating is available in serrated and smooth diamond patterns, create non-slip walkways and stair treads. Material be Pre-Galvanized,Plain Steel,Stainless Steel and Aluminum Alloy.
Custom Design:
All Guorun safety gratings are also available as flat blanks without folded edges.
In that case, the maximum embossed field width must not be greater than 750 mm for diamond forms.
For manufacturing reasons, these flat cuts have a slightly curved finish.
Gratings with other dimensions (H/W/L) than those mentioned above can also be produced.
Gratings with unperforated edges or surfaces on one or both front surfaces are also available.
We can also be supplied with ø 5-mm drain holes.
Please contact us for further technical questions.
Material
12 & 14 ga. Pre-Galvanized and Plain Steel
(.080 and .100 ga. 5052-H32)Type 304 16 ga. Stainless Steel
(Type 316L Stainless by special order)
Widths
24”
Heights
4-1/2”
Lengths
10’, 12’, or cut to size, walkways up to 24’ by special order.
(Stock sizes are run to full diamonds)
| Material Grade | Pre-Galvanized Steel Hot Rolled Pickled and Oiled (HRPO) steel Aluminum Alloy 5052 Stainless Steel 304, Stainless Steel 316 |
| Material Gauge | 9Guage, 10Guage, 11Guage, 12Guage, 13Guage, |
| Available Patterns | Standard Serrated, Non-serrated, Heavy duty |
| Widths and holes number | 2 Diamond holes for 4-3/4"width 3 Diamond holes for 7" width 4 Diamond holes of 9-1/2" width 5 Diamond holes of 11-3/4" width 6 Diamond holes of 14-3/4" width 7 Diamond holes of 17" width 9 Diamond holes of 21-1/2" width 10 Diamond holes of 24" width |
| Channel Depth | 1-1/2, 2, 2-1/2, 3" or customized |
| Channel Length | 6',8', 10', 12', or customized |
| Loading capacity | To check with our sales or engineers for Loading capacity table list |
| Slip resistance | complies with Federal Specification RR-G-1602D standards |
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
