OEM Tec-Sieve Grip Strut Safety Grating/Perforated Metal Walkway Grating/Catwalk Grating
Product Description

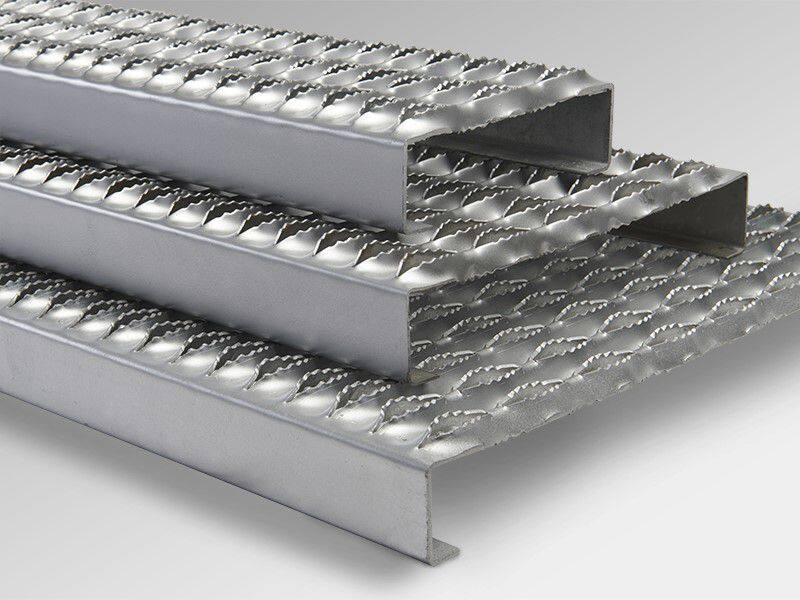

Grip Strut Safety Grating, also called Grip-Span Grating, is a multifunctional, one-piece, plank-type grating panel.
Grip Strut Safety Grating is made out of a single plate of carbon steel, galvanized steel, stainless steel or aluminum alloy, which forms both the non-slip diamond shaped openings, serrated surface, and the load-supporting continuous channel at either side.
In terms of Grip Strut Safety Grating, maximum slip resistance in all directions is provided by a heavily serrated, diamond matrix walking surface that enhances workplace safety.
Grip Strut Safety Plank Grating Advantages
√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain
| Material |
hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc. |
| Hole patterns | crocodile mouth, round raised hole, tears shape etc. |
| Thickness | generally 2mm, 2.5mm, 3.0mm |
| Height | 20mm, 40mm, 45mm, 50mm, customized |
| Length | 1m, 2m, 2.5m, 3.0m, 3.66m |
| Production technique | punching, cutting, bending, welding |
Material
12 & 14 ga. Pre-Galvanized and Plain Steel
(.080 and .100 ga. 5052-H32)Type 304 16 ga. Stainless Steel
(Type 316L Stainless by special order)
Widths
24”
Heights
4-1/2”
Lengths
10’, 12’, or cut to size, walkways up to 24’ by special order.
(Stock sizes are run to full diamonds)
| Material Grade | Pre-Galvanized Steel Hot Rolled Pickled and Oiled (HRPO) steel Aluminum Alloy 5052 Stainless Steel 304, Stainless Steel 316 |
| Material Gauge | 9Guage, 10Guage, 11Guage, 12Guage, 13Guage, |
| Available Patterns | Standard Serrated, Non-serrated, Heavy duty |
| Widths and holes number | 2 Diamond holes for 4-3/4"width 3 Diamond holes for 7" width 4 Diamond holes of 9-1/2" width 5 Diamond holes of 11-3/4" width 6 Diamond holes of 14-3/4" width 7 Diamond holes of 17" width 9 Diamond holes of 21-1/2" width 10 Diamond holes of 24" width |
| Channel Depth | 1-1/2, 2, 2-1/2, 3" or customized |
| Channel Length | 6',8', 10', 12', or customized |
| Loading capacity | To check with our sales or engineers for Loading capacity table list |
| Slip resistance | complies with Federal Specification RR-G-1602D standards |
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
Product Features
1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications
