Help CenterTwin-screw Castanopsis Chinensis-shaped Mixer
Product Spotlights
• Conical no-dead-corner design, no bottom bearing, residue ＜ 0.5%
• Gentle mixing, no crushing, no segregation, no overheating
Related Products

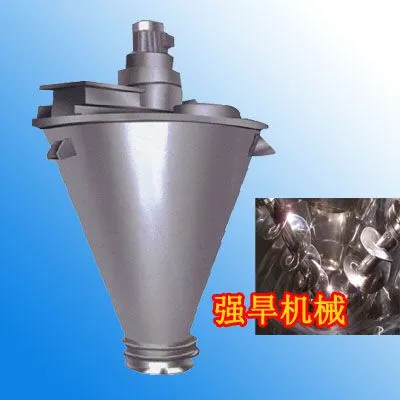

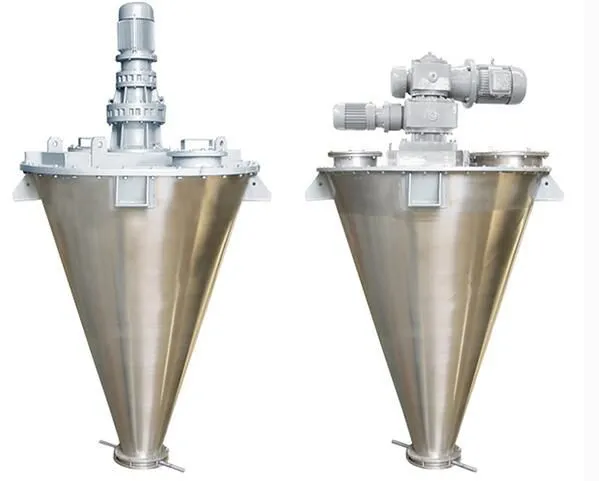

DSH Series Double Screw Conical Mixer is a high-efficiency, high-precision vertical powder mixing equipment. Adopting asymmetric double screw structure, it realizes high uniform mixing in short time through combined rotation and revolution movement. Especially suitable for mixing materials with large specific gravity difference, easy agglomeration and heat sensitivity. Widely used in pharmaceutical, food, chemical, pesticide, dye, lithium battery, building materials, feed and other industries.

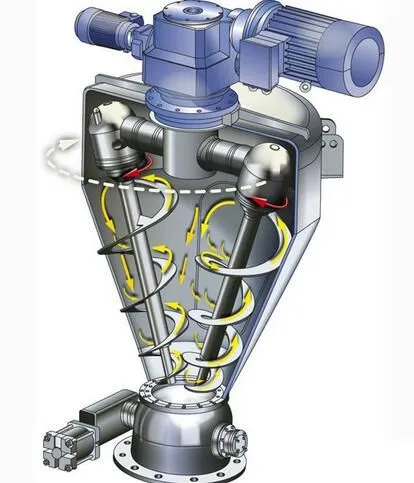

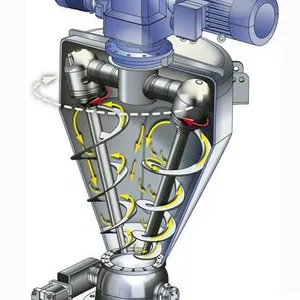

2. Working Principle
• Asymmetric double screw layout, long screw near cone wall, short screw in center
• Rotation: material rises spirally and diffuses radially
• Revolution: material circulates along cone wall, eliminates dead corners
• Combined movement realizes convection, diffusion, shearing for fast uniform mixing
3. Key Features
• High mixing uniformity, CV ≤ 5%, mixing time 4–10 minutes
• No dead corners, low residue, easy to clean
• Low energy consumption, only 1/10 of traditional mixers
• Gentle to materials, no crushing, no abrasion, no segregation
• Fully sealed structure, no dust leakage, eco-friendly & safe
• Material optional: 304/316L stainless steel, carbon steel, lined plastic, Hastelloy
• Can be equipped with vacuum, heating/cooling jacket, liquid spraying, explosion-proof, inverter
4. Applications
• Pharmaceutical: API, medical powder, intermediates
• Food: condiment, milk powder, spice, nutrition powder
• Chemical: pigment, dye, resin, pesticide, fertilizer
• New Energy: lithium battery cathode & anode material, conductive agent, binder
• Building Materials: ceramic glaze, dry mortar, metal powder
• Others: feed, fine chemical, composite material
Professional manufacturer of double screw conical mixer, support customization. Welcome to inquire with drawings and samples!
