QWB water quenching tank, quenching water tank, water quenching tank
QWB water quenching tank, quenching water tank, water quenching tank
Chengchi brand QWB water quenching tank, quenching water tank, water quenching tank is a quenching tank that uses quenching water as the medium and is designed specifically for water-based quenching media. Water and water quality quenching media are safe, environmentally friendly, non flammable, and have a low risk of fire during operation. Water is a natural resource that can be properly treated and recycled. The cooling speed of water quenching is very fast: water has a large specific heat capacity and high thermal conductivity. It easily evaporates at high temperatures to form a steam film, which then ruptures, allowing water to come into direct contact with hot metals, resulting in a very fast cooling rate. Suitable for workpieces with high hardness requirements, simple shapes, small sizes, as well as carbon steel and low-alloy steel with high carbon content. In order to achieve
Quenching pool, quenching water pool, water quenching pool
QWB water quenching tank, quenching water tank, the inner wall of the water quenching tank is welded with 4mm 0Cr18Ni9 stainless steel plate on the steel frame; Fill the middle with aluminum silicate insulation cotton for thermal insulation, suitable for the process requirements of high temperature quenching; The external panel is composed of bent panels. Water quenching pool, the quenching pool function can flexibly choose heating, automatic temperature control, stirring, circulation, cooling, lifting mechanism, automatic water inlet, filtration system, fire extinguishing system, intelligent control and other functions according to user needs.

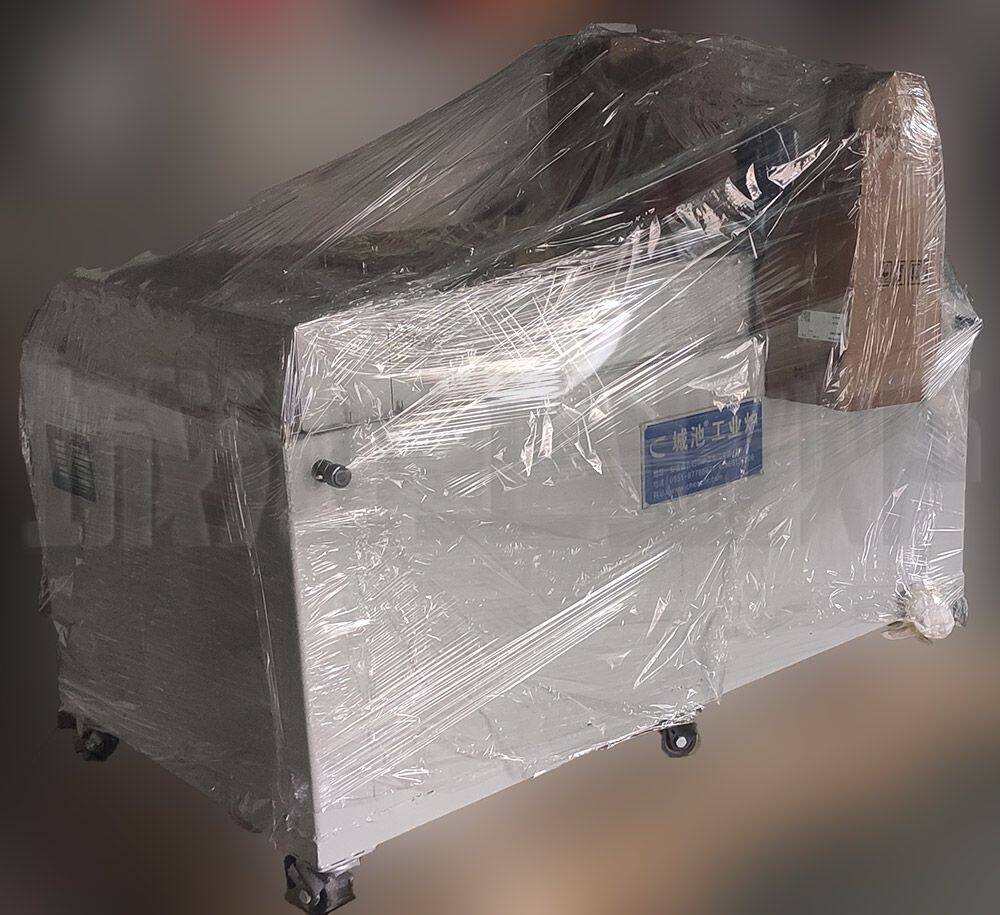

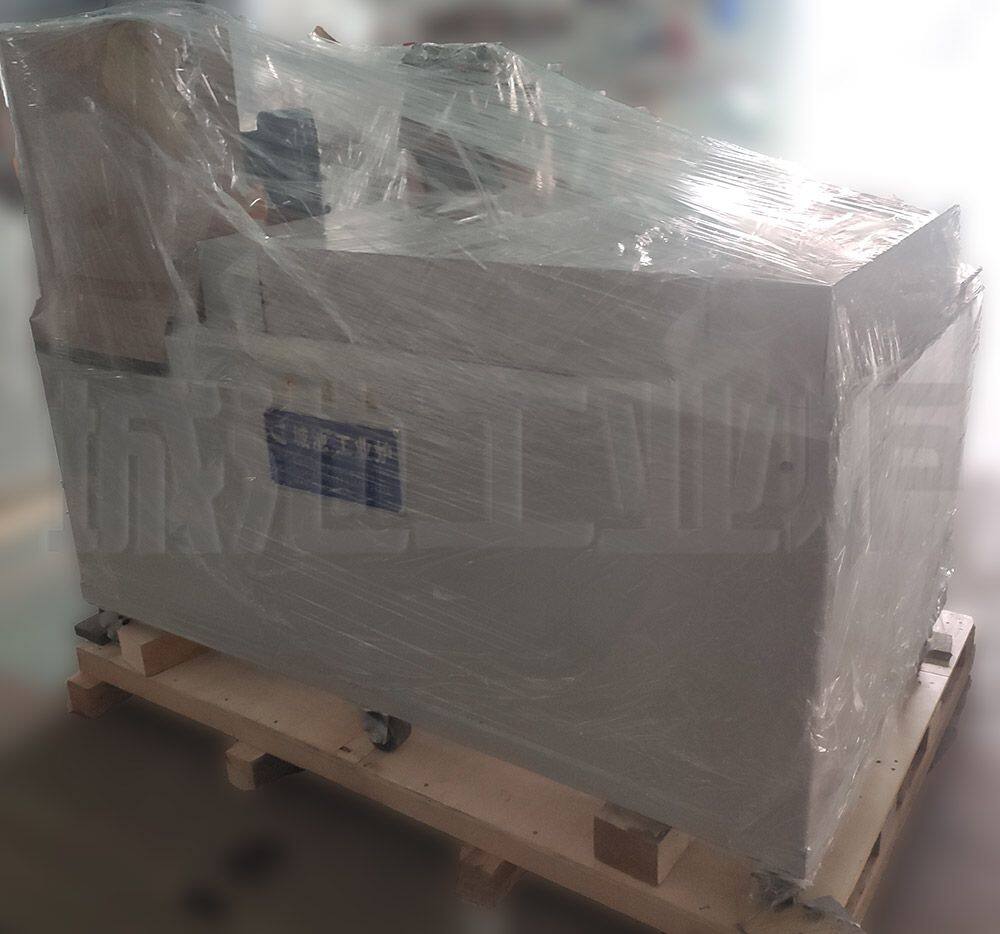

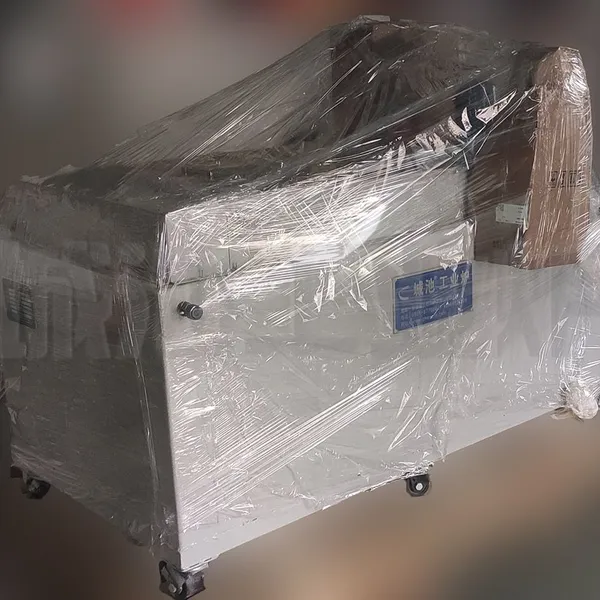

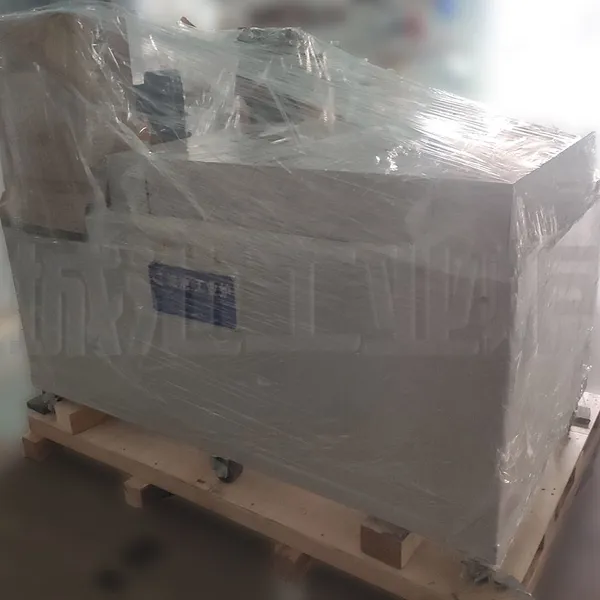

Quenching pool, quenching pool, water quenching pool packaged and shipped
This QWB water quenching tank, quenching water tank, and water quenching tank mixing device are installed on one side of the tank body in the length direction, using a top plug installation. Using propellers as medium thrusters to achieve high flow motion of the medium. The stirring device should ensure that the high-temperature medium on the liquid surface is effectively pushed to the bottom of the quenching pool, so that the water-based quenching medium can effectively participate in heat exchange, and ensure that the high-temperature water on the liquid surface can be quickly carried to the bottom of the quenching pool after the quenched parts are immersed. This not only avoids the occurrence of fires but also ensures that the temperature of the medium in various parts of the quenching pool is uniform.

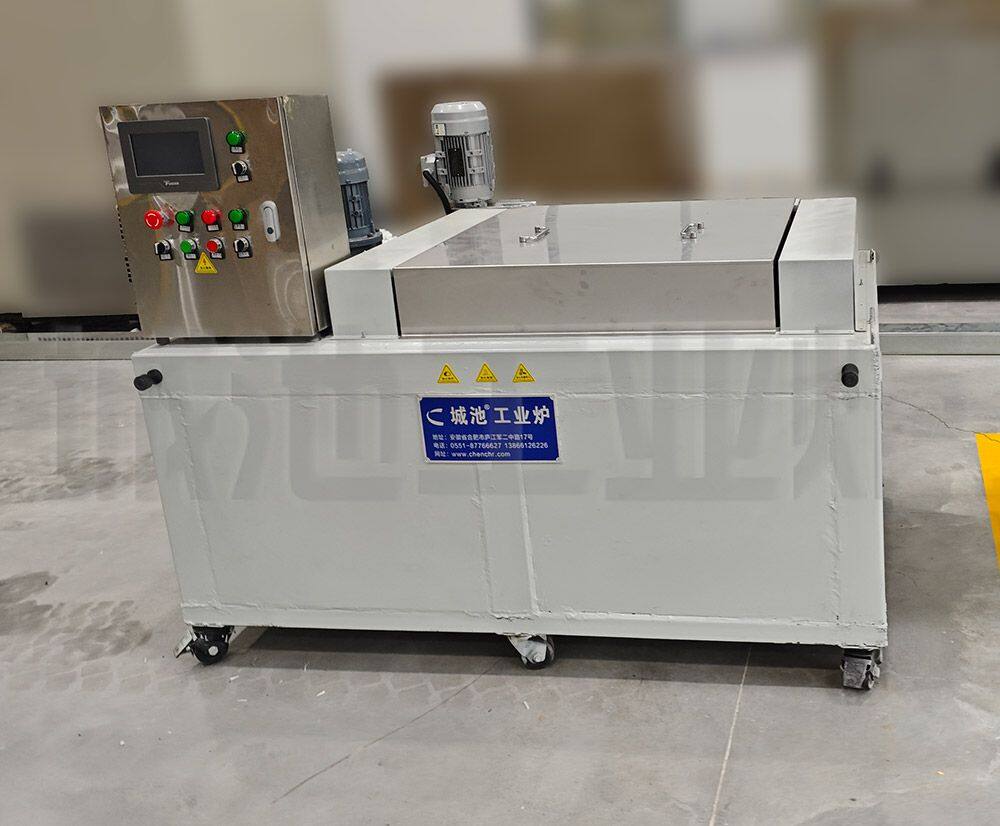

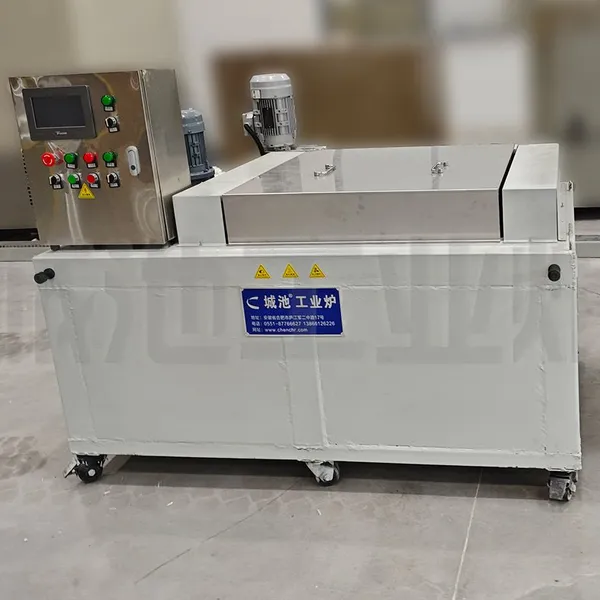

Quenching pool, quenching pool, water quenching pool packaged and shipped to customer site
This QWB water quenching tank is equipped with a compact and dedicated electric lifting mechanism that saves space, facilitating the placement of the quenching tank in the pit. The lifting mechanism consists of a motor, a reduction transmission mechanism, a running track, a heavy-duty lifting platform, etc. And move the workbench up and down along the track for lifting and lowering the workbench. The fixed material frame on the workbench is composed of steel and wire mesh or orifice plate, which can hold various workpieces. After quenching, the material frame should be able to ensure that the parts are completely detached from the liquid surface when lifted; The material frame and bracket are fixed by bolts or slots and can be disassembled; The material frame bracket is detachable, making it easy to clean the dirt at the bottom of the water tank.
