Laboratory swing quenching tank

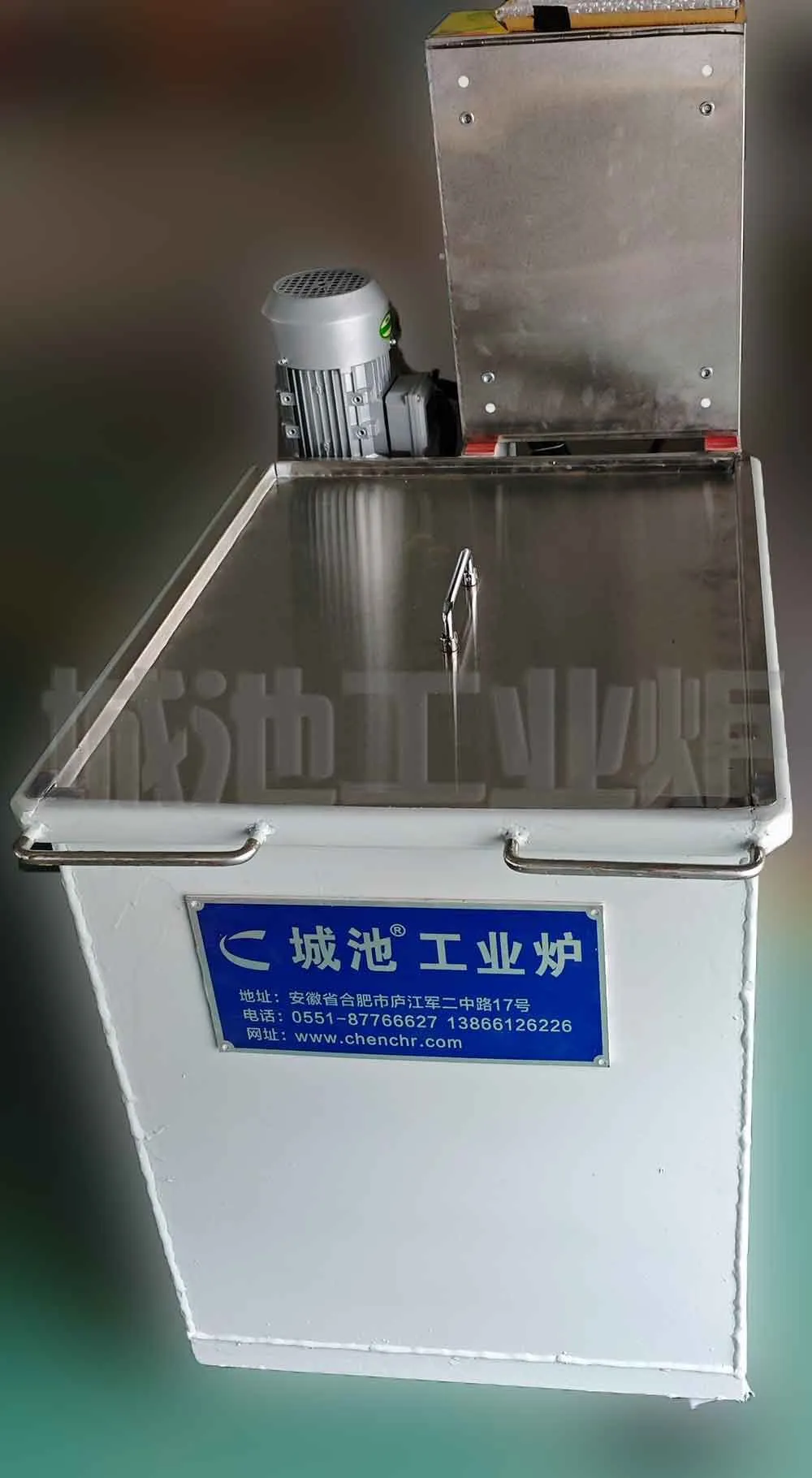

Chengchi brand EYQT laboratory swing quenching tank
The EYQT laboratory swing quenching tank,quenching oil tank,and quenching water tank of Chengchi brand are designed to improve the quenching cooling speed and uniformity of laboratory experiments,allowing workpieces to swing back and forth in the quenching solution. The function of converting motor rotation into mechanical reciprocating oscillation. Although the same quenching medium is used,completely different quenching and cooling effects can be obtained by adjusting the number of swings.
Chengchi brand EYQT laboratory swing quenching tank factory testing
The swing quenching tank of Chengchi brand EYQT laboratory is prone to accumulate at the bottom of the material frame and remain relatively stationary when quenching multiple workpieces at the same time. This can cause a rapid increase in the temperature of the surrounding medium,and the duration of the steam film formed by high temperature is longer,which hinders the heat exchange between the medium and the workpiece. The cooling time required for the workpiece becomes longer,which can easily cause uneven cooling,soft spots,and in severe cases,non martensitic transformation of bainite and pearlite.
The laboratory swing quenching tank,quenching oil tank,and quenching water tank are specially customized for this requirement. The workpiece swings back and forth during the quenching process,and the workpiece is fully in contact with the quenching oil,allowing for rapid cooling of the workpiece that needs to be quenched,resulting in finer grains and faster and more complete transformation of the structure from austenite to martensite,thereby improving the product quality of quenched workpieces.

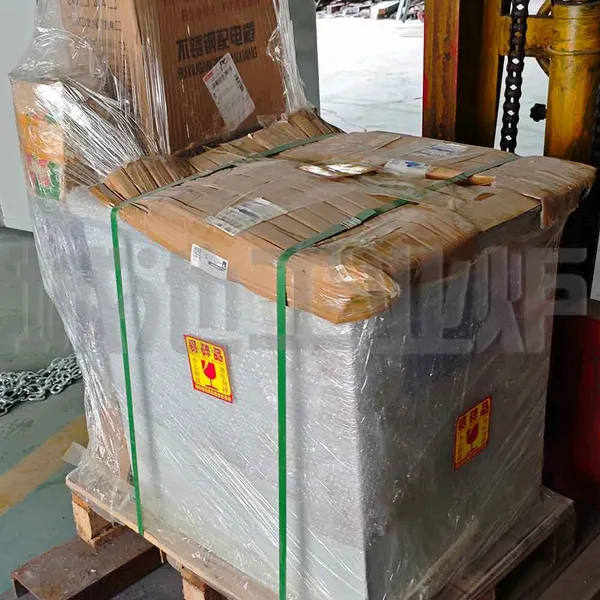

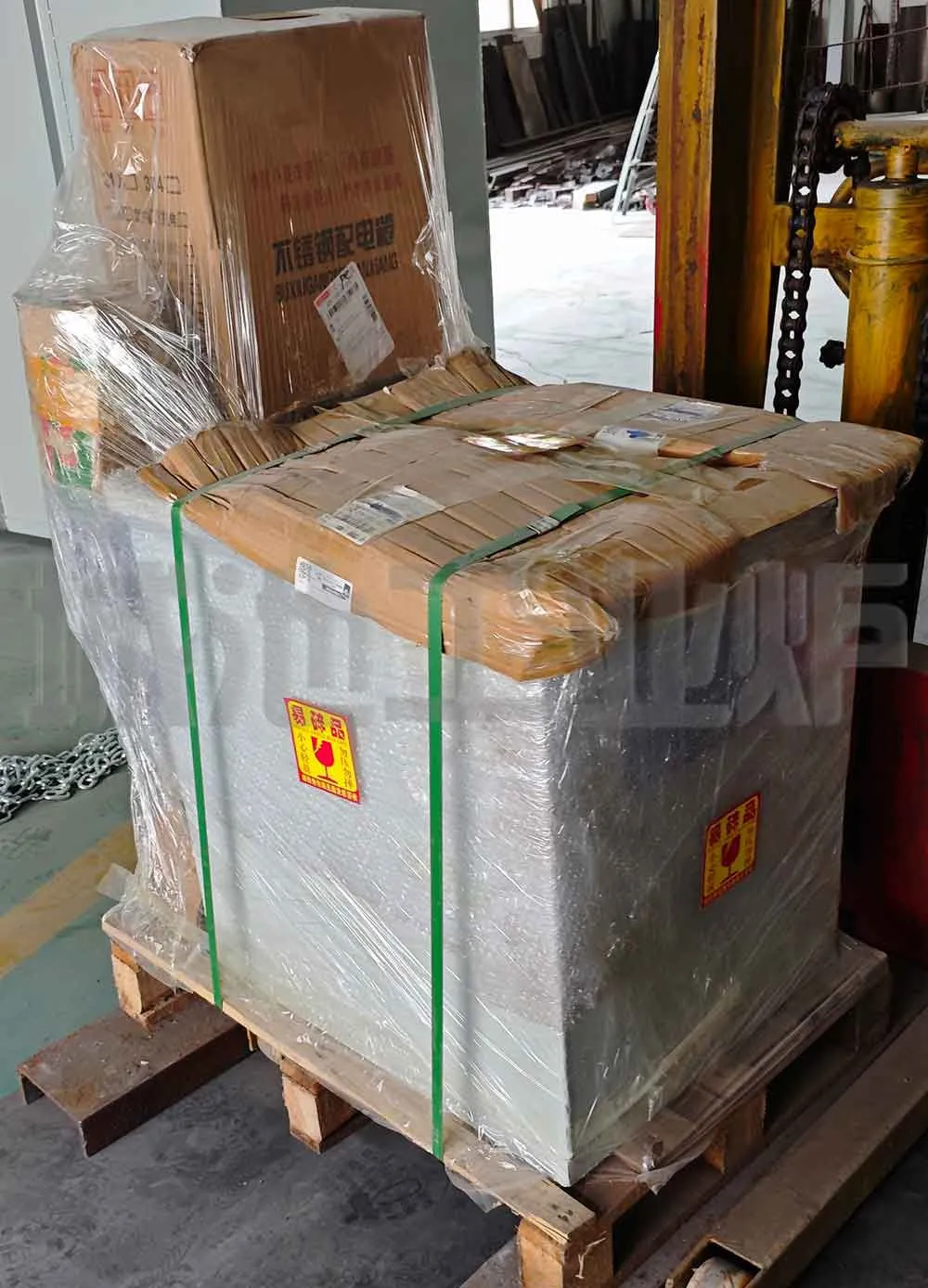

Chengchi brand EYQT laboratory swing quenching tank packaged and shipped
The laboratory swing quenching tank,quenching oil tank,and quenching water tank body are made of steel sections as the skeleton,and steel plates are tightly welded together. Special models are lined with aluminum silicate ceramic fiber insulation layer in the middle. The main components include tank body,circulation system,stirring system,cooling system,heating system (auxiliary heating),swing system,safety system,control system,etc. Special features can be customized according to the needs of each customer.
The laboratory swing quenching tank,quenching oil tank,and quenching water tank produced by Chengchi Industrial Furnace have a high degree of automation,are sturdy and durable,easy to use,have a simple structure,reliable performance,and diverse uses,and are deeply trusted and loved by users. Welcome to call or write to inquire.

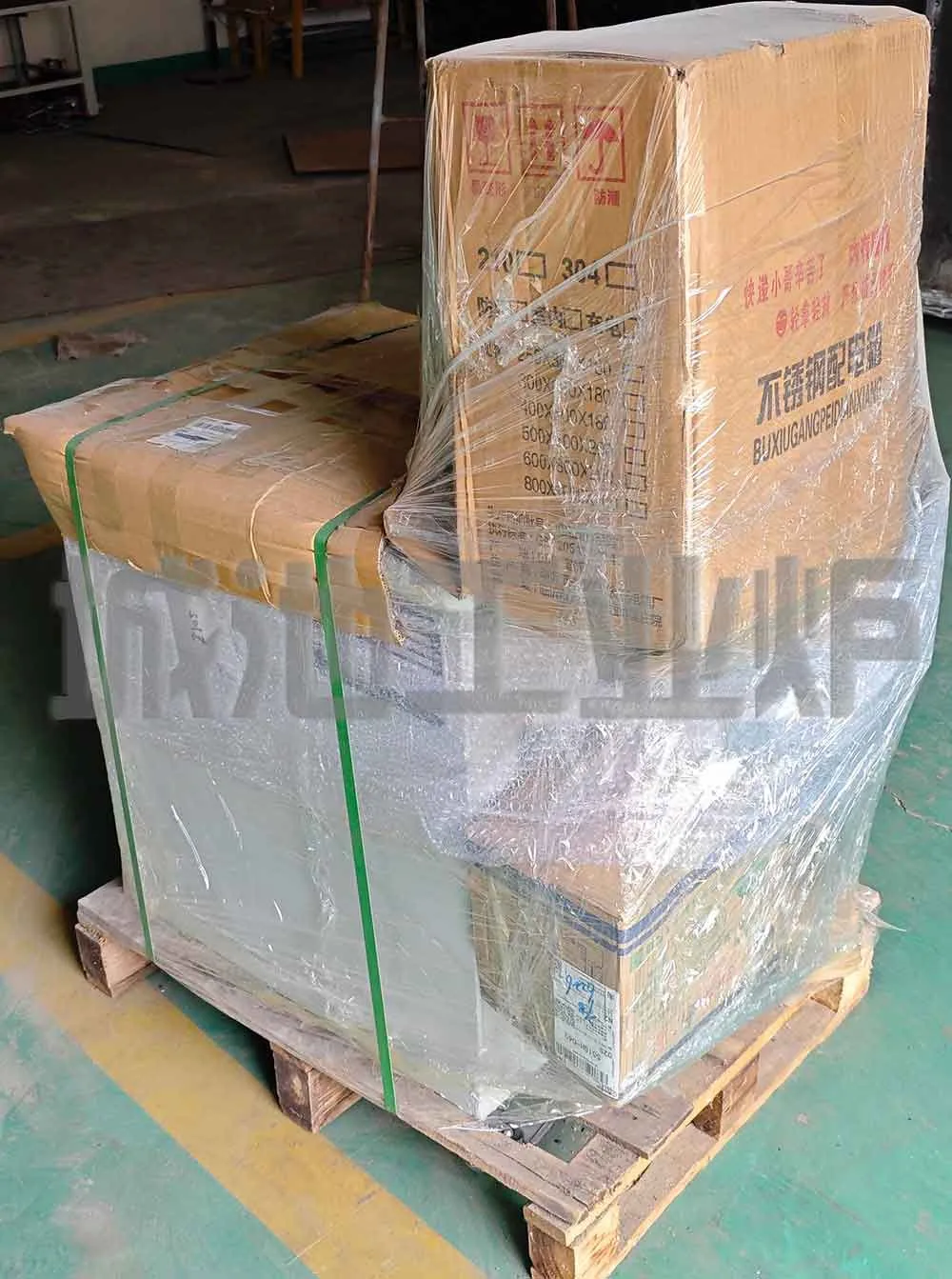

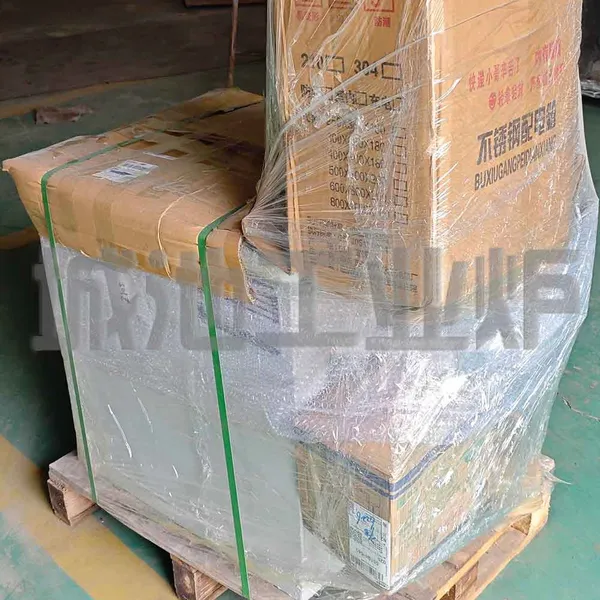

Chengchi brand EYQT laboratory swing quenching tank packaged and shipped
