Product Overview:

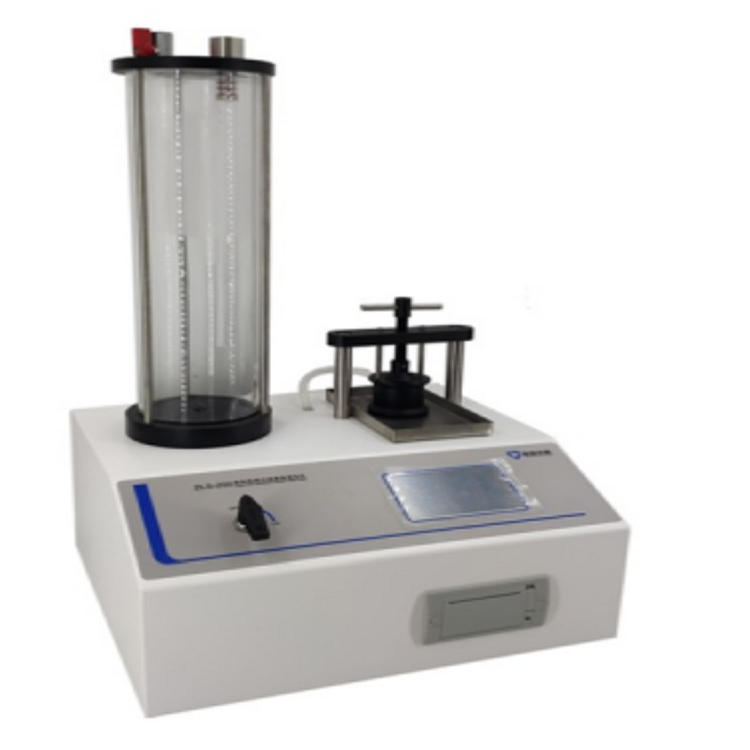

      This instrument is suitable for measuring the water filtration speed of filter papers and filter boards with a certain wet strength, but it cannot be used for measuring the water filtration speed of filter papers and filter boards that have been processed with wax or whose surfaces are non - hydrophilic or incompletely hydrophilic.

Compliance Standards:

      GB/T 10340 - 2008

Technical Parameters:
1. Measuring range of filter paper thickness: 0.10～3.00mm
2. Test area: 10±0.05cm²
3. Inner diameter of the clamping ring: Ф35.7mm
4. Outer diameter of the clamping ring: Ф50mm
5. Data display: Touch screen
6. Water filtration volume: 50ml/100ml (Other volumes can be set by yourself)
7. Result processing: Automatic calculation of results with dedicated software
8. Result storage: Equipped with a micro - printer, and the results can be printed
9. Power supply: 220V  50Hz



Product Tags: GBT10340 - 2008 , Paper filter , Filter paperboard water filtration tester , Filter paper water filtration testing machine , Paper water filtration speed tester
