Product Overview:

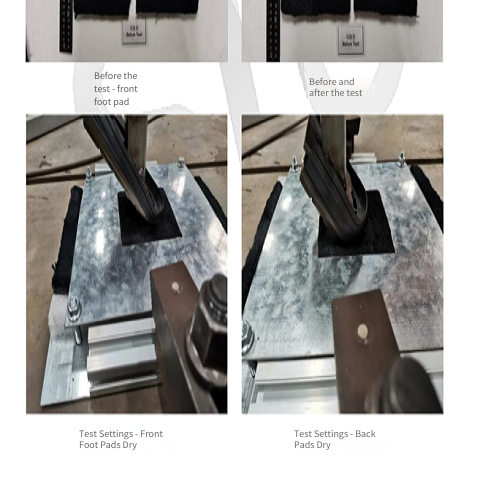

      This device is used for the wear resistance test of car floor mats. Using the sole as the friction medium, with a pressure of 5.6Kg on the heel, the sample is rubbed back and forth at a 45° angle. After reaching the set value, check whether the tufts of the sample are pulled out and whether the substrate is exposed to determine whether the product is qualified.

According to the Standard:

      JF07 - 1005 4.3.11 TL52611/PV3934 - 5

Technical Parameters:

1. Test station: 1 PCS

2. Heel angle of the test device: 45°

3. Load weight: 5.6KG (weight + fixture + heel)

4. Sample installation fixture: The opening size is 100*100MM as shown in the figure.

5. Tighten with wing screws at the four corners.

6. Control method: 4.5 - inch touch - screen control and display

7. The software has a power - off memory function.

8. Requirements for the heel material:

9. The width of the rubber heel of the friction material is 75±5mm.

10. The thickness is 7±2mm.

11. Shore hardness A80 + 10/51.2

12. Sample backing: Polyurethane foam with a pressure of 60~80KG/cubic meter

13. Machine size approximately: 700MM*600MM*500MM

14. Power supply: 220AC



Product Tags: Automobile floor mat abrasion resistance tester , Automobile floor mat abrasion resistance testing machine , Automobile floor mat abrasion resistance , Floor mat abrasion resistance testing machine , JF07 - 1005
