Manufacturer of steel dam gates and hinge dams with preferential prices

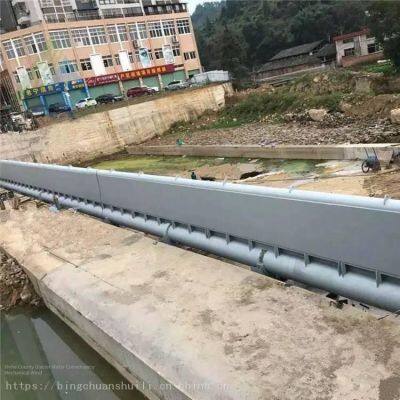

The hydraulic steel dam is one of the large-scale equipment such as various steel dams, hydraulic dams, hydraulic flap gates, and landscape dams produced by Bingchuan Water Conservancy. The core component of the hydraulic dam is the hydraulic system. The hydraulic systems of our company, Hebei Yangyu Hydraulic Machinery Co., Ltd., are all specially customized and use imported sealing rings. This ensures that the hydraulic system does not corrode during long-term underwater operation, and the dam can be raised and lowered freely, ensuring the safe operation of the entire dam surface.
The hydraulic dam has a strong flood discharge capacity. After the movable dam surface is laid down, it is only about 20 cm higher than the foundation platform, achieving the same flood discharge effect as a damless situation. Even a once-in-a-thousand-year extraordinary flood will not cause damage to the dam body. In the case of no electricity and no power source, the dam can be automatically lowered. The dam can also be freely raised and lowered even when it is empty. You only need to manually open the manual valve of the oil circuit system.
This function is of great significance for the safe flood discharge of some rivers with special flood discharge requirements under extremely bad weather conditions such as heavy rain. The safety controllability is high. When the flood water level exceeds a certain height above the dam crest (set in advance), the pumping station will start to work, causing the surface of the hydraulic movable dam to descend to ensure flood discharge safety. The hydraulic dam can adjust the water retaining height arbitrarily according to the water storage capacity of the river. At the same time, it can also realize the arbitrary combination or synchronous adjustment of single or multiple dam fans, reducing the scouring of the downstream by the water flow.
The hydraulic pipelines are arranged downstream for easy maintenance. Other components are all standard configurations, easy to replace and with low costs. After the dam surface is raised, a stable supporting pier dam structure is formed. The mechanical structure is scientific, and the ability to resist flood impact is extremely strong. When the flood overflow exceeds 30 cm, it will not have an impact on the dam body. It is a movable dam that will not be washed away by floods, with a service life of more than 50 years.
Our factory's leading products:
1. Screw hoists from 3T - 100T; Hand - push screw hoists with locks; Hand - wheel hoists; QLP flat - push screw hoists from 0.5 - 2T; QLF three - proof fully - enclosed magnetic lock screw hoists from 0.3T - 30T; QLC side - shake screw hoists from 0.5T - 2T; QL hand - operated screw hoists; Dual - purpose (manual and electric) screw hoists from 3T - 100T (single and double - hanging types); Swing hoists; Electric hoists; QLZ direct - connected screw hoists; QL - SD double - hanging point dual - purpose (manual and electric) screw hoists, hydraulic hoists, etc., more than 20 kinds in total.
2. QPQ - type, QPK - type, QPG - type, QPT - type, QHQ - type winch hoists (single and double - hanging types); Double - hanging point winch hoists; Fixed winch hoists; Mobile winch hoists; Arc - gate winch hoists; Mobile trolley - type winch hoists; Gantry winch hoists, etc.
3. Cast - iron gates; High - pressure cast - iron gates; Double - sealed cast - iron gates; Assembled cast - iron gates; Flat - arched cast - iron gates; Copper - inlaid square and round cast - iron gates; Integrated machine - gate cast - iron gates; Adjustable weir gates; Rotating gates; Sector gates; Screw gates; Insertion plate gates, etc., more than 20 types of gates.
4. Steel gates; Rolling steel gates; Sliding steel gates; Stop - log gates; Arc gates; Integrated machine - gate steel gates; Flat - sliding gates; Flat - fixed - wheel steel gates; Steel - composite gates; Hot - sprayed zinc steel gates; Stainless - steel gates; Flap gates, etc., various steel gates.
5. HQN rotary grid sewage removers; HG reverse - fishing grid sewage removers; HGS rotary grid sewage removers; ZD grab - type grid sewage removers, HLG high - chain grid sewage removers; SPW screw presses; LWS flat grids, etc. Cast various materials according to customer needs.
6. Cast - iron flap gates (also called tide gates), square cast - iron flap gates, steel flap gates; Round cast - iron flap gates, composite - material flap gates; Fiberglass flap gates; Stainless - steel flap gates; Side - turning flap gates; Floating - box flap gates; Integral folding flap gates, etc., flap gates of various materials.
7. Rubber water - stop strips such as types 651, 652, 653, water - swelling types, etc. The water - stop rubber includes P60, P50, P45, P35 and various internal and external corners, flat plates, bridge bearings, etc. It can also be customized into various types of rubber products according to user requirements.
Steel dam hydraulic dam/Hydraulic hinge dam (steel gate) uses steel plate as the base material, adopts rubber for water stop, and the anti - corrosion method is sandblasting for rust removal and hot - spraying zinc on the surface. The steel gate has the characteristics of reasonable and firm structure, strong wear and corrosion resistance, reliable performance; convenient installation, adjustment, use and maintenance. The steel gate is a commonly used water - retaining and water - stopping device in water supply and drainage engineering, water conservancy and hydropower engineering, and is composed of components such as door frame, gate plate, sealing ring and adjustable wedge - shaped pressing block. After long - term use and wear of the steel gate, its sealing surface can be adjusted through the wedge - shaped pressing block to ensure normal operation.
