Help CenterMeizhou Steel Dam Gate, Hydraulic Flap Dam for Water Conservancy Projects, Hydraulic Dam for Landscape Rivers, Branded Product
Related Products
-
Principle and Structure of Cast Iron Gate. the Working Principle of Cast Iron GateUS$ 1323.08 - 1353.85MOQ: 1 Set -
Integrated Machine and Gate Steel Gate - Manufacturer of Steel Gates for the Forebay of Yueyang Hydropower StationUS$ 1323.08 - 1353.85MOQ: 1 Set
-
Steel Gates for Kunming Hydropower Station, Steel Structure Gates for Kunming Hydropower StationUS$ 1323.08 - 1353.85MOQ: 1 Set
-
Taizhou Manufacturer Sales of Bottom Shaft Hydraulic Steel Dam Gates and Cast Iron Square GatesUS$ 1230.77 - 1353.85MOQ: 1 Unit
-
Hydraulic Steel Dam, Discounted Price for River - Blocking Steel Dam GatesUS$ 1230.77 - 1353.85MOQ: 1 Unit

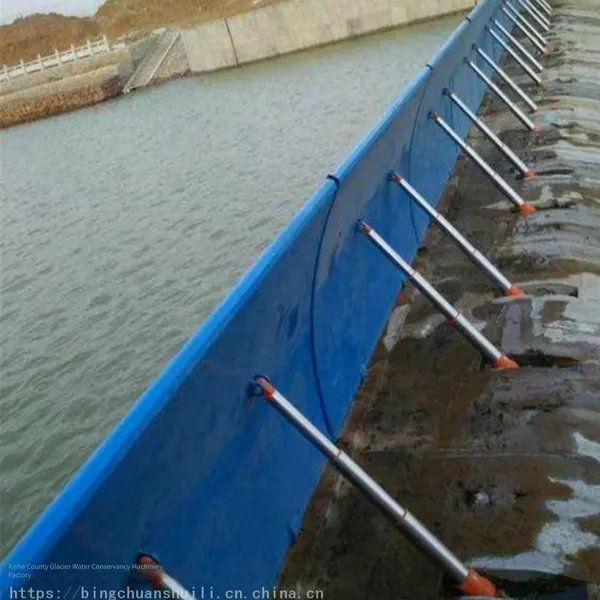

Steel flap gates are actually a type of gate. They are basically made of steel materials, and the production processes are very advanced. This type of gate can automatically control the water level. The working principle is based on lever balance and rotation. The gate uses the balance between water force and its own weight, and the using effect is very obvious. Steel flap gates are composed of many different parts, including connecting rods, legs, panels, rollers and other components.
Flap gates: For rivers and landscape gates, economic benefits can be obtained by considering local hydrological factors and combining with installed capacity.
1. The principle and function are delicate, the structure is simple, the manufacturing is convenient, and the operation is safe.
2. The construction is simple and the cost is reasonable. The investment is only about 1/2 of that of conventional gates.
3. It can open and close automatically, the water level control is accurate, and the operation stability is good. It is convenient and safe to manage, saving manpower, time and effort.
4. The gate body is a precast reinforced concrete structure, and only the supporting part is a metal structure. It is convenient to maintain and the cost is low.
5. Since it can accurately and automatically regulate the water level, it has unique advantages in the rational use and utilization of water resources in the current situation of water shortage.
6. The hydraulic system can be operated to open and close the gate at any water level. And even without starting the hydraulic system, the gate can still open and close normally when the corresponding water level is reached.
7. The hydraulic control system can be operated before the flood peak in the flood season to adjust the reservoir water level for pre - discharge and ensure the safety of the reservoir area.
8. It effectively solves a series of problems of hydraulic self - controlled flap gates, such as being easily stuck by debris and inconvenient to maintain.

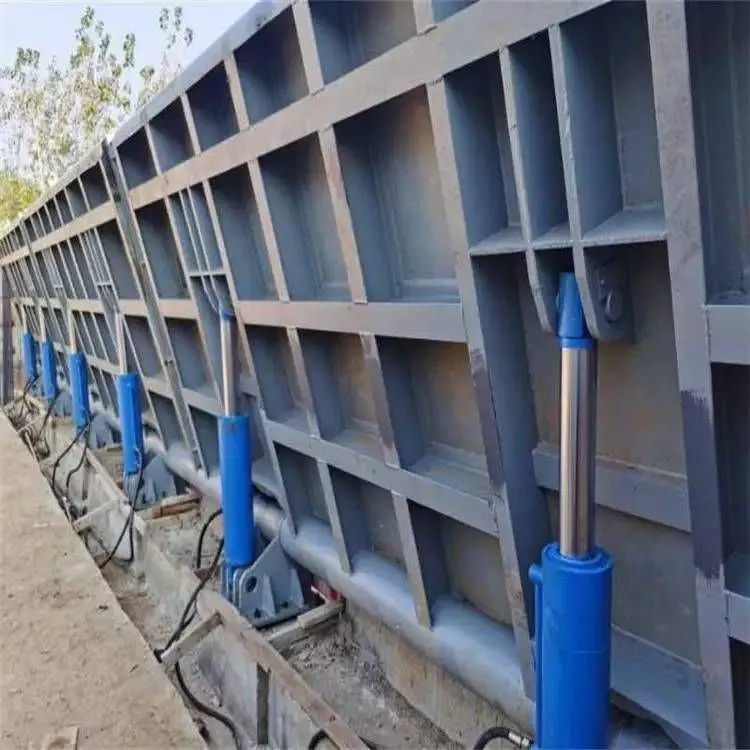

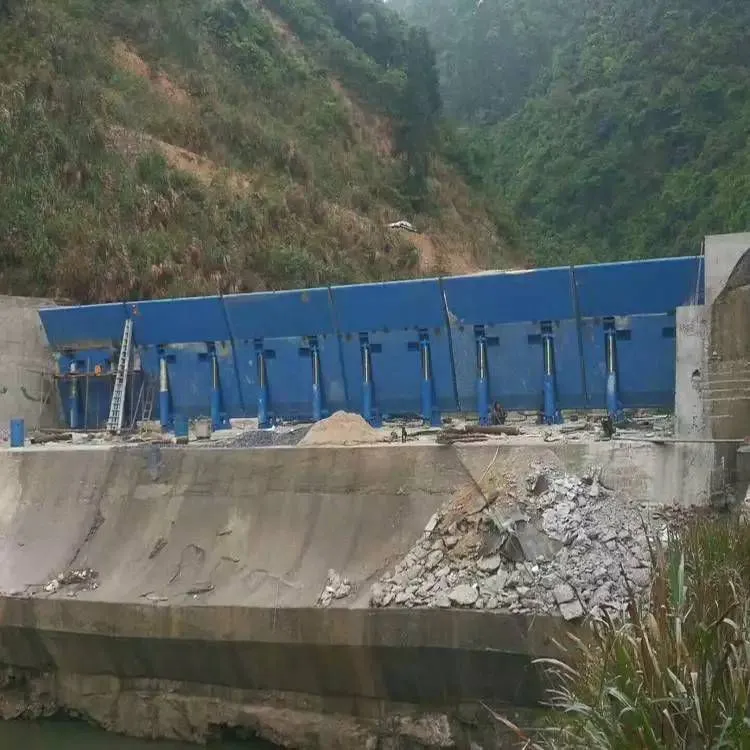

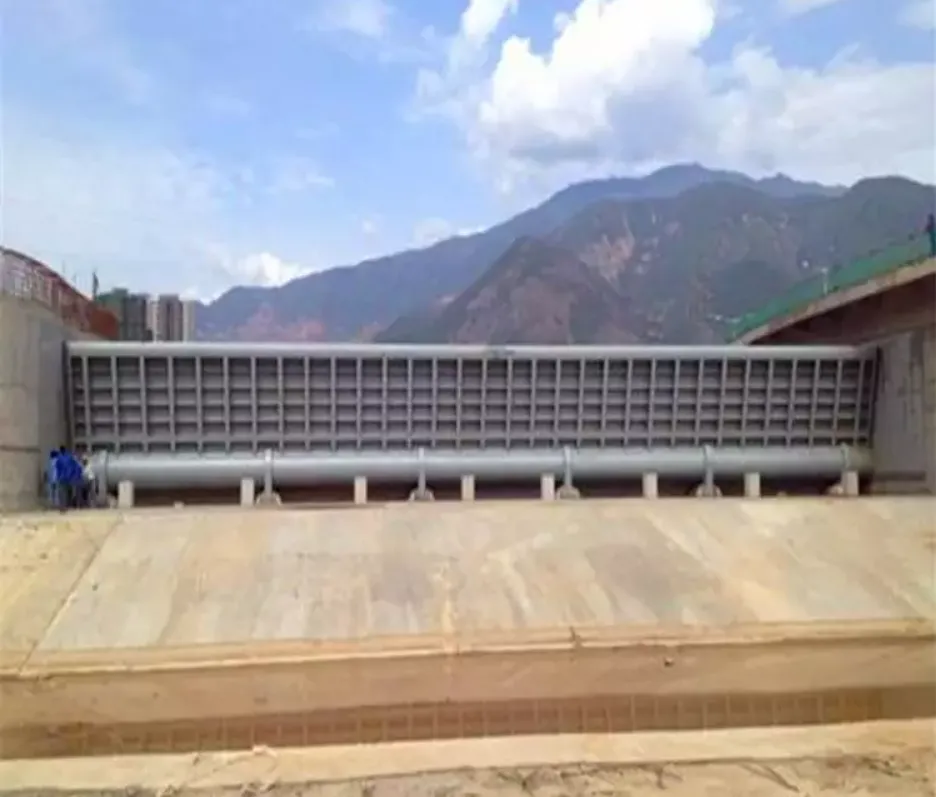

1. The hydraulic lifting dam has a large span and a simple structure, which is easy to build.
2. The hydraulic system of the hydraulic lifting dam operates flexibly and can be controlled by a manual switch.
3. The hydraulic lifting dam has superior low - head hydraulic conditions. This dam can basically maintain the original riverbed, allowing floods, upstream sediment, pebbles and floating objects to pass smoothly without blocking water. Compared with traditional sluice gates and similar rubber dams, it has a large flow capacity and discharge volume. It is especially suitable for rivers in areas with a lot of sand, stones, trees and bamboos where rubber dams are not suitable to be built. It can adjust the dam height for overflow and control the upstream water level and discharge volume.
