Help Center4-20mA Residual Chlorine Meter Online Chlorine Analyzer LCD Display OEM Sensor for Drinking Water Pool Waste Water
Product Spotlights
Fast response
Wide meauring range
high resistance to interference
Related Products
-
CUS4000 Modbus Online Turbidity Sensor Online Turbidity Meter for Sewage Plant Chemical Food Industries 0.01-120000mg/lNegotiableMOQ: 1 Piece -
Multi-Parameter Water Quality Transmitter RS485 or 4-20ma PH ORP Sensor Turbidity DO Sensor Conductivity Sensor Probe ElectrodeNegotiableMOQ: 1 Piece
-
AT4000 Mutiparameter Water Quality Meter pH Sensor ORP Conductivity Dissolved Oxygen Chlorine Turbidity Sensor 4-20ma Water InstrumentUS$ 1000MOQ: 1 Piece
-
AT4000 Mutiparameter Water Quality Meter pH Sensor Online pH ElectrodeUS$ 1000MOQ: 1 Piece
-
IP68 NEMA6P Dissolved Oxygen Sensor 0-20mg/l DO Sensor 0-20PPM for Boil Water Liquid Analysis Instruments Oxygen AnalyzersNegotiableMOQ: 1 Piece
1.Core Functions:
（1）Multi-Parameter Compatibility: compatible with common electrodes such as pH, conductivity, ORP, residual chlorine, turbidity, and dissolved oxygen, enabling one device for multiple uses.
（2）Intelligent Range Selection ：The device automatically matches and switches to the optimal measurement range based on real-time water quality conditions, without manual intervention. This offers two major advantages:
Enhanced Accuracy: Prevents measurement errors caused by improper manual range selection.
Simplified Operation: Significantly reduces operational complexity and improves detection efficiency.
（3）Data Integration & Communication:
Real-time remote monitoring of water quality data.
Automatic recording and storage of data.
Provides a complete data chain for subsequent water quality analysis, process optimization, and data traceability.
Interface: Supports RS485 digital interface.
Protocol: Uses the industrial standard MODBUS-RTU communication protocol.
Capabilities: Can be easily connected to computers, PLCs, or industrial automation control systems to achieve:
2.Application Value: Widely applicable in scenarios requiring collaborative, precise, and continuous monitoring of multiple key water quality physicochemical indicators, such as wastewater treatment, industrial process control, aquaculture, and environmental monitoring.
3.Technical specifications:

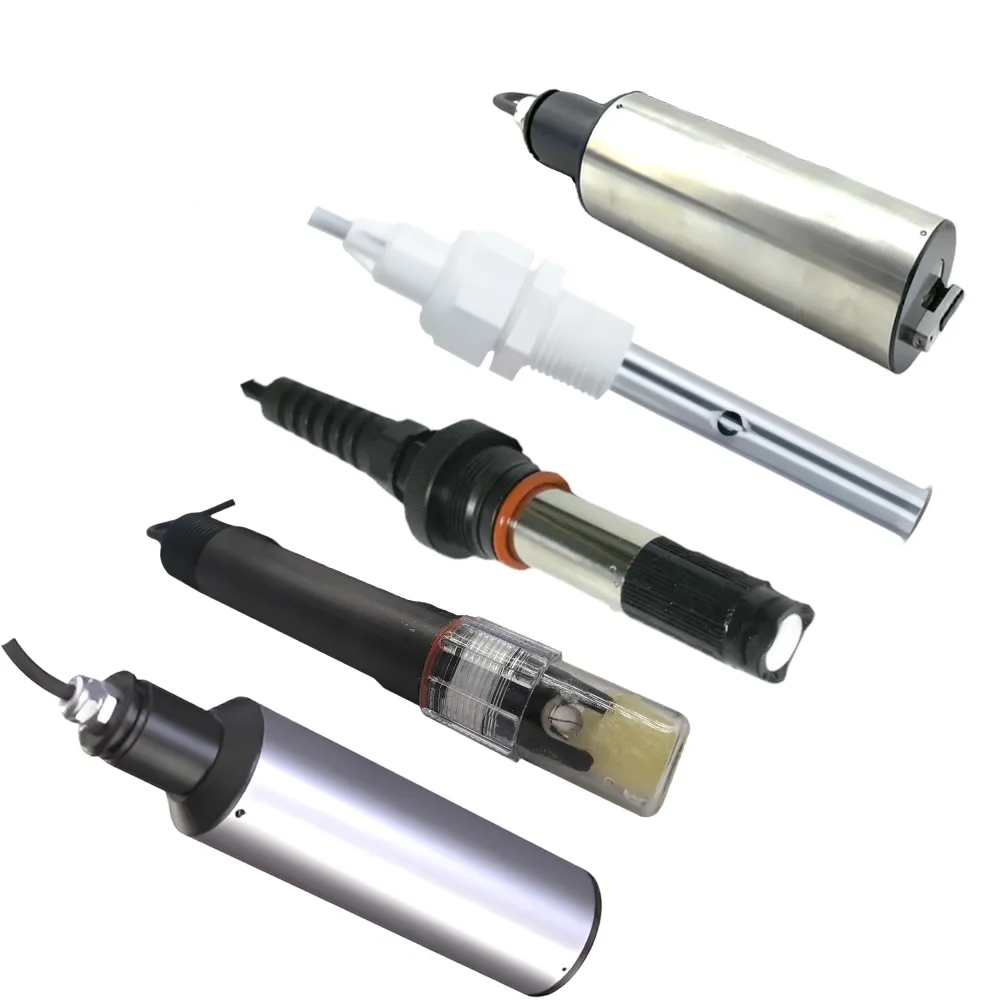

Electrobe(probe)
| Item | PH ORP probe | Conductivity | Dissolved oxygen | Turbidity meter | Resdual chorine |
| Range |
pH:0-14 ORP:-1000-1000mV |
0.02-20μs/cm 0.02-200μs/cm |
0-20mg/L 0-20PPm(optional) |
0-100-4000NTU 0.01-120000mg/L |
0-10mg/L 0-20mg/L |
| Accuracy |
pH:0.5 ORP:3mV |
Class 1.5 Class 2.0 |
3% | ||
| Material | PP PC ABS glass | 316L | 316L | 316+PVC | 316L |
| Cable length | standard 5m,custom | standard 5m,custom | standard 5m,custom | standard 5m,custom | standard 3m,custom |
| Amb. |
0-60℃ （self-compensation） |
-40-85℃ | -20-70℃ | -20-70℃ | -20-70℃ |
Transmitter
| Resolution | 0.01mg/L 0.1% 1hPa 0.1℃ |
| Accuracy | 1.5%FS |
| Temperature Measurement Type | NTC10K / PT1000, Auto (A) / Manual (H) |
| Ambient Temperature | -20 to 60 °C |
| Compensation Accuracy | 0.5℃ |
| Maximum Loop Resistance | 750 Ω |
| Protection level |
IP65 |
| Output signal | 4-20mA+RS485 |
| Communication protocal | Modbus-RTU |
| Power supply | AC220V±10% 50Hz/60Hz |
4.Contact us for model selection.
