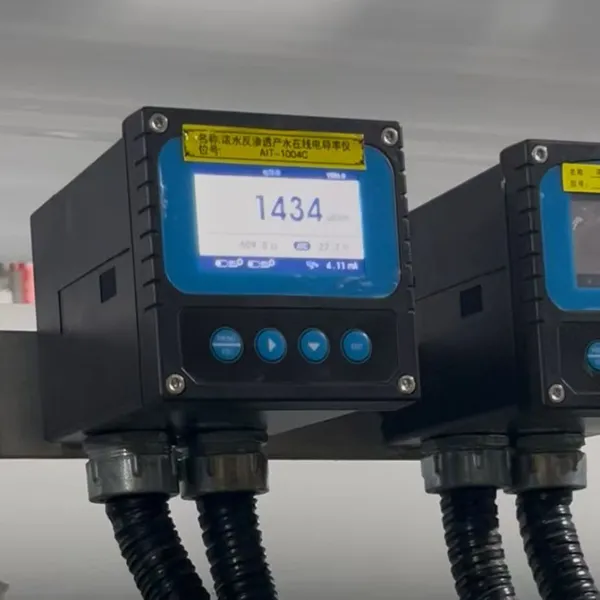

Help CenterAT4000 Mutiparameter Water Quality Meter pH Sensor Online pH Electrode
Related Products
-
Multi-Parameter Water Quality Transmitter RS485 or 4-20ma PH ORP Sensor Turbidity DO Sensor Conductivity Sensor Probe ElectrodeNegotiableMOQ: 1 Piece -
AT4000 Mutiparameter Water Quality Meter pH Sensor ORP Conductivity Dissolved Oxygen Chlorine Turbidity Sensor 4-20ma Water InstrumentUS$ 1000MOQ: 1 Piece
-
Kyue Monocrystalline Silicon Stable Accurate 4-20ma HART Differential Pressure Sensor Transmitter With Site Display Explosion ProofUS$ 335 - 350MOQ: 1 Unit
-
Kyue Ultrasonic Level Sensor Non Contact Ultrasonic Water Tank Level Transmitter Liquid Level TransducerUS$ 350 - 455MOQ: 1 Piece
-
CE Kyue Digital Water Wastewater Flow Meter 4-20ma Rs485 Hart Electromagnetic Flowmeter DN50 DN300NegotiableMOQ: 1 Piece
1.Core Functions:
（1）Multi-Parameter Compatibility: compatible with common electrodes such as pH, conductivity, ORP, residual chlorine, turbidity, and dissolved oxygen, enabling one device for multiple uses.
（2）Intelligent Range Selection ：The device automatically matches and switches to the optimal measurement range based on real-time water quality conditions, without manual intervention. This offers two major advantages:
Enhanced Accuracy: Prevents measurement errors caused by improper manual range selection.
Simplified Operation: Significantly reduces operational complexity and improves detection efficiency.
Real-time remote monitoring of water quality data.
Automatic recording and storage of data.
Provides a complete data chain for subsequent water quality analysis, process optimization, and data traceability.
Interface: Supports RS485 digital interface.
Protocol: Uses the industrial standard MODBUS-RTU communication protocol.
Capabilities: Can be easily connected to computers, PLCs, or industrial automation control systems to achieve:
（3）Data Integration & Communication:
2.Application Value: Widely applicable in scenarios requiring collaborative, precise, and continuous monitoring of multiple key water quality physicochemical indicators, such as wastewater treatment, industrial process control, aquaculture, and environmental monitoring.
3.Technical specifications:
Electrobe(probe)
| Item | PH ORP probe | Conductivity | Dissolved oxygen | Turbidity meter | Resdual chorine |
| Range | pH:0-14 ORP:-1000-1000mV | 0.02-20μs/cm 0.02-200μs/cm | 0-20mg/L 0-20PPm(optional) | 0-100-4000NTU 0.01-120000mg/L | 0-10mg/L 0-20mg/L |
| Accuracy | pH:0.5 ORP:3mV | Class 1.5 Class 2.0 | 3% | ||
| Material | PP PC ABS glass | 316L | 316L | 316+PVC | 316L |
| Cable length | standard 5m,custom | standard 5m,custom | standard 5m,custom | standard 5m,custom | standard 3m,custom |
| Amb. | 0-60℃ （self-compensation） | -40-85℃ | -20-70℃ | -20-70℃ | -20-70℃ |
Transmitter
| Resolution | 0.01mg/L 0.1% 1hPa 0.1℃ |
| Accuracy | 1.5%FS |
| Temperature Measurement Type | NTC10K / PT1000, Auto (A) / Manual (H) |
| Ambient Temperature | -20 to 60 °C |
| Compensation Accuracy | 0.5℃ |
| Maximum Loop Resistance | 750 Ω |
| Protection level | IP65 |
| Output signal | 4-20mA+RS485 |
| Communication protocal | Modbus-RTU |
| Power supply | AC220V±10% 50Hz/60Hz |
4.Contact us for model selection.
