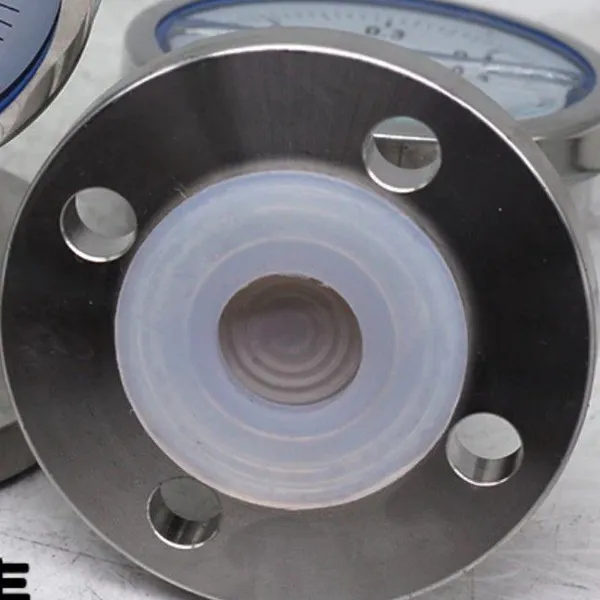

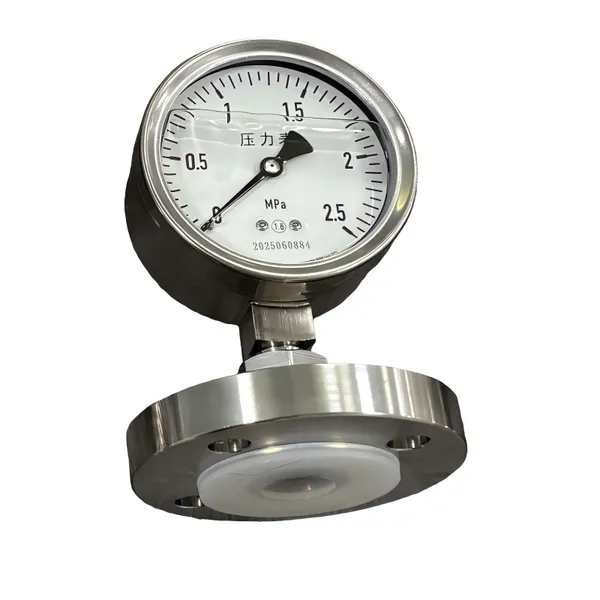

Help CenterDiaphragm Pressure Gauge Industrial SS316 PTFE Flange 100mm Diaphragm Seal Corrosion Proof Pressure Gauge
Product Spotlights
Related Products
-
Kyue Monocrystalline Silicon Stable Accurate 4-20ma HART Differential Pressure Sensor Transmitter With Site Display Explosion ProofUS$ 335 - 350MOQ: 1 Unit -
Kyue OEM Automation G1/4 Thread M20 Portable LCD Water Oil Hydraulic Industrial Stainless Steel Digital Pressure Gauge on Site ReadingNegotiableMOQ: 1 Piece
-
High Temperature 4-20mA Output 304SS/316LSS 0.2% Accuracy Hydraulic Liquid Steam Pressure TransmitterNegotiableMOQ: 1 Piece
-
Kyue Industrial Oil Pressure Sensor 4-20mA Pressure Hammer Union Pressure Transmitter Facturing TruckNegotiableMOQ: 1 Piece
-
Low Pressure Switch Diaphragm Pressure Switch Kyue H100 SERIES for PumpsUS$ 150 - 155MOQ: 1 Piece
-
Product overview
The diaphragm pressure gauge is specifically designed for measuring pressure of non-viscous, non-crystallizing gaseous and liquid media. The diaphragm sensing element effectively isolates the measured medium, providing excellent corrosion resistance and stable long-term performance. Its compact structure, reliable operation, and high sensitivity make it an ideal choice for various industrial applications.
2. Technical Specifications
| Parameter | Details |
|---|---|
| Accuracy Grade | 2.5 |
| Nominal Diameter | Φ100mm, Φ150mm |
| Measuring Range | 0 ~ 0.06 MPa …… 2.5 MPa |
| Ambient Temperature | -40℃ ~ +70℃ |
| Medium Temperature | -40℃ ~ +100℃ |
| Temperature Effect | ≤ ±0.04% / ℃ (when deviating from 20±5℃) |
| Process Connection | M20×1.5 (male) / Flange (optional) |
| Wetted Parts Material | 316 SS / PTFE / Tantalum (customizable) |
| Case Material | 304 SS / Die-cast Aluminum |
| Dial | Aluminum, white background with black markings |
| Window | Safety glass |
| Protection Class | IP64 |
| Mounting Position | Vertical |
| Compliance Standard | JB/T 5491-2005 |
3. Applications
The diaphragm pressure gauge is widely used in industries requiring reliable pressure measurement for non-viscous or slightly corrosive media:
Petroleum & Chemical – Pressure monitoring in pipelines and processing equipment
Pharmaceutical & Food – Sanitary applications requiring medium isolation
Water Treatment – Filter pressure monitoring and pump systems
Machinery & Metallurgy – Hydraulic and pneumatic systems
Environmental Protection – Effluent treatment and monitoring stations
Note: For viscous, crystallizing, or highly corrosive media, optional PTFE or special alloy wetted parts are recommended.
