The A0 Size Flat File Cabinet from Luoyang Hengna Office Furniture Co., Ltd. is engineered specifically to meet the rigorous demands of professional engineering firms. This is not just a storage unit; it's a purpose-built piece of equipment designed to safeguard your large-format drawings, maps, and plans from damage, dust, and disorganization.
Whether you are managing a bustling office in Monterrey or a quiet studio in Guadalajara, this 5-drawer steel plan chest offers the heavy-duty construction and intelligent design features necessary to keep your projects on track. From its robust SPCC cold-rolled steel body to its thoughtfully engineered silent roller mechanisms and convenient KD (Knock-Down) structure for shipping, every aspect of this cabinet has been optimized for the professional user.

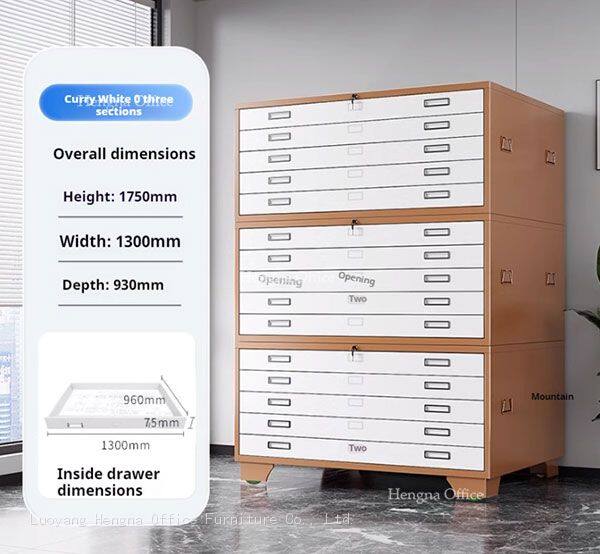

Key Specifications at a Glance
To help you understand the scale and capacity of this unit, here are the core specifications based on our product data. This cabinet is designed to house A0 and smaller drawings with ease.
| Specification | Measurement (mm) | Measurement (inches) | Details |
|---|---|---|---|
| Product Code | No. 1 double section | - | Designed for large-format storage |
| Overall Width | 1300 mm | ~51.2 in | Wide footprint for stability |
| Overall Depth | 930 mm (Base) / 640 mm (Drawers) | ~36.6 in / ~25.2 in | Deep base, efficient drawer interior |
| Overall Height | 550 mm | ~21.7 in | Comfortable working height |

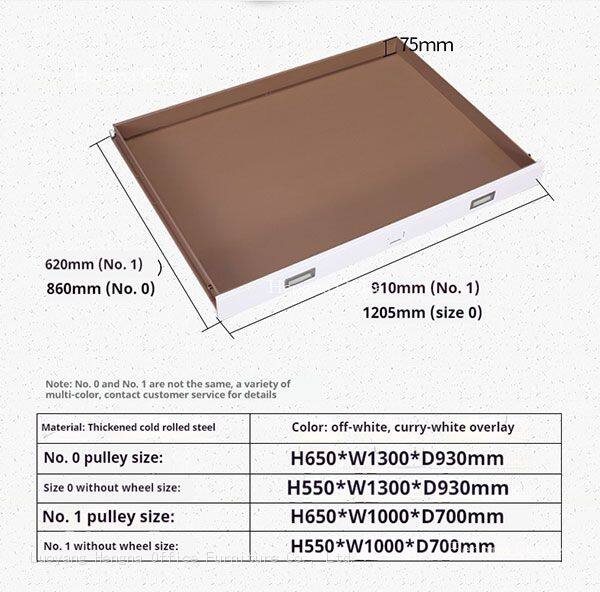

| Interior Drawer (Single) | W: 620 mm, D: 750 mm, H: 910 mm | ~24.4 in, ~29.5 in, ~35.8 in? | Note: Verify final dimensions. Likely 620W x 750D x 91H (internal). |
| Material | SPCC Cold Rolled Steel | - | Industrial-grade durability |
| Drawer Quantity | 5 | - | Ample capacity for project separation |
Uncompromising Quality: Material and Construction
At the heart of this flat file cabinet is its material: SPCC Cold Rolled Steel. As highlighted in our product imagery, this specific grade of steel is chosen for its rugged durability and smooth surface finish.
Why SPCC Cold Rolled Steel?
Strength & Longevity: SPCC steel is known for its excellent tensile strength and resistance to warping. It provides a rigid framework that can withstand the weight of hundreds of heavy drawings without flexing or bending over time.
Superior Finish: The cold-rolling process creates an exceptionally smooth surface. This is crucial for achieving a high-quality, electrostatic powder coating that adheres perfectly, resulting in a finish that is resistant to scratches, fading, and corrosion.
Comfortable Touch: Unlike some rougher metals, the smooth surface of the powder-coated SPCC steel is pleasant to the touch, adding a subtle but noticeable element of quality to the user experience.
The cabinet features a Knock-Down (KD) Structure for shipping. This means the unit is designed to be shipped in a flat pack, significantly reducing freight costs and the risk of damage during transit. Despite being shipped KD, the engineering tolerances are tight, ensuring a rock-solid, wobble-free assembly on-site. The "zero wall gap" design, as seen in our promotional materials, ensures that the cabinet can be placed flush against a wall, maximizing your valuable floor space and presenting a clean, built-in look.
Intelligent Design Features for the Modern Workspace
This 5-drawer plan chest goes beyond basic storage, incorporating features that streamline daily operations and protect your valuable assets.
1. Effortless Access with Silent Roller Bearings

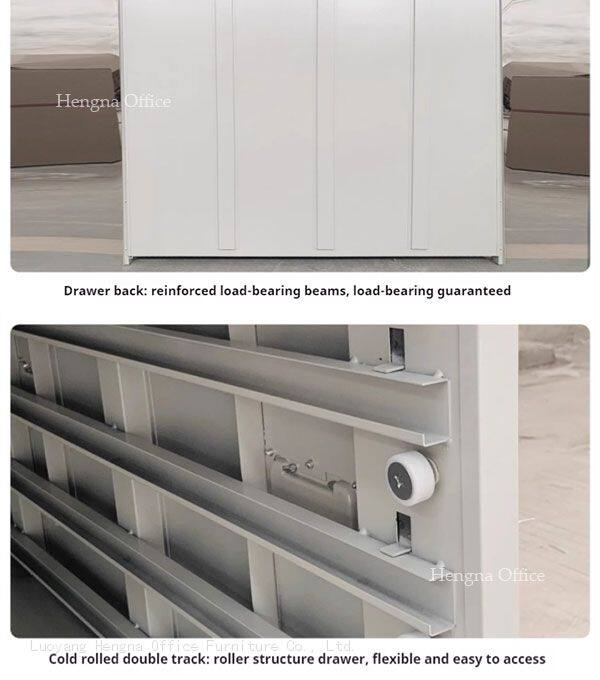

Friction is the enemy of efficiency. That's why each drawer glides on a precision-engineered cold-rolled double track with a roller structure. This system provides:
Smooth Operation: Drawers open and close with minimal effort, even when fully loaded.
Silent Performance: The roller mechanism eliminates the grinding and squeaking sounds associated with inferior slides, maintaining a quiet and focused office environment.
Load-Bearing Confidence: The reinforced back of the drawer, fitted with load-bearing beams, works in tandem with the slides to ensure the cabinet can handle its maximum capacity without sagging or jamming.
2. Streamlined Organization with Classification Labels
Disorganization in an engineering firm leads to lost time and missed deadlines. This cabinet addresses this with an integrated drawer middle classification number insert.
Quick Identification: Each drawer front features a dedicated slot where you can insert a classification label.
Easy Searching: Whether you are indexing by project number, client name, or date, these clearly visible labels allow team members to quickly identify the contents of each drawer without having to pull it open.
Humanized Design: This simple addition transforms the cabinet from a passive container into an active filing system, embodying a "humanized design of storage" that prioritizes the user's workflow.
3. Security and Stability
Protecting sensitive or proprietary drawings is often a requirement.

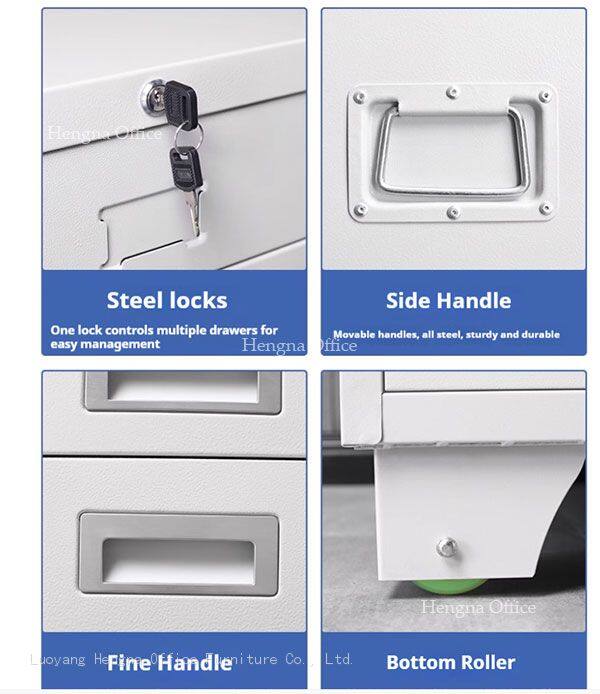

Central Steel Lock: The cabinet is equipped with a high-quality steel lock. With a simple turn, one lock controls multiple drawers simultaneously. This central locking system provides comprehensive security for all your documents without the hassle of locking each drawer individually.
Anti-Slip Top Design: Safety and stability are further enhanced by the anti-slip design. The top of the cabinet features a screw configuration that prevents deflection and keeps the unit firmly planted, especially important when stacked or placed on slightly uneven floors.
Why Choose This Cabinet for Your Engineering Firm?
Investing in the right filing infrastructure is a decision that pays dividends in productivity and document longevity. Here is why this model stands out:
Tailored for A0: Unlike general-purpose storage, this cabinet is purpose-built to accommodate A0 engineering drawings and larger maps, meaning no awkward folding or cramming.
Factory Direct Quality: Sourced directly from Luoyang Hengna Office Furniture Co., Ltd., you are assured of factory quality control and the best possible value, eliminating middleman markups.
Adaptable Placement: The option for movable casters (available on specific models) adds another layer of flexibility, allowing you to reconfigure your workspace with ease. The robust nylon casters are strong, wear-resistant, and designed not to damage flooring.
Aesthetics: The "exquisite gouge" (fine craftsmanship) ensures a professional appearance. The smooth, non-fading surface will maintain its professional look for years, fitting seamlessly into any corporate environment, from design studios to government archives.
Frequently Asked Questions (FAQ)
Q1: Is this cabinet difficult to assemble due to its KD structure?
A: Not at all. The Knock-Down (KD) structure is designed for user-friendly assembly. All parts, hardware, and clear instructions are included. The precision engineering ensures that all components fit together tightly and securely with basic tools. This design choice also allows for more economical shipping and easier maneuverability through doorways and tight spaces compared to a fully assembled unit.
Q2: What are the exact internal drawer dimensions? Can it hold rolled drawings?
A: While the overall dimensions are 1300mm (W) x 930mm (D) x 550mm (H), the interior drawer dimensions are designed for flat storage of A0 sheets (approx. 841mm x 1189mm). The drawers are deep enough for flat stacks of plans. This specific model is optimized for flat filing. If you require storage for rolled drawings, please inquire about our tube storage solutions. The flat interior ensures no curling or creasing of your valuable originals.
Q3: Does the one-key lock system lock all five drawers independently?
A: Yes, the central steel lock is engineered to engage all drawers simultaneously. When you turn the key, a locking bar mechanism secures each drawer in place. This provides a high level of security for the entire cabinet's contents with a single action. It is important to note that this locks the drawers, preventing them from being opened, rather than locking them individually with separate keys.
The A0 Size Flat File Cabinet for Engineering Firms is more than just a piece of office furniture; it's a durable, intelligent, and secure investment in your firm's operational efficiency. With its industrial-grade SPCC steel construction, silent and smooth roller bearings, and user-friendly organizational features like the classification label holder, it is the definitive choice for professionals who demand the best for their work. Order yours today and bring unparalleled order to your workspace.
The contact information of the sales manager is shown in the picture below. You can make inquiries directly without waiting.
