The Horizontal Map Storage Unit from Luoyang Hengna Office Furniture Co., Ltd. is designed specifically for the creative professional. This isn't just a filing cabinet; it's a modular 5 drawer plan cabinet that grows with your practice. Whether you're a solo architect working out of a trendy Colonia Americana loft or a growing firm in Andares, this unit offers the perfect blend of industrial strength and design-friendly aesthetics.
Product Specifications: Designed for A0 and Beyond
Understanding the dimensions of your storage is critical for studio planning. Here are the exact measurements based on our product data.
| Specification | Measurement (mm) | Measurement (inches) | Studio Application |
|---|---|---|---|
| Product Code | No. 1 double section | - | Standard for architectural firms |

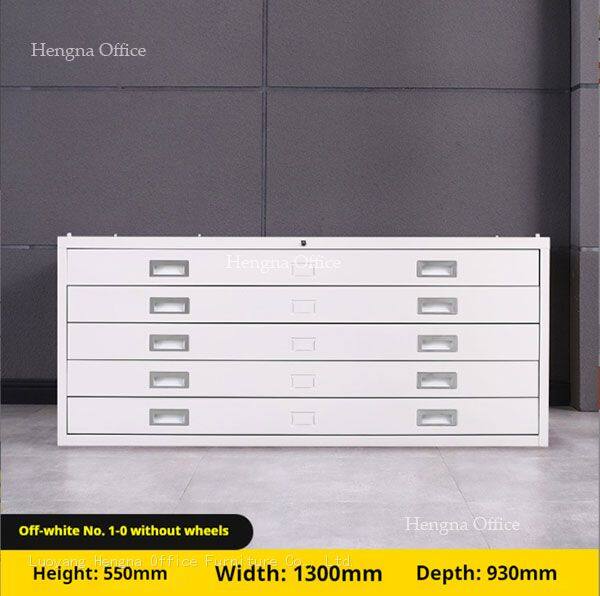

| Overall Width | 1300 mm | ~51.2 in | Fits against most studio walls |
| Overall Depth (Base) | 930 mm | ~36.6 in | Provides stable foundation |
| Overall Depth (Drawer) | 640 mm | ~25.2 in | Perfect for flat A0 sheets |
| Overall Height | 550 mm | ~21.7 in | Counter height for spreading plans |
| Interior Drawer (Single) | 620mm (W) x 750mm (D) x 91mm (H) approx. | ~24.4 x 29.5 x 3.6 in | Deep enough for rolled sets? Note: Optimized for flat storage. |
| Material | SPCC Cold Rolled Steel | - | Smooth, paintable surface |
| Color Options | Custom Available | - | Match your studio branding |
Modular Design: Grow Your Studio, Grow Your Storage
One of the biggest challenges for growing architecture studios in Guadalajara is scalability. You don't want to over-invest in storage today, but you also don't want to run out of space next month when you land that big commercial project.
Stackable and Expandable
This horizontal map storage unit features a modular, stackable design.
Vertical Expansion: The cabinets are engineered to stack securely on top of one another. Start with one 5-drawer unit. When you need more space, simply add another on top.
Perfect Proportion: As highlighted in our brand materials, these cabinets feature "perfectly proportioned cabinets and zero wall gaps." This means when you stack them, they create a seamless, built-in look that appears custom-made for your space.
Stability Assurance: The anti-slip top screw design ensures that stacked units remain firmly in place, even if bumped.
Custom Support for the Modern Studio
Hengna Office understands that no two architecture studios are alike.
Color Matching: Need your storage to match your studio's brand colors? We offer custom powder coating options.
Configuration Flexibility: Whether you need a mix of deep and shallow drawers or specific interior configurations, our factory-direct model allows for custom support that retail suppliers simply cannot match.
Anti-Slip Top Screw Design: Safety Meets Stability
Architecture studios are active environments. People are moving, models are being placed, and drawings are being pulled constantly. A wobbly cabinet is not just annoying—it's a hazard.
How It Works
The anti-slip design featured in our product images is deceptively simple but incredibly effective.

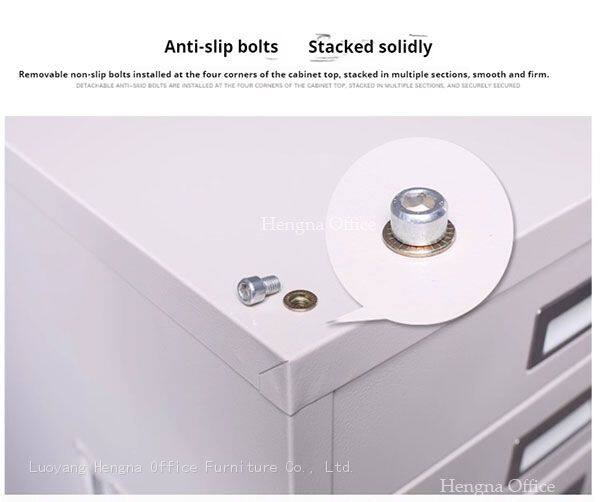

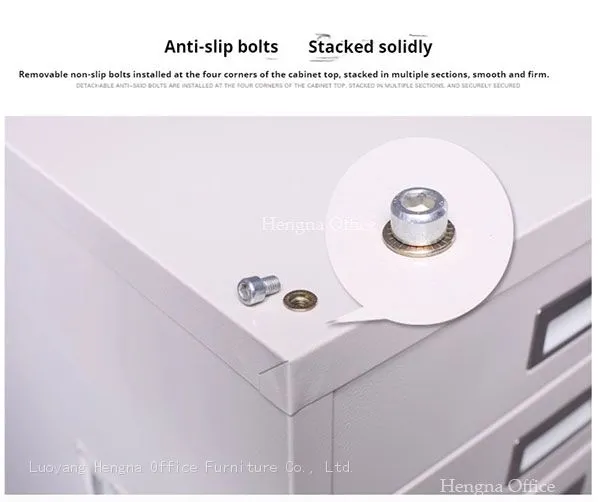

Top Screw Configuration: Precision-placed screws on the top surface of the cabinet allow for secure fastening of additional units or accessories.
Prevents Cabinet Deflection: Deflection—the twisting or warping of a cabinet under load—is a common problem with cheaper units. Our screw configuration keeps the cabinet perfectly square, ensuring drawers align and slide properly for years.
Floor Grip: While the screws secure the top, the wide footprint (1300mm x 930mm) and weight of the SPCC steel ensure the bottom stays put on any surface.
The Zero Wall Gap Advantage

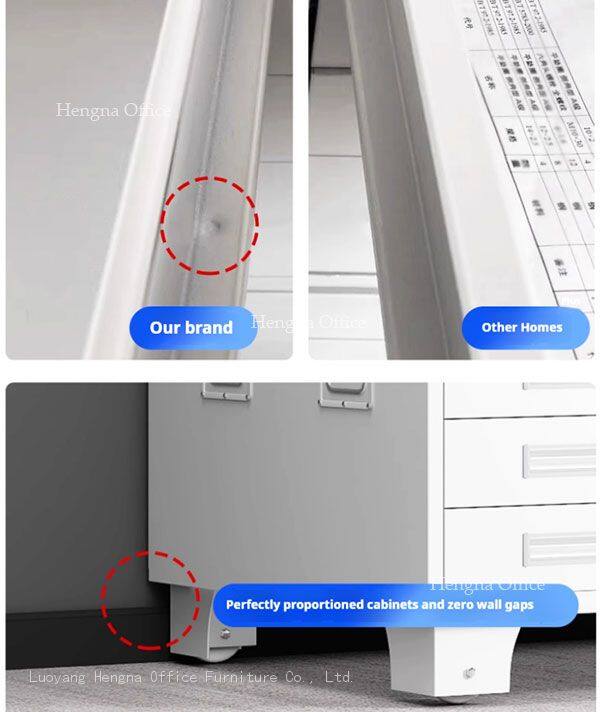

"Zero wall gaps" means the back of the cabinet sits flush against the wall.
Space Efficiency: In a studio where every square meter costs money, maximizing floor space is critical.
Professional Appearance: No ugly gaps for pencils and papers to fall into. The cabinet looks like it was built into the room.
Materials and Craftsmanship: The Hengna Difference
Guadalajara's design community appreciates quality. They specify materials for their clients; they expect the same for themselves.
SPCC Cold Rolled Steel
We use SPCC cold rolled steel exclusively.
Rugged and Durable: It withstands the daily wear and tear of a busy studio.
Smooth Surface: Unlike rougher steels, SPCC provides a surface that is comfortable to the touch and perfect for high-quality painting.
Non-Fading Finish: The electrostatic powder coating applied to our cabinets is designed to resist fading, even in studios with lots of natural sunlight.
Cold Rolled Double Track
The drawers operate on a cold-rolled double track with a roller structure.
Flexible Access: The roller mechanism ensures smooth, quiet operation. No jerky movements, no loud scraping.
Easy to Use: Even fully loaded with heavy bond paper and original drawings, the drawers glide open with minimal effort.
Designed for the Way Architects Work
Architects don't just store paper; they interact with it constantly. This cabinet is designed to facilitate that interaction.
Large Capacity Drawer Design
As shown in our product imagery, the large capacity drawer design is a core feature.
A0 Engineering Drawings: Store entire project sets flat, preventing the curling and creasing that comes from rolling.
Material Samples: The deep drawers (approx. 91mm interior height) can also accommodate material samples, fabric swatches, and presentation boards.
Drawer Middle Classification Number Insert
Finding the right drawing in a pinch is critical.
Quick Identification: The drawer middle classification number insert allows you to label each drawer clearly.
Easy Searching: Whether you organize by project phase, client name, or drawing type, these labels make retrieval instantaneous.
Humanized Design: This is what we call "humanized design of storage"—features that make the user's life easier, not harder.
Side Pulls: Simple and Ergonomic
Easy to Use: The side pulls are designed for natural hand position.
Easy to Pull: Even with a coffee in one hand and a marker in the other, you can open a drawer with a finger.
Why Guadalajara Studios Choose Hengna
Guadalajara is a city of design excellence. From its world-class architecture to its burgeoning art scene, the city demands quality. Here is why local studios trust Hengna:
Factory Direct Value: You are buying from Luoyang Hengna Office Furniture Co., Ltd., not a middleman. This means better pricing and direct access to support.
Professional Aesthetic: The clean lines, smooth finish, and zero-gap design look professional in client-facing spaces.
Built to Last: This is not disposable furniture. It's an investment in your practice that will serve you for decades.
Frequently Asked Questions (FAQ)
Q1: I have a small studio. Will this cabinet take up too much floor space?
A: Not at all. While the cabinet is wide (1300mm) to accommodate A0 drawings, its depth (930mm) and height (550mm) are optimized for efficiency. The "zero wall gap" design means you can place it flush against the wall, utilizing space that might otherwise be wasted. It also serves as an additional work surface for spreading out plans.
Q2: Can I really customize the color? How does that work?
A: Yes, custom support is a core part of our offering. As a factory-direct manufacturer, we control the powder coating process. If you have a specific RAL color that matches your studio's branding, we can work with you to produce cabinets that fit your aesthetic perfectly. Please contact us with your requirements for a quote.
Q3: What if I need to move the cabinet later? Is it too heavy?
A: The cabinet is heavy because it's made of thick SPCC steel—that's a sign of quality. However, the modular design means you can disassemble it if necessary. For moving within a studio, we recommend using furniture movers or sliders. Alternatively, ask us about the optional movable casters that can be fitted to the bottom for easier repositioning.
For the architecture studios of Guadalajara, storage should be as inspired as the work it holds. The Horizontal Map Storage Unit combines modular flexibility, industrial-grade materials, and thoughtful design features like the anti-slip top screw and classification labels to create the perfect home for your creative projects. Backed by factory-direct quality and custom support options, it's the intelligent choice for designers who demand the best.
