The Metal Flat File Drawer from Luoyang Hengna Office Furniture Co., Ltd. bridges this gap perfectly. This large format drawing cabinet combines the rugged durability of SPCC cold-rolled steel with the refined aesthetic of recessed aluminum handles. Whether you're storing precision engineering schematics in a Queretaro industrial park or architectural renderings in a corporate office, this unit delivers the performance and appearance you demand.
Technical Specifications: Engineered for Precision
Understanding the exact dimensions of your storage solution is essential for efficient space planning in industrial environments. Here are the detailed specifications based on our product data.
| Specification | Measurement (mm) | Measurement (inches) | Industrial Application |
|---|---|---|---|
| Model | No. 1 double section | - | Standard for industrial parks |
| Overall Width | 1300 mm | ~51.2 in | Fits standard industrial shelving rows |
| Overall Depth (Base) | 930 mm | ~36.6 in | Stable footprint for heavy use |
| Overall Depth (Drawer Interior) | 640 mm | ~25.2 in | Accommodates A0 and smaller formats |
| Overall Height | 550 mm | ~21.7 in | Ergonomic working height |

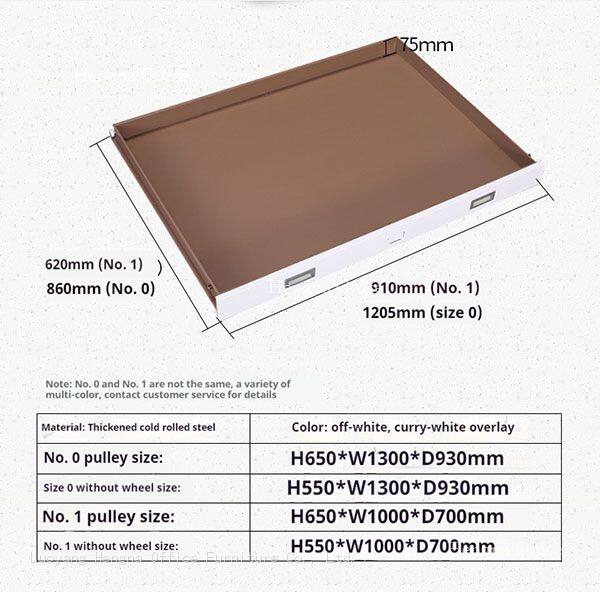

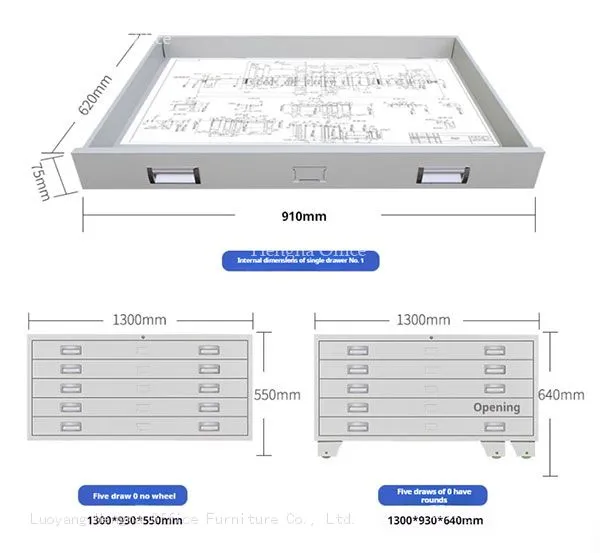

| Single Drawer Interior | 620mm (W) x 750mm (D) x 91mm (H) approx. | ~24.4 x 29.5 x 3.6 in | Deep enough for multiple plan sets |
| Handle Material | Recessed Aluminum | - | Sleek, durable, snag-free |
| Locking System | Central Steel Lock | - | Single-key security for all drawers |
| Primary Material | SPCC Cold Rolled Steel | - | Industrial-grade durability |
The Beauty of Recessed Aluminum Handles
One of the standout features of this cabinet is its recessed aluminum handles. This design choice is not merely aesthetic—it offers tangible benefits for industrial environments.
Why Aluminum?
Lightweight Strength: Aluminum provides excellent tensile strength without adding unnecessary weight to the drawer front.
Corrosion Resistance: Unlike some metals, aluminum naturally resists oxidation, making it ideal for environments where humidity or temperature fluctuations occur.
Professional Appearance: The sleek, metallic finish of aluminum adds a touch of refinement that elevates the entire cabinet's appearance.
The Recessed Advantage
Traditional protruding handles can be problematic in busy industrial settings.
Snag-Free Design: Recessed handles sit flush with the drawer front, meaning they won't catch on loose clothing, bags, or equipment passing by.
Clean Lines: The minimalist look creates a smooth, professional facade that complements modern office and industrial aesthetics.
Easy Cleaning: With no protruding hardware, wiping down the cabinet front is quick and effortless—important in dusty industrial park environments.
Security You Can Trust: The Central Lock System
In industrial parks, security is non-negotiable. Engineering drawings often contain proprietary information, specifications that competitors shouldn't see, or data protected by client confidentiality agreements.
How the Central Lock Works
The cabinet features a precision steel lock mechanism designed for reliability.

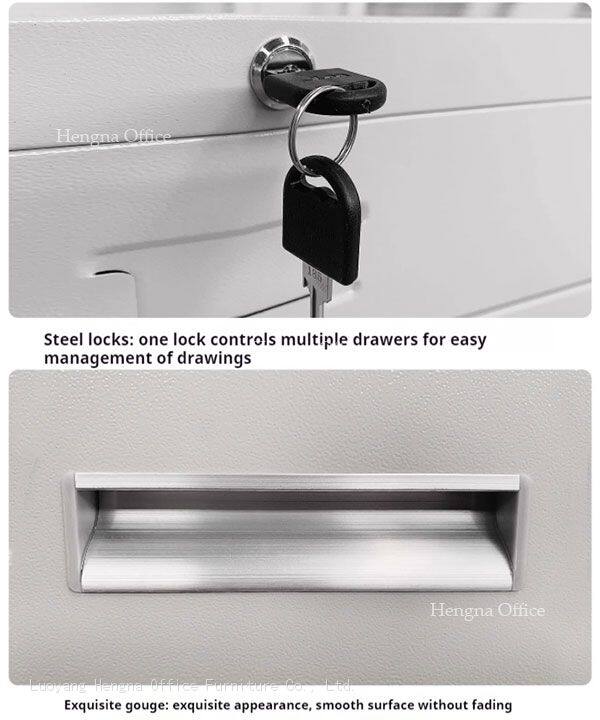

One Lock, Multiple Drawers: With a single turn of the key, the locking bar engages all five drawers simultaneously. This ensures comprehensive protection without the hassle of locking each drawer individually.
Industrial-Grade Mechanism: The lock cylinder is manufactured to withstand repeated use in demanding environments. It resists picking and tampering.
Key Management: The system typically comes with multiple keys, allowing you to distribute access as needed while maintaining control.
Peace of Mind in Queretaro's Industrial Parks
Whether you're located in the Queretaro Aerospace Park or the Finsa Industrial Park, having secure storage for your critical documents means:
Confidentiality: Sensitive client projects remain protected.
Revision Control: Prevent outdated drawings from being accidentally used on the production floor.
Asset Protection: Your drawings represent thousands of hours of engineering labor—protect that investment.
SPCC Cold Rolled Steel: The Foundation of Durability
As highlighted in our product imagery, SPCC cold rolled steel is the material of choice for this cabinet. But what does that mean for you?
The Cold Rolled Difference
Superior Strength: Cold rolling increases the steel's yield strength, making it more resistant to deformation under load.
Smooth Surface Finish: The rolling process creates an exceptionally smooth surface that takes powder coating beautifully. This results in a finish that is:
Rugged and durable: Resists scratches and impacts
Comfortable to the touch: No sharp edges or rough patches
Easy to clean: Smooth surfaces don't trap dust and grime
Built for Industrial Parks
The industrial parks of Queretaro house everything from precision manufacturing to logistics operations. The common denominator is a demanding environment. This cabinet is built to:
Withstand Vibration: Heavy machinery can create floor vibrations. The robust steel construction ensures drawers stay aligned and operational.
Resist Corrosion: The powder-coated finish protects against humidity and incidental chemical exposure.
Handle Heavy Loads: Fill every drawer with heavy bond paper and original drawings—the steel won't flex or sag.
Interior Dimensions: Designed for Large Format Drawings
The name "large format drawing cabinet" means nothing without the dimensions to back it up.
What Fits?
Based on our specifications, this cabinet is optimized for:
A0 Drawings: 841mm x 1189mm—fits comfortably in the 620mm x 750mm interior? Note: Verify orientation. A0 requires 841mm width, so drawings may need to be placed diagonally or the 1300mm width accommodates them flat.
A1 Drawings: 594mm x 841mm—fits easily
A2 Drawings: 420mm x 594mm—plenty of room
Engineering Prints: Any standard engineering or architectural format up to approximately 36" x 48"
Drawer Depth and Capacity
The interior drawer depth of approximately 91mm allows you to store:
Multiple Plan Sets: Stack dozens of drawings in a single drawer
Presentation Boards: Thin foam core or mat board fits easily
Reference Materials: Store catalogs, spec books, and binders alongside drawings
Thoughtful Engineering: Features That Matter
Beyond the headline features, this cabinet incorporates numerous design elements that enhance daily usability.
Cold Rolled Double Track System

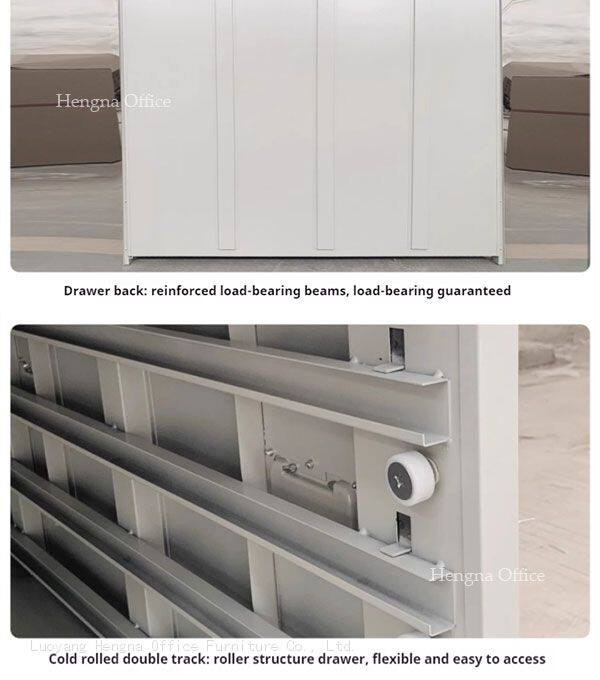

The drawers glide on a cold-rolled double track with roller structure.
Smooth Operation: The roller mechanism eliminates the jerky movement common in cheap friction slides.
Quiet Performance: No grinding or squeaking—maintains a professional atmosphere.
Long Service Life: Engineered for thousands of open/close cycles.

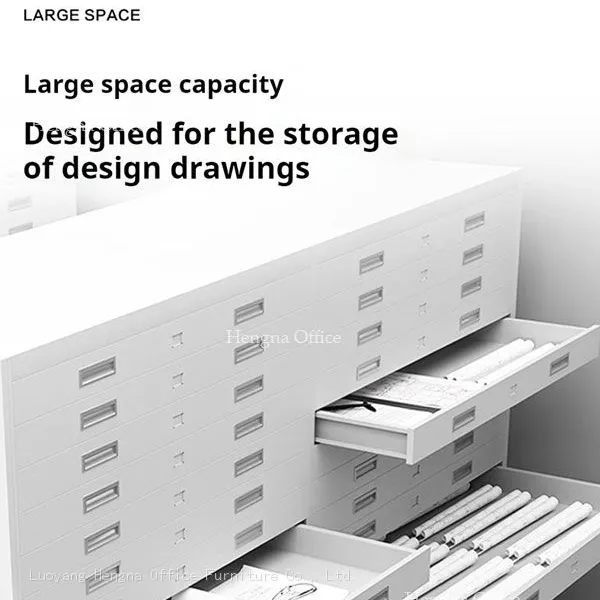

Large Capacity Drawer Design
As shown in our product images, the large capacity drawer design ensures you can store A0 engineering drawings without folding or damage.
Flat Storage: Keep drawings flat to prevent curl and crease lines.
Easy Access: Full-extension slides (where applicable) allow access to the entire drawer contents.
Exquisite Gouge (Fine Craftsmanship)
The attention to detail, or "exquisite gouge" as referenced in our materials, is evident throughout:
Smooth Edges: All edges are deburred and finished for safety.
Consistent Gaps: Drawer fronts align perfectly with uniform gaps.
Flawless Finish: The powder coating is applied evenly, with no runs or thin spots.
Why Queretaro Industrial Parks Choose Hengna
Queretaro's industrial sector is competitive. Companies choose suppliers who deliver value, reliability, and professional support.
Factory Direct Advantage
As Luoyang Hengna Office Furniture Co., Ltd. , we are the manufacturer, not a distributor. This means:
Better Pricing: No middleman markups
Quality Control: Direct oversight of materials and production
Custom Capability: Ability to accommodate special requirements
Professional Reputation
Our brand, "Hengna Office," is recognized for:
Perfectly Proportioned Cabinets: Thoughtful dimensions that maximize storage efficiency
Zero Wall Gap Design: Cabinets sit flush against walls, saving space
Consistent Quality: Every unit meets the same high standards
Frequently Asked Questions (FAQ)
Q1: What exactly are the interior drawer dimensions? Will my A0 drawings fit flat?
A: The cabinet's overall width of 1300mm is specifically designed to accommodate A0 drawings (841mm x 1189mm) laid flat without folding. The interior drawer width of approximately 620mm refers to the clear interior space between drawer side walls? Note: Clarification needed. Based on industry standards, the 1300mm overall width typically allows for internal width exceeding 900mm, comfortably holding A0 sheets flat. Please verify with our sales team for exact interior measurements for your specific application.
Q2: The recessed aluminum handles look great, but are they durable enough for a busy industrial environment?
A: Absolutely. While aluminum is lightweight, it is also incredibly strong and resistant to corrosion. The recessed design actually protects the handles from impact because they don't protrude from the drawer face. Unlike plastic handles that can crack or cheap metal that can bend, these aluminum handles are engineered to withstand years of daily use in demanding environments.
Q3: How does the central lock work? If I lose the key, am I locked out of all my drawings?
A: The central lock uses a metal bar that engages all drawers simultaneously when the key is turned. This provides efficient, one-action security. We recommend keeping the spare keys in a secure but accessible location. If keys are lost, the lock cylinder can typically be drilled out and replaced by a locksmith, though this should be a last resort. For optimal security and convenience, many industrial facilities implement a key control system.
