The Architectural Plan Chest from Luoyang Hengna Office Furniture Co., Ltd. is purpose-built for the educational environment. Design institutes in Puebla need storage that is durable enough to survive constant use by students, flexible enough to accommodate growing program needs, and professional enough to impress visiting critics and accreditation boards. This stackable steel blueprint file cabinet delivers on all counts. Constructed from premium cold rolled steel and equipped with smooth casters for easy repositioning, it represents the perfect partnership of industrial strength and educational functionality.
Technical Specifications: Built for the Classroom and Studio
Understanding the physical requirements of an educational environment is critical. Here are the detailed specifications based on our product data.
| Specification | Measurement (mm) | Measurement (inches) | Educational Application |
|---|---|---|---|
| Model | No. 1 double section | - | Standard for A0/A1 student work |
| Overall Width | 1300 mm | ~51.2 in | Fits standard classroom layouts |
| Overall Depth (Base) | 930 mm | ~36.6 in | Stable against studio walls |
| Overall Depth (Drawer Interior) | 640 mm | ~25.2 in | Accommodates flat student projects |
| Overall Height (Single Unit) | 550 mm | ~21.7 in | Counter-height work surface |
| Stacked Height (2 Units) | 1100 mm | ~43.3 in | Comfortable standing access |

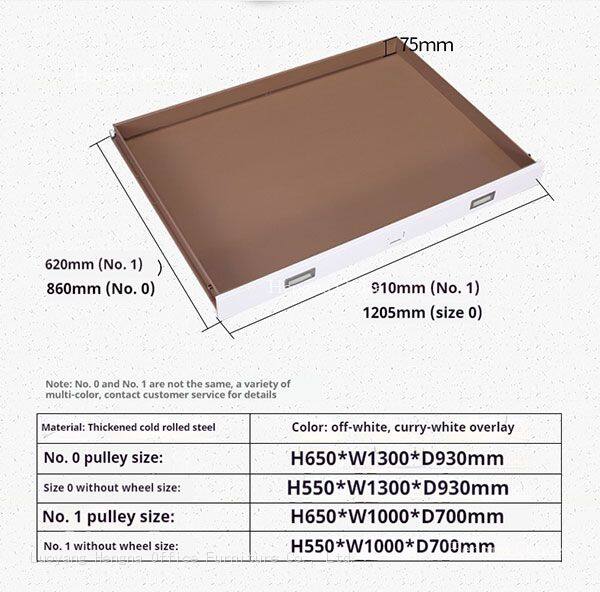

| Single Drawer Interior | 620mm (W) x 750mm (D) x 91mm (H) approx. | ~24.4 x 29.5 x 3.6 in | Holds multiple student portfolios |
| Material | SPCC Cold Rolled Steel | - | Survives heavy student use |
| Mobility | Smooth Nylon Casters (Optional) | - | Easy classroom reconfiguration |
| Supplier Status | Factory Direct Professional | - | Direct support for institutions |
Stackable Design: Grow with Your Program
One of the greatest challenges for design institutes in Puebla is managing space efficiently while accommodating growing student populations. You might have 20 students in foundational drawing this year, but 35 in advanced studio next year. Your storage needs to be as dynamic as your enrollment.
Modular Vertical Expansion

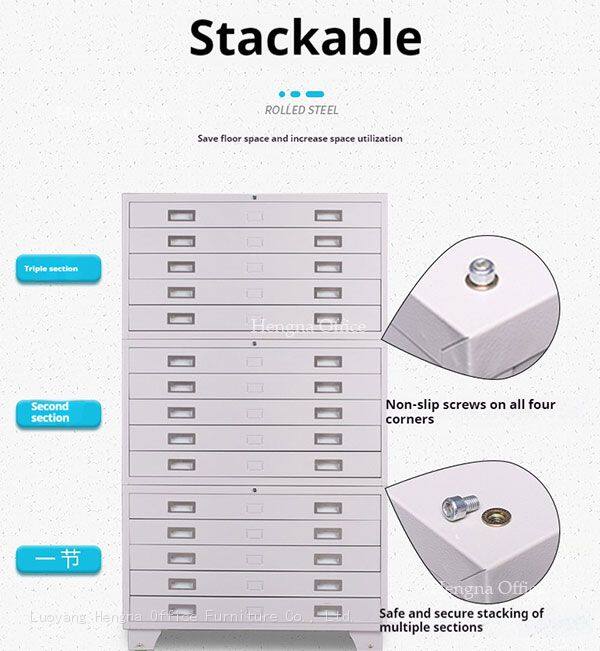

This stackable steel blueprint file cabinet is engineered for seamless vertical integration.
Start Small, Think Big: Begin with a single 5-drawer unit. As your program expands, simply order additional units and stack them directly on top.
Perfect Alignment: The cabinets are designed with precision-machined corners and a "zero wall gap" profile that ensures stacked units align perfectly. No wobbling, no uneven edges.
Anti-Slip Security: The top screw configuration featured in our anti-slip design allows you to secure stacked units together. This prevents any shifting or deflection, even when students are leaning on the cabinet or pulling drawers aggressively.
Space Efficiency
In a busy studio, floor space is at a premium.
Zero Wall Gap: Place the cabinet flush against the wall to maximize open floor area for critiques and studio work.
Dual-Purpose Surface: The flat top of each cabinet provides an additional 1.3m x 0.93m of workspace. Use it for spreading out large drawings, displaying student work, or storing reference materials.
Smooth Casters: Mobility for the Modern Classroom
Traditional plan chests are heavy and immovable. Once you place them, they're there forever. But modern design institutes in Puebla need flexibility. Maybe you want to reconfigure the studio for a pin-up. Maybe you need to move storage out of the way for a guest lecture. Maybe you're cleaning or rearranging the space.
The Caster Advantage

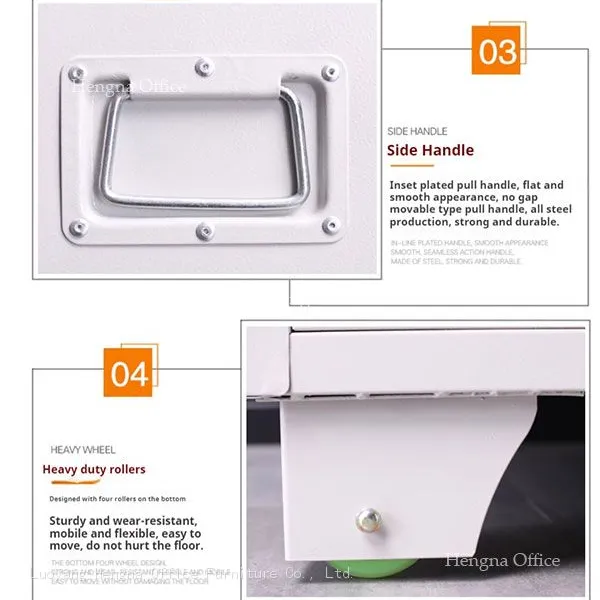

Our cabinet can be equipped with four nylon casters on the bottom, transforming it from a stationary unit into a mobile storage solution.
Smooth Rolling: The casters glide effortlessly across tile, concrete, and low-pile carpet.
Wear-Resistant: Constructed from heavy-duty nylon, these casters are built to last. They won't crack or flatten under the weight of a fully loaded cabinet.
Floor Protection: Despite their strength, the nylon material is gentle on flooring. No scratches, no scuffs, no marks—important for institutes with polished concrete or tile floors.
Flexibility and Convenience: As highlighted in our product images, these casters provide the "flexibility and convenience" that dynamic educational environments demand.
Locking Options
For situations where stability is paramount, our casters can be specified with locking mechanisms. This allows you to:
Lock in Place: Keep the cabinet stationary during heavy use.
Release and Move: Unlock when you need to reconfigure the space.
SPCC Cold Rolled Steel: Built for Student Use
Let's be honest—students are hard on equipment. They lean on things, they bump into things, they pile heavy books and materials on top of things. Your storage needs to survive the rigors of daily educational use.
Why SPCC Cold Rolled Steel?
Rugged and Durable: SPCC steel is industrial-grade material. It resists dents, dings, and deformation.
Smooth Surface: The cold rolling process creates a finish that is "comfortable to the touch." No rough edges, no sharp corners—just a professional, smooth surface that feels as good as it looks.
Easy to Clean: In a post-pandemic world, easy cleaning is non-negotiable. The smooth, powder-coated surface wipes down quickly with standard disinfectants.
Longevity
Design institutes invest in equipment that will last for decades, not years. This cabinet is built to:
Survive Generations: With proper care, SPCC steel furniture outlasts the students who use it.
Maintain Appearance: The electrostatic powder coating resists fading, chipping, and scratching. Your cabinets will look professional for the long haul.
Designed for Educational Workflow
Beyond durability and flexibility, this cabinet incorporates features that enhance the daily workflow of students and faculty.
Cold Rolled Double Track System
Each drawer operates on a cold-rolled double track with roller structure.
Smooth and Flexible: Even fully loaded with heavy student portfolios, the drawers open and close with minimal effort.
Quiet Operation: No loud scraping or grinding—maintains a focused studio environment.
Easy Access: Students can quickly retrieve and store their work without frustration.

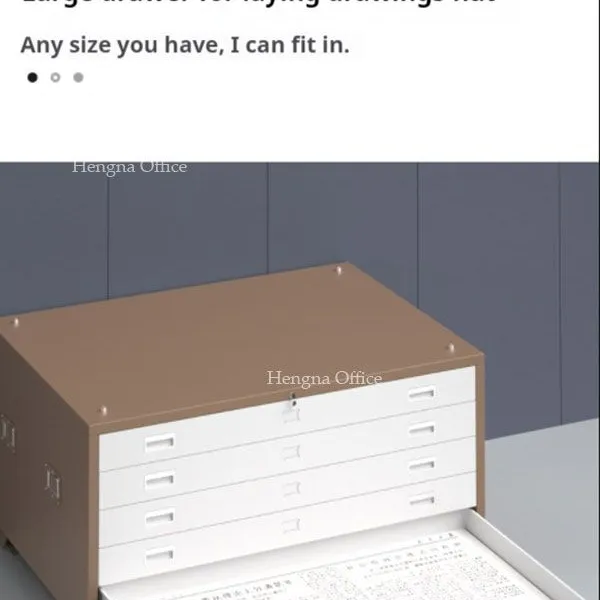

Large Capacity Drawer Design
As shown in our product imagery, the large capacity drawer design accommodates:

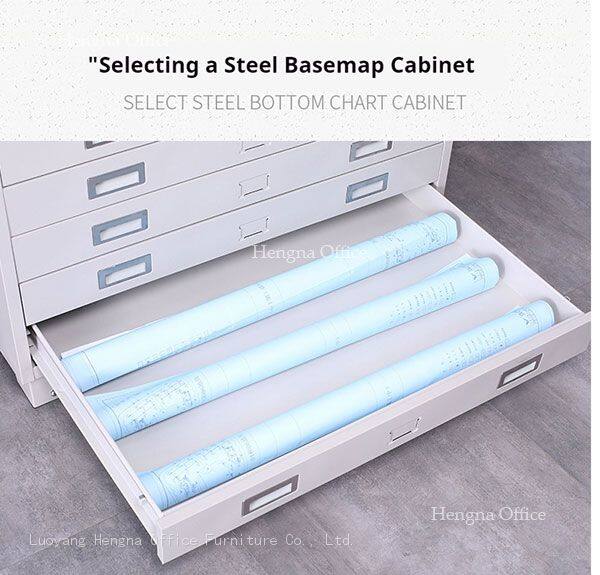

A0 Engineering Drawings: Store full-size student projects flat to prevent damage.
Portfolios: Multiple student portfolios can be stacked in a single drawer.
Presentation Boards: Foam core and mat board fit easily.
Drawer Middle Classification Number Insert
Organization is critical in educational settings.
Quick Identification: The integrated classification number insert allows for clear labeling of each drawer.
Easy Searching: Students and faculty can quickly locate specific projects or course materials.
Humanized Design: This simple feature transforms the cabinet from passive storage into an active organizational tool.
Professional Supplier: The Hengna Advantage
As a professional supplier to design institutes, Luoyang Hengna Office Furniture Co., Ltd. understands the unique needs of educational clients.
Factory Direct Benefits
Institutional Pricing: Purchasing directly from the manufacturer means better value for educational budgets.
Quality Assurance: We control every step of production, from steel selection to final assembly.
Custom Support: Need specific colors to match your institute's branding? Need modified dimensions for a particular space? Factory direct means we can accommodate.
Our Brand Promise
"Hengna Office" represents:
Perfectly Proportioned Cabinets: Thoughtful dimensions that maximize storage efficiency.
Zero Wall Gap Design: Space-saving profiles that fit seamlessly into any room.
Consistent Quality: Every cabinet meets the same rigorous standards.
Why Puebla Design Institutes Choose Hengna
Puebla's design institutes are known for producing talented architects and designers who go on to shape cities. These institutions choose Hengna because:
Durability: Our cabinets survive decades of student use.
Flexibility: Stackable design and optional casters adapt to changing needs.
Professional Appearance: Clean lines and quality finishes impress visitors and accreditation teams.
Value: Factory direct pricing respects institutional budgets.
Frequently Asked Questions (FAQ)
Q1: We have limited studio space. Can we really stack these cabinets, and is it safe?
A: Yes, absolutely. These cabinets are engineered specifically for stacking. The anti-slip top screw design allows you to securely fasten upper units to lower units, preventing any movement or shifting. The "zero wall gap" profile means you can place stacked units flush against the wall, maximizing your available floor space. Even when stacked two or three high, the steel construction ensures stability.
Q2: How do the casters hold up under the weight of a fully loaded cabinet?
A: The nylon casters are specifically selected for their strength and load-bearing capacity. They are wear-resistant and engineered to support the full weight of the cabinet plus contents without deformation. For institutes concerned about movement during use, we recommend locking casters that keep the cabinet stationary until you intentionally release them for repositioning.
Q3: We need to store student portfolios of varying sizes. Will everything fit?
A: The interior drawer dimensions are designed to accommodate a wide range of materials. A0 drawings (841mm x 1189mm) lay flat comfortably. Standard portfolio cases, presentation boards, and reference books all fit within the approximately 91mm drawer height. For oversized items or rolled drawings, the flat top surface provides additional temporary storage during reviews and critiques.
