Help CenterAutomatic Gemstone Round Bead Blank Chamfering Machine - High Precision Edge Grinding & Polishing Equipment for Jade / Agate / Quartz
Product Spotlights
Number: 810603001 Model: XX-7208D
The Xingxing Chamfering Machine is mainly used for chamfering and edge finishing of rough gemstone materials. The equipment operates by rotating a grinding wheel disc inside a cylinder
Related Products
-
Industrial Vacuum Pot for Gemstone Treating & Resin ImpregnationUS$ 580MOQ: 2 Pieces -
CNC Arc & Ring Shape Forming Machine – Ellipse / Round / Oval Surface Processing (Made in China)US$ 3200MOQ: 2 Pieces
-
CNC Watch Bezel Polishing Machine for Ceramic Tungsten Steel (Model XX-288) – Grinding & Polishing One-Time Finish， ±0.03mm AccuracUS$ 3660 - 3680MOQ: 1 Bag
-
0.75kw Gem Vacuum Pump 6 Liters, Vacuum Pump and Vacuum Filling Bucket Used Together, the Vacuum Pump Cket,US$ 530 - 550MOQ: 1 Bag
-
1100W Glass Round Rod Forming Machine, Square Rod Grinding Into a Round Rod, the Subsequent Round Rod Ball ProcessUS$ 950 - 1000MOQ: 1 Bag
Product Title
Xiongxing Chamfering Machine Model -Efficient Beveling & Edge Processing for Gemstone Rough
Product Overview

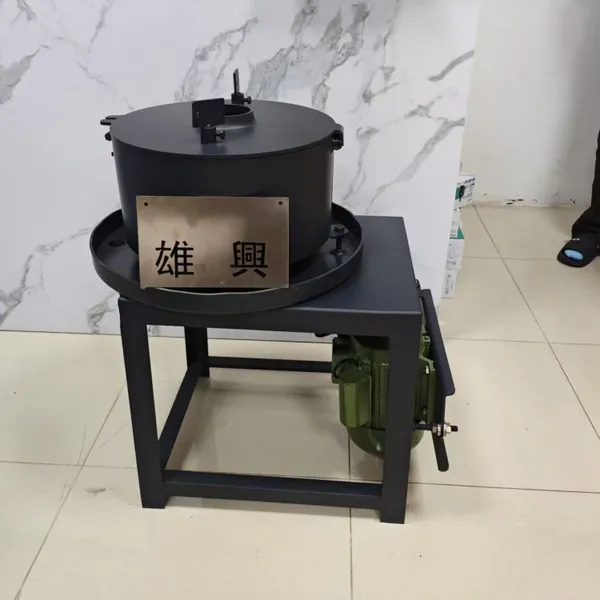

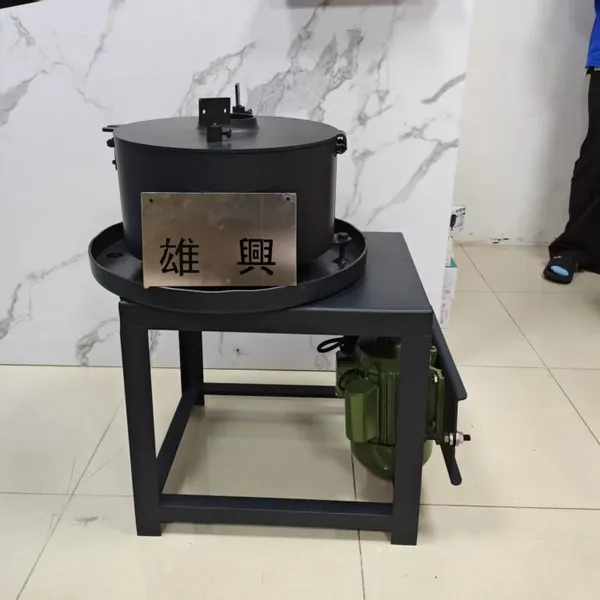

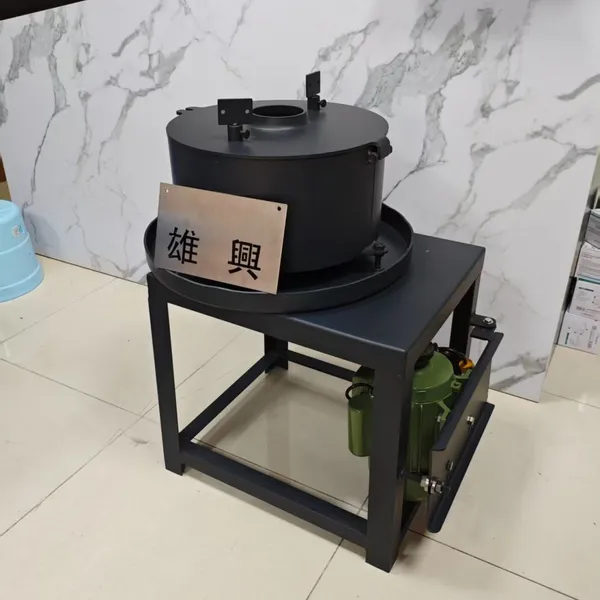

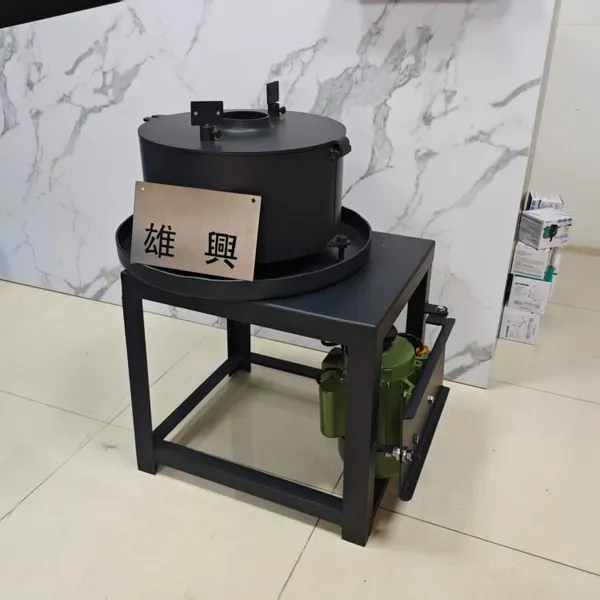

Xiongxing Chamfering Machine (Model: XX-7208D, No.: 810603001) is specially designed for chamfering and edge rounding of gemstone and jade rough materials. During operation, the grinding wheel inside the drum rotates, causing the rough stones to tumble and grind automatically, achieving high-efficiency chamfering. This model offers wide applicability and is a standard piece of equipment in the gemstone processing industry.
Working Principle
The motor drives the driving shaft via a belt, which then rotates the grinding wheel mounted on the driven shaft. As the grinding wheel spins at high speed inside the drum, the rough gemstones tumble, collide with each other, and contact the grinding wheel, quickly removing sharp edges and producing a smooth, rounded chamfer.
Main Components
Drum (lined with 9–10 mm PU sheet for wear resistance and noise reduction)
Driving shaft and driven shaft

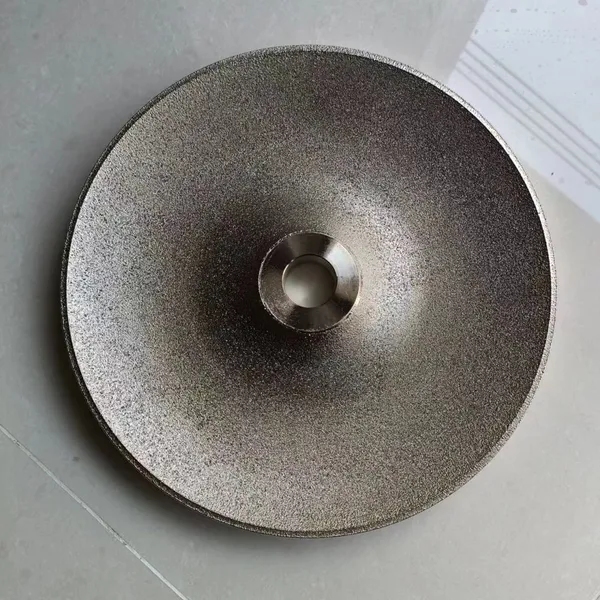

Grinding wheel (installed on the driven shaft)
Belt and pulley transmission system
Support shaft (ensures stable rotation of the grinding wheel)
Electric motor
Technical Parameters
Parameter Value
Product No. 810603001
Model XX-7208D
Input Voltage AC 220V / 380V (optional)
Output Power 1100 W
Spindle Speed 852 r/min
Dimensions (L×W×H) 63 × 45 × 75 cm
Drum Lining PU sheet, approx. 9–10 mm thick
Installation Steps
1. Place the machine on a stable, level workbench.
2. Check that the grinding wheel is firmly installed and the driven shaft rotates freely.
3. Connect the motor to the power supply (choose 220V or 380V according to local voltage).
4. Adjust belt tension to avoid slipping between the driving shaft and motor pulley.
5. Run a no-load test for 1–2 minutes to confirm no abnormal noise or vibration before use.
Operation Guide
1. Pre-start check: Ensure the drum is free of debris and the grinding wheel is undamaged.
2. Loading: Add an appropriate amount of gemstone rough into the drum (recommended ≤ 2/3 of drum volume).
3. Start: Turn on the power; the rough stones will automatically tumble and grind inside.
4. Chamfering time: Typically 5–30 minutes depending on material and desired chamfer size.
5. Unloading: Turn off the power, open the drum cover, and remove the chamfered rough.
6. Cleaning: Clean the drum interior after each use to extend the life of the PU liner and grinding wheel.
Key Advantages
High Efficiency: Self-tumbling design ensures fast and uniform chamfering.
Wide Application: Suitable for various gemstone rough (agate, crystal, jade, etc.).
Wear-resistant & Low Noise: 9–10 mm PU liner significantly reduces drum wear and operating noise.
Dual Voltage Option: Supports AC 220V or 380V input for different shop floors.
Stable Structure: Independent support shaft provides smooth grinding wheel rotation and easy maintenance.
Durable Build: Key components made of high-strength materials, ideal for continuous mass production.
