Formaldehyde and various organic solvents are indispensable in pathology laboratories for tissue fixation and dehydration. However, their volatile and hazardous nature poses significant storage challenges. Leaks can lead to toxic exposure, while vapors can create a fire hazard. This Chemical Storage Cabinet is specifically designed to house formaldehyde and solvents safely, featuring a robust 50mm leak-proof sump and a ventilation system that prioritizes environmental safety and personnel health.
Mitigating the Risks of Formaldehyde and Solvents
Formaldehyde is a known carcinogen, and solvents like xylene are highly flammable. In a busy pathology lab, accidental spills are a reality. If a container ruptures or leaks, the liquid can quickly spread, contaminating the workspace and exposing staff to harmful fumes. This cabinet is designed to contain such incidents at the source.
Superior Leakage Containment
The standout feature of this cabinet is its comprehensive spill control capability.

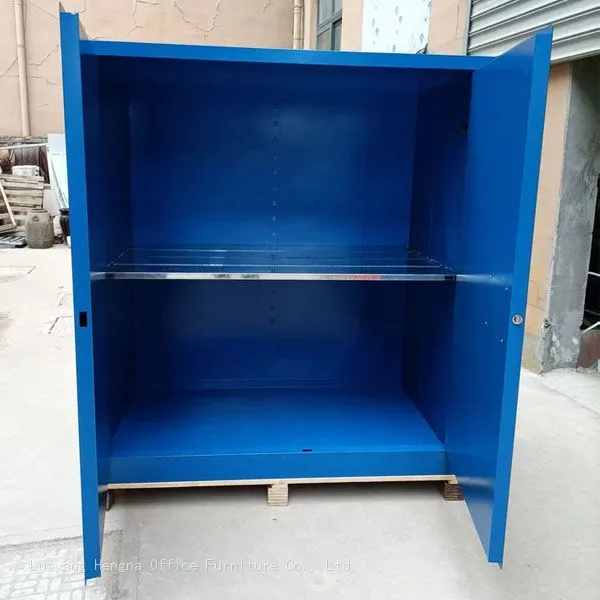

50mm Leak-proof Sump: The base of the cabinet is constructed with a 50mm deep, integrated sump. This is not just a tray, but a structural part of the cabinet. In the event of a spill, this sump captures the leaked liquid, preventing it from flowing out onto the laboratory floor. This feature is critical for containing formaldehyde, limiting the surface area for evaporation and reducing exposure risks.
Galvanized Steel Shelves: The shelves are coated with galvanized steel, offering resistance against the corrosive nature of some fixatives and solvents. They are adjustable, allowing for the storage of various container sizes commonly used in histology labs.
Fire Safety and Ventilation
Storing flammable solvents requires more than just containment; it requires active fire prevention.
Validated Fire Resistance: The cabinet has been tested to meet the time-temperature curve requirements of the NFPA 30 standard. This ensures that in the event of a fire external to the cabinet, the internal temperature remains below the ignition point of the stored solvents for a critical period.

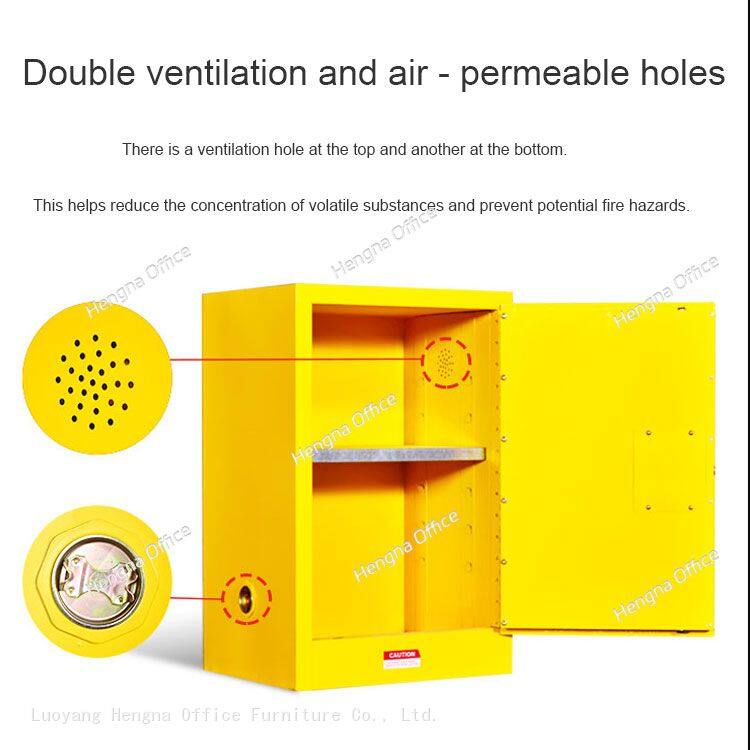

Explosion-Proof Ventilation: To prevent the accumulation of heavy vapors (like xylene) inside the cabinet, it is equipped with dual ventilation ports. These ports feature flame arrestors that have passed a 15-minute combustion test without flashback, complying with GB 3836.1-2021 and GB/T 3836.8-2021. This allows for safe connection to the lab’s exhaust system, removing hazardous fumes from the cabinet interior.
Durability in Demanding Environments
Pathology labs are high-traffic areas where durability matters.
Impact Resistance: The cabinet is built to last. It successfully passed a mechanical test withstanding an impact energy of 7.0J. This ensures that daily wear and tear or accidental bumps do not compromise the cabinet’s structural integrity or its ability to contain leaks.
IP65 Protection: The cabinet is rated IP65, ensuring it is dust-tight and protected against water jets. This allows for easy decontamination and cleaning of the exterior, a vital requirement in medical laboratory hygiene protocols.
Technical Specifications
| Feature | Specification |
|---|---|
| Target Chemicals | Formaldehyde, Xylene, Ethanol |
| Sump Height | 50mm (Leak-proof) |
| Ventilation | Dual Ports with Flame Arrestors |
| Fire Resistance | Meets NFPA 30 Standard |
| Impact Resistance | 7.0J |
| Protection Rating | IP65 |
| Shelves | Adjustable Galvanized Steel |
A Commitment to Lab Safety
By choosing this cabinet, pathology labs are making a commitment to safety. The 50mm sump is a primary line of defense against toxic spills, while the fire-resistant construction protects valuable samples and the facility from fire. It is an essential piece of equipment for any facility handling hazardous medical chemicals.
