The Sweet Spot Between Size and Flexibility

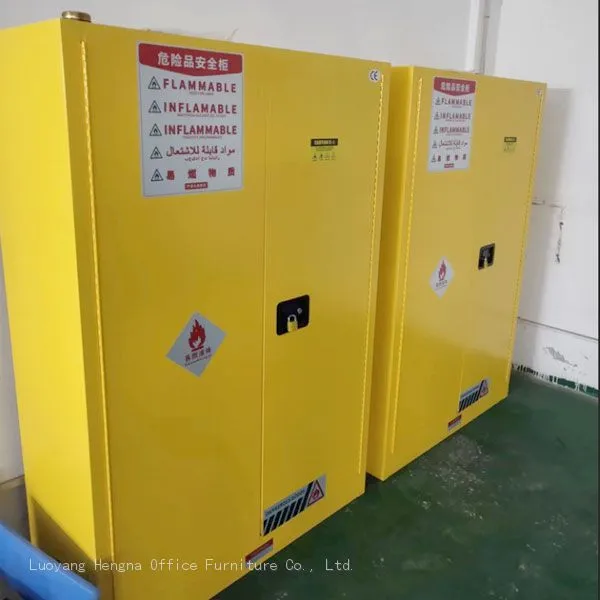

Not every facility needs a 110-gallon warehouse unit, and a 4-gallon benchtop cabinet doesn’t cut it when you’re managing more than a few bottles. The 30-gallon yellow flammable liquid cabinet sits right in the middle — large enough to handle real chemical quantities, compact enough to fit where space is tight. It’s the most popular size for a reason: it works almost everywhere.
Laboratories use it for daily reagent storage beside the workbench. Auto shops park it next to the lift for quick access to brake cleaner and degreasers. Small manufacturing lines keep one at each station for solvents and cleaning chemicals. If you’re not sure which size to buy, start here — 30 gallons covers more use cases than any other single size.
Heavy Gauge Steel Means Real Protection
1.2mm Double-Wall Cold-Rolled Steel
Both the outer shell and inner lining are made from 1.2mm cold-rolled steel — not thin gauge sheet metal that dents when you lean on it. The double-wall construction creates a 38mm insulated air gap between the panels. This gap acts as a thermal buffer. If a fire breaks out nearby, heat transfer to the cabinet interior slows down significantly, buying time for the stored liquids to stay below their flash point.
Epoxy Powder-Coated Finish
The entire cabinet is coated with epoxy resin powder applied through electrostatic spraying, then cured at high temperature. This isn’t standard paint that chips and peels after a few solvent spills. The epoxy layer bonds chemically with the steel surface, creating a hard, chemical-resistant shell. Accidental splashes of acetone, thinner, or alcohol wipe clean without damaging the coating.
Spill Control That Actually Works

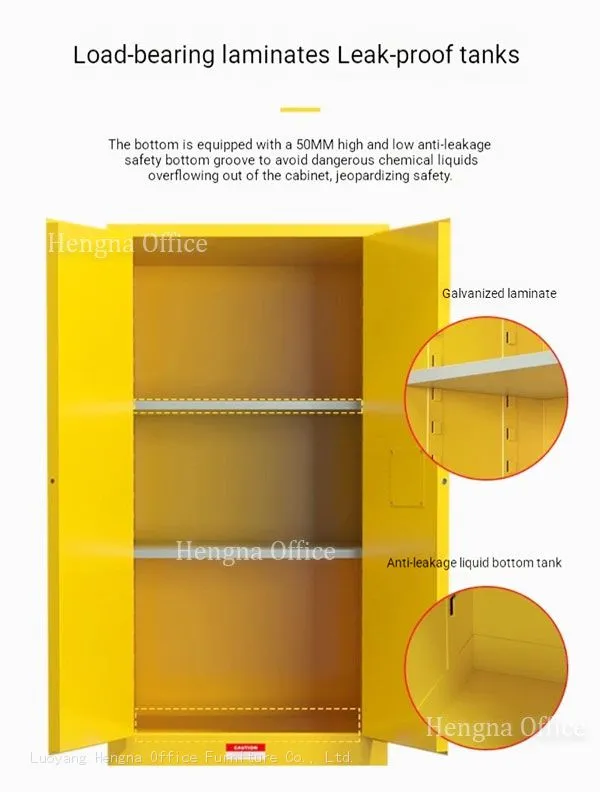

50mm Built-In Sump Tray
The bottom of the cabinet features a 50mm raised containment ledge running along the full perimeter. If a container leaks — and they do, more often than you’d expect — the liquid drains into the sump and stays there. It won’t spread across your workshop floor, won’t reach a drain, and won’t create a larger hazard. The sump capacity is designed to handle the full contents of a typical 5-liter bottle without overflow.

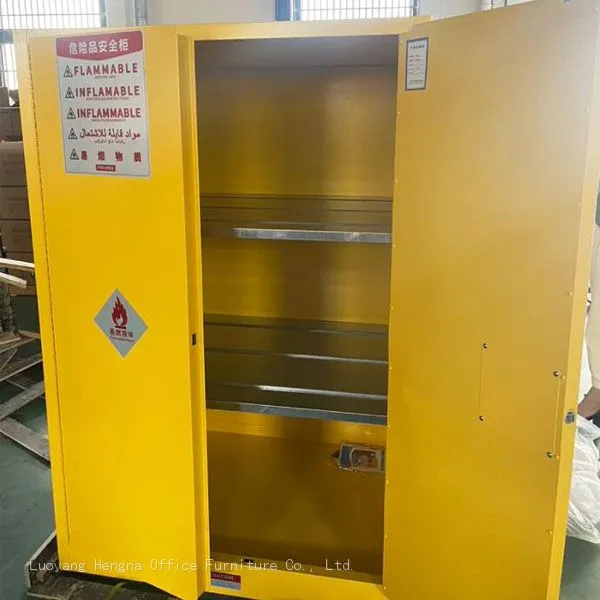

Galvanized Adjustable Shelves
Two galvanized steel shelves come standard. Both are height-adjustable, so you configure the interior based on what you’re actually storing. The galvanized coating provides an extra layer of corrosion resistance against chemical fumes that would eat through untreated steel shelves in a matter of months. Load capacity per shelf supports standard solvent containers without bowing.
Safe Access, Controlled Ventilation

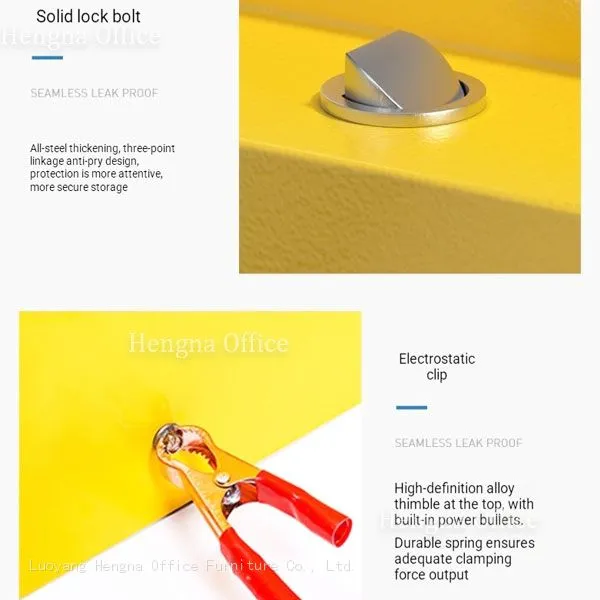

Double Door with Three-Point Lock
The cabinet uses a manual double-door design with a three-point cam lock mechanism. When you turn the key, locking bolts engage simultaneously at the top, middle, and bottom of the door edge. This creates a uniform seal that limits vapor escape and keeps unauthorized personnel out. The lock mechanism is all metal — no plastic components that degrade or jam over time.

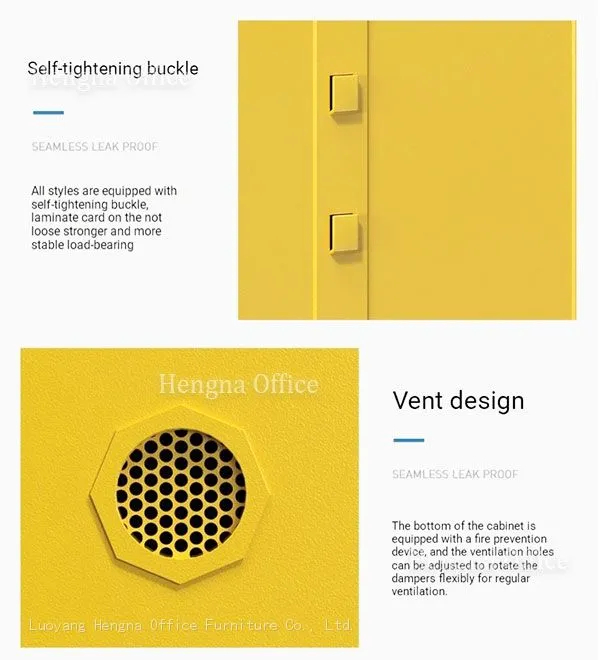

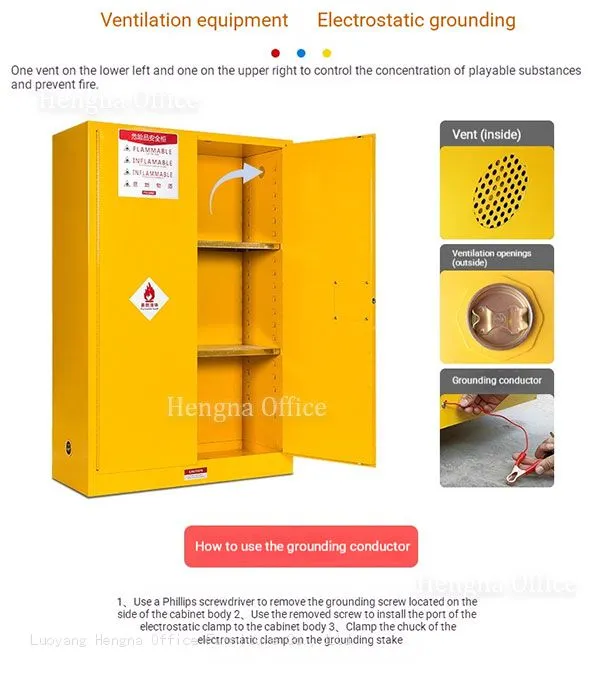

Dual Side Vents with Flash Arrestors
Chemical vapors accumulate inside any sealed container. Without ventilation, pressure builds and creates a concentration risk. Each side of the cabinet has a vented port equipped with a built-in flash arrestor. Under normal conditions, vapors dissipate through these vents. If external temperatures spike, the fusible link melts at 74°C (165°F) and the vent seals itself, blocking flames from entering the cabinet.
Static Grounding Connection
When you pour solvent from one container to another, static electricity builds up. A single spark near flammable vapor is all it takes. The cabinet includes a dedicated grounding lug on the exterior — connect it to your facility’s grounding system with standard grounding wire. It takes two minutes to set up and eliminates a genuine ignition risk.
Where This Size Fits Best
| Setting | What’s Inside | Why 30 Gallon |
|---|---|---|
| Chemistry / biology lab | Acetone, ethanol, methanol, toluene, xylene | Fits beside workbench, daily reagent access |
| Auto repair garage | Brake cleaner, gasoline, degreaser, WD-40 | Compact enough for narrow shop layouts |
| Electronics factory | IPA, flux remover, conformal coating | One per production line, chemicals stay close |
| Small batch workshop | Paint thinners, lacquers, wood stains | Covers hobby and light production volumes |
| Pharmaceutical facility | Ethanol, extraction solvents | GMP staging area, compact footprint |
| School / university lab | Teaching chemicals, disinfectants | Meets lab safety requirements, affordable price |
Specifications
| Item | Detail |
|---|---|
| Capacity | 30 Gallon (approx. 114 Liters) |
| Dimensions (H×W×D) | 1120 × 1090 × 460 mm |
| Material | 1.2mm cold-rolled steel, double-wall |
| Insulation | 38mm thermal air gap |
| Surface Finish | Epoxy powder-coated, chemical resistant |
| Door Type | Double door, manual, three-point cam lock |
| Shelves | 2 adjustable galvanized steel shelves |
| Sump | 50mm leak containment tray |
| Ventilation | Dual side vents with flash arrestors |
| Grounding | Built-in grounding lug |
| Color | Safety yellow with bilingual warning labels |
| Gross Weight | Approx. 75 kg |
FAQ
Q: Is 30 gallon the right size for me?
If you’re storing between 20-60 liters of flammable liquids on a regular basis, yes. It’s the most versatile size — big enough to be useful, small enough to fit in tight spaces. If you’re managing bulk quantities (200+ liters), consider the 60 or 110 gallon.
Q: Can I put paint cans and solvents in the same cabinet?
Yes, as long as all contents fall within the same hazard classification (flammable or combustible). Don’t mix flammable liquids with corrosive chemicals — those require separate cabinets by color code.
Q: How do I ground the cabinet?
Attach a grounding wire (minimum 18 AWG) from the grounding lug on the cabinet to your facility’s earth grounding point. Tighten the connection and verify continuity with a multimeter. Do this before storing any chemicals inside.
Q: Do I need ventilation ducting?
For most situations, passive ventilation through the side ports is sufficient. Active exhaust ducting is only necessary if your local fire code explicitly requires it, or if you’re storing particularly volatile chemicals in a confined space.
Q: What’s the lead time?
Standard models ship within 15-20 working days. Custom colors, sizes, or configurations available for bulk orders — send your requirements for a quote.
Direct From Factory, Honest Pricing
We manufacture these cabinets ourselves — no trading company markup, no middleman delays. Tell us what you’re storing and how much space you have — we’ll recommend the right size and give you a factory price. Straight talk, no pressure.
