In the field of pathology, the preservation of tissue samples and the management of associated reagents is a task of paramount importance. These samples often represent critical medical diagnoses, and the reagents used—such as high-concentration ethanol and xylene—are both valuable and hazardous. This High Security Laboratory Safety Cabinet is designed with a focus on maximum protection and access control, utilizing a sophisticated three-point locking mechanism to ensure that sensitive materials remain secure and uncompromised.
Uncompromised Security for Sensitive Materials
Pathology labs often face the dual challenge of preventing chemical accidents and securing restricted substances. Standard cabinets with simple latches are vulnerable to accidental opening or unauthorized access. This cabinet addresses these concerns through its robust door design.
1. Three-Point Linkage Locking System

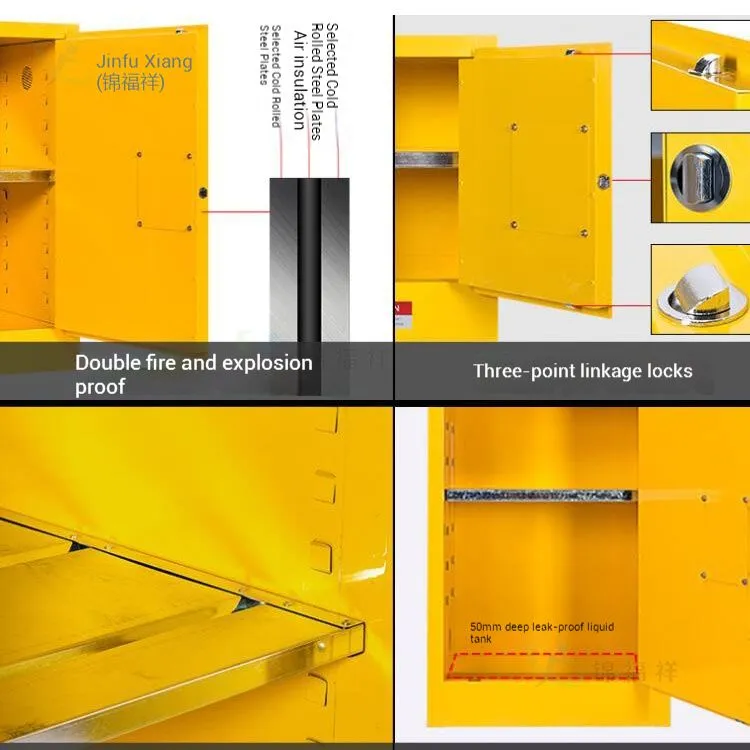

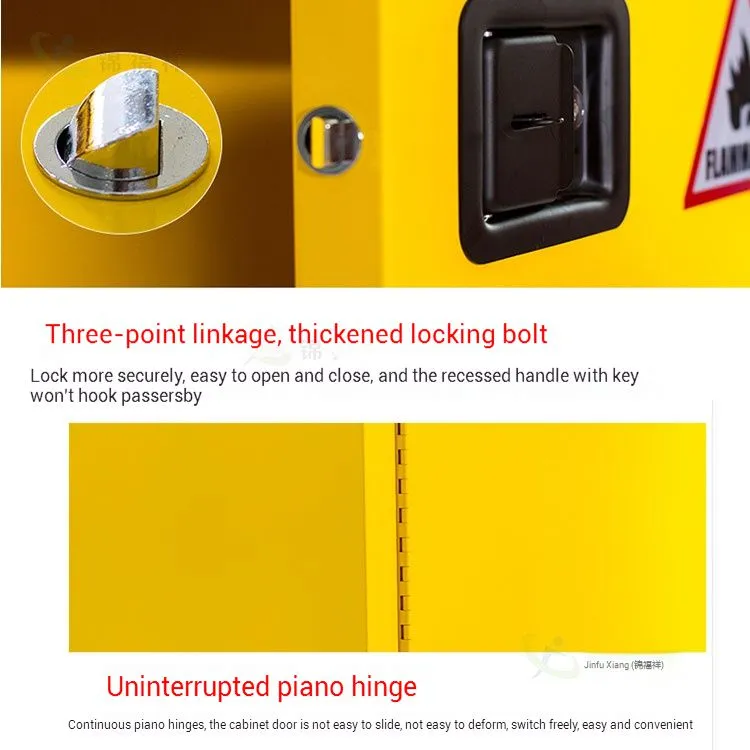

The core of this cabinet’s security is its advanced three-point linkage lock. Unlike standard single-point locks, this system engages the door at three separate locations—top, bottom, and side.
Vapor Seal Integrity: When the lock is engaged, it pulls the door tight against the cabinet frame, compressing the seal. This creates an airtight environment essential for preventing the escape of volatile organic compound (VOC) fumes from tissue fixatives.
Forced Entry Resistance: The multi-point locking system significantly increases the force required to pry the door open, acting as a strong deterrent against theft or unauthorized removal of controlled reagents.
Fire Safety: In the event of a fire, the intense pressure generated can blow doors open. The three-point mechanism mechanically anchors the door shut, maintaining the integrity of the fire barrier.
2. Optimized Internal Design for Sample Management
Pathology reagents come in various forms, from large carboys of formaldehyde to small vials of stains.
Adjustable Shelving System: The interior features high-strength galvanized steel shelves that can be adjusted in small increments. This flexibility allows lab managers to customize the storage layout to maximize space efficiency, ensuring that every bottle has a secure place and minimizing the risk of tipping.
Leak-Proof Sump Design: The bottom of the cabinet is designed with a deep, integrated sump. This design acts as a safety net; should a bottle of fixative break, the liquid is contained within the cabinet, preventing cross-contamination of samples and protecting the laboratory floor from chemical damage.
Structural Durability for Long-Term Reliability
A laboratory cabinet is an investment that must withstand years of use.
Double-Wall Construction: The cabinet features a double-layer steel structure with a 38mm air gap. This design not only provides a thermal barrier against external heat but also adds structural rigidity, ensuring the cabinet does not warp or deform over time.
High-Quality Finish: Finished with a durable epoxy powder coating, the cabinet resists stains and corrosion from chemical splashes, maintaining a professional appearance essential for medical environments.
Technical Specifications
| Feature | Design Benefit |
|---|---|
| Locking Mechanism | 3-Point Linkage Lock (High Security & Airtight Seal) |
| Material | Double-layer Cold-Rolled Steel (1.2-2.0mm) |
| Internal Layout | Adjustable Galvanized Steel Shelves |
| Spill Control | Integrated Bottom Sump (50mm Height) |
| Safety Signage | High-Visibility NFPA 704 Warning Label |
| Door Hinge | 90-Degree Limit Hinge for Stable Access |
For pathology laboratories handling irreplaceable tissue samples and hazardous reagents, standard storage is insufficient. This High Security Safety Cabinet, with its superior three-point locking mechanism and intelligent internal design, offers the precise control and protection required in modern medical facilities. It ensures that the focus remains on diagnosis and research, secure in the knowledge that storage risks are fully mitigated.
