Help CenterIndustrial Yellow Flammable Storage Cabinet for Chemical Warehouse & Spray Booth -Steel Fireproof Safety Cabinet 110 Gallon
Product Spotlights
Related Products
-
Yellow Flammable Liquid Storage Cabinet for Laboratory Chemical Safety - 30 Gallon Steel Cabinet Factory Direct PriceUS$ 60 - 700MOQ: 5 Combos -
22 Gallon Flammable Storage Cabinet for Auto Repair Shop & Garage - Yellow Steel Fuel & Solvent Safety CabinetUS$ 60 - 700MOQ: 5 Combos
-
60 Gallon Red Paint & Ink Storage Cabinet - Flammable Solid Steel Cabinet for Factory & Auto Repair ShopUS$ 68 - 400MOQ: 2 Combos
-
45 Gallon Blue Corrosive Liquid Storage Cabinet — PE-Lined Chemical Safety Cabinet for Laboratory & Industrial UseUS$ 68 - 400MOQ: 2 Combos
-
22 Gallon Flammable Storage Cabinet | NFPA 30 Compliant | Galvanized Shelves | 590mm Wide | Yellow — Compact Compliance For Tight Lab SpacesUS$ 60 - 700MOQ: 5 Combos
When You Store Large Quantities, Half Measures Won’t Cut It
A small lab cabinet works fine for a few bottles of acetone on a bench. But when you’re managing dozens of chemical drums, coating containers, and solvent pails across a warehouse floor, you need something built for serious volume. This 110-gallon yellow flammable storage cabinet is the largest standard size available — designed for facilities where chemical consumption is high, storage space is critical, and compliance is non-negotiable.
At 416 liters of storage capacity, this cabinet handles the kind of quantities found in large-scale manufacturing plants, chemical warehouses, automotive refinishing facilities, and industrial coating operations. It consolidates your flammable liquid storage into one controlled, fire-rated unit instead of scattered containers across the floor.
Engineering That Holds Up Under Pressure
Double-Wall Construction with 38mm Thermal Barrier
The cabinet is fabricated from 1.2mm cold-rolled steel on both the exterior and interior walls. Between them sits a 38mm fireproof insulation layer that acts as a thermal shield. If a fire breaks out in your facility, this barrier slows heat transfer to the cabinet’s interior, keeping stored liquids below their flash point for a critical window. That window can mean the difference between a contained incident and a facility-wide catastrophe.
1.5mm Welded Steel Hinges
Cheaper cabinets use stamped or riveted hinges that warp or fail after repeated opening and closing. This unit uses welded 1.5mm steel hinges — they don’t bend, they don’t loosen, and they maintain a consistent door seal over years of daily use. When you’re opening a cabinet multiple times per shift, hinge quality directly affects both safety and lifespan.
50mm Integrated Leak Containment Sump
Every cabinet bottom has a 50mm raised sump tray. If a 20-liter solvent drum develops a hairline crack or gets knocked during handling, the sump catches and contains the spill — up to its full capacity. No secondary containment setup required. The liquid stays inside the cabinet where it belongs.
Dual Side Vents with Flash Arrestors
Vapor buildup inside a sealed cabinet is dangerous. These vents provide continuous air circulation under normal conditions. Each vent port includes a flash arrestor — a mesh barrier that stops flames from entering while allowing vapor to escape. Under extreme heat, the fusible link releases at 165°F (74°C) and seals the vent automatically.
Built for High-Volume Operations
Full 1.5-Meter Width for Bulk Storage
At W1500mm, this is the widest standard flammable cabinet on the market. You can fit multiple 20-liter drums side by side on a single shelf, or use the full width for oversized containers that won’t fit in smaller cabinets. For warehouses that receive bulk chemical deliveries, this width eliminates the need to decant liquids into smaller bottles before storage.
Three-Point Reinforced Locking System
The double doors close with a three-point cam lock that engages at the top, middle, and bottom simultaneously. This distributes locking force evenly across the full door height, creating a tight seal that prevents vapor escape. One key operation — no fumbling with multiple latches.
Height-Adjustable Galvanized Shelves
Two galvanized steel shelves come standard. They’re fully adjustable, so you configure the interior layout based on what you’re actually storing. Tall paint cans on the bottom, smaller containers on top — or remove a shelf entirely to fit 200-liter drums. The galvanized coating resists chemical fume corrosion over extended use.
Exterior Grounding Connection Point
Static electricity is one of the most overlooked ignition sources in chemical storage. The cabinet includes a dedicated grounding lug with clear labeling. Connect it to your facility’s grounding system using standard grounding wire. This simple step eliminates the risk of static discharge igniting solvent vapors during dispensing operations.
Where This Cabinet Belongs
| Facility Type | Typical Contents | Why 110 Gallon |
|---|---|---|
| Chemical warehouse | Bulk solvents, paint thinners, fuel oils | Centralized storage for multiple production lines |
| Spray booth facility | Coatings, primers, reducers, thinners | Keeps coating materials close to application area |
| Automotive manufacturing | Gasoline, brake fluid, degreasers | High-volume daily chemical consumption |
| Pharmaceutical plant | Ethanol, methanol, reagent-grade solvents | GMP-compliant chemical staging |
| Mining operation | Fuel, lubricants, cleaning chemicals | Remote sites need on-site compliant storage |
| Government/military depot | Classified hazardous materials | Meets strict government procurement specs |
Technical Specifications
| Item | Detail |
|---|---|
| Capacity | 110 Gallon (approx. 416 Liters) |

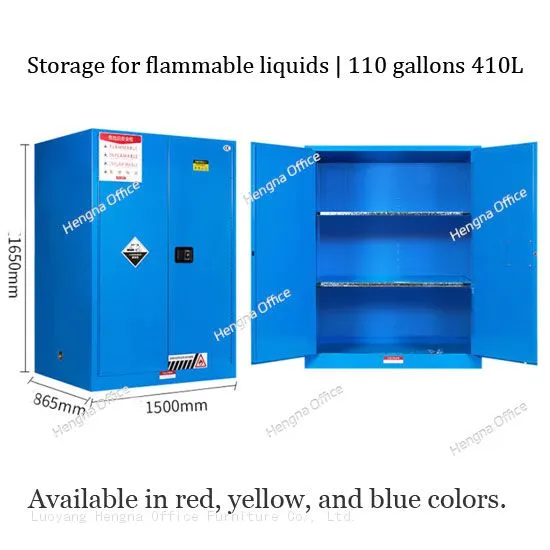

| Dimensions (H×W×D) | 1650 × 1500 × 860 mm |
| Material | 1.2mm cold-rolled steel, double-wall construction |
| Thermal Insulation | 38mm fireproof barrier |
| Surface Finish | Epoxy powder-coated, chemical and corrosion resistant |
| Door Type | Double door, manual, three-point cam lock |
| Hinges | 1.5mm welded steel |
| Shelves | 2 adjustable galvanized steel shelves |
| Sump | 50mm integrated leak containment |
| Ventilation | Dual side vents with flash arrestors, auto-seal at 165°F |
| Grounding | Built-in grounding lug with connection point |
| Color | OSHA safety yellow with bilingual warning labels |
| Compliance | OSHA 29 CFR 1910.106, NFPA 30 |
| Gross Weight | Approx. 180 kg |
FAQ
Q: What’s the maximum amount of liquid I can actually store in a 110-gallon cabinet?
OSHA allows up to 60 gallons of Class I or Class II liquids per cabinet. Despite the 110-gallon capacity designation, regulatory limits may cap your actual fill at 60 gallons depending on the liquid classification and local fire code. Always check your jurisdiction’s specific requirements.
Q: Can I store 200-liter (55-gallon) drums inside?
Yes. With the shelf removed, the interior clearance accommodates standard 200-liter drums. The 860mm depth provides enough room for most industrial drum sizes.
Q: Does this cabinet need ventilation ducting?
Passive venting through the side ports is sufficient for most applications. If your local fire code or insurance requirements specify active ducting, the vent ports can be connected to an exhaust system. Consult your fire marshal for site-specific requirements.
Q: What’s the difference between yellow, red, and blue cabinets?
Yellow stores flammable liquids (low flash point — gasoline, acetone, alcohol). Red stores combustible liquids (higher flash point — diesel, lubricants, hydraulic oil). Blue stores corrosive liquids (weak acids and alkalis). Never mix categories in the same cabinet unless explicitly permitted by your fire code.
Q: Can I get this customized?
Yes. We offer custom sizes, additional shelving, fork-lift base options, and custom warning labels for bulk orders. MOQ for custom configurations is 10 units. Standard models ship from stock.
Direct From the Factory — No Middleman Markup
We manufacture these cabinets in our own facility.
Send us your storage requirements — what chemicals, what quantities, what space you’re working with. We’ll recommend the right configuration and give you a straight price. No games.
