Technical guidance and spare parts supportXiongxing Precision Round Bead Machine
No.: 810802001
Model: E800D

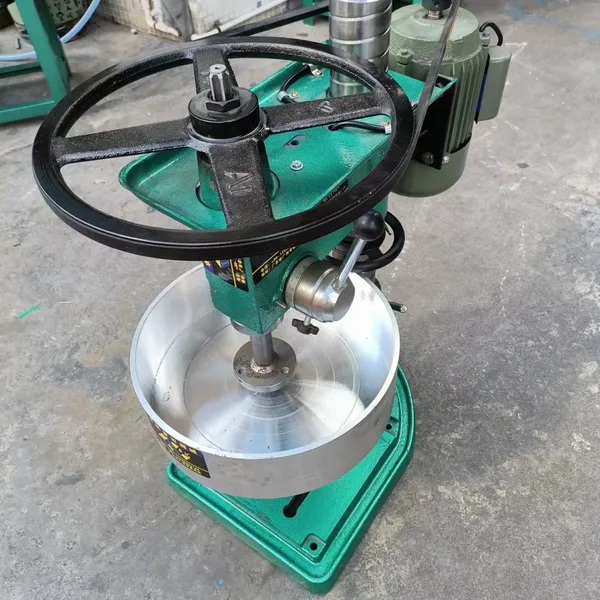

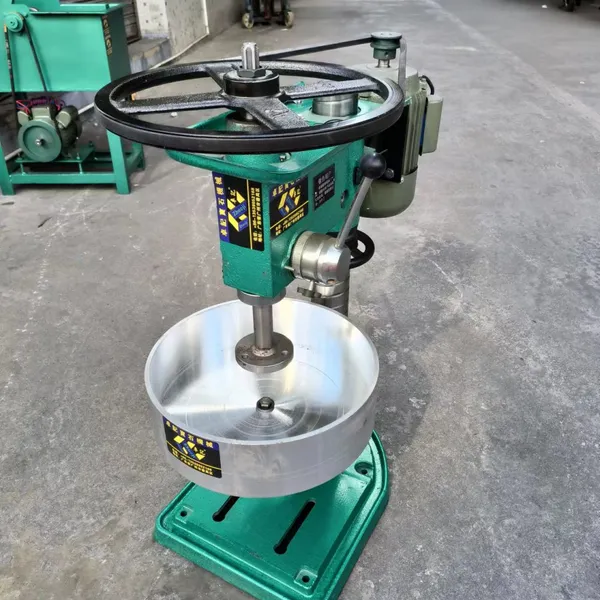

This machine is specifically designed for the fine grinding stage of round bead processing, used to further refine beads produced in the previous, achieving high-precision roundness. It adopts a direct-through drive shaft structure, which reduces intermediate connection points compared to traditional models, offering excellent coaxiality and extremely high roundness accuracy, with a machining precision of up to 0.03 mm.
Applicable materials: Precious stones, agate, crystal, jadeite, turquoise, shells, and various types of stone for precision rounding.

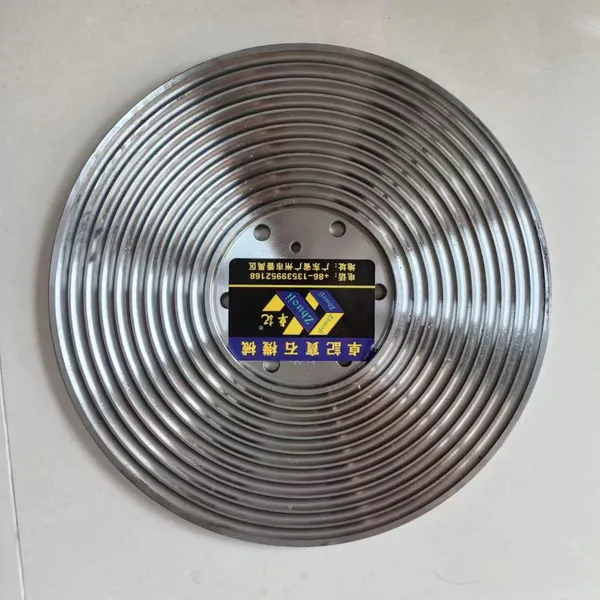

Operation: Place the beads processed by the intermediate disk machine into the round bead disk. Depending on the hardness of the material and the desired bead size, different specifications of round bead disks can be selected.
The machine features a precision-machined shaft and a high-quality domestic standard motor, ensuring stable and powerful operation, and consistent processing quality.
Purpose: To grind near-round beads into rounder, more uniform beads.
Technical Specifications:
Input Voltage: AC 220V / 380V
Output Power: 750W
Spindle Speed: 320 r/min
Dimensions: 65 * 36 * 75 cm
Packaging Weight: 50 kg
Packaging Volume: 0.26 m³
Ball Production Process Flow: Material Selection → Slicing → Stripping → Cubing → Chamfering and Deburring → Rough Shaping → Precision Lapping → Drilling → Polishing → Waxing.
