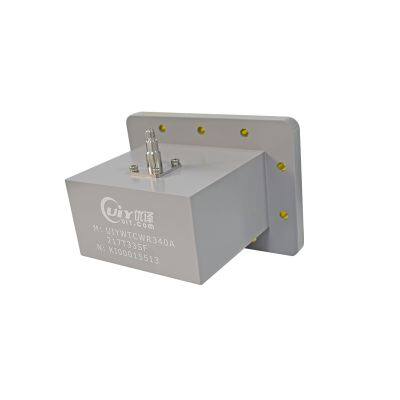

WR340 Waveguide to Coaxial Adapter
Design Features
◆ High RF performance, ultra-competitive price.
◆ Military, space and commercial applications.
◆ Custom design available upon request.
◆ Support one year standard warranty.
RF Characteristics
Model Number |
UIYWTCWR340A217T33NF UIYWTCWR340A217T33SF UIYWTCWR340A217T33DF |
Freq.Range (GHz) |
2.17 to 3.3 |
Insertion Loss Max(dB) |
0.2 |
VSWR Max |
1.15 |
Connector Type (Waveguide) |
WR340(BJ26) |
Connector Type (Coaxial) |
N-F, S-F, 7/16-F |
CW Power (W) |
100 |
Peak Power (KW) |
3 |
Temp.(°C) |
-55 to +85 |
Warranty |
1 year |
Certificate |
ISO 9001, ISO 14001, RoHS, REACH |
Other Related Products：
RF Isolators
RF Circulators
Attenuator/Termination
RF Filters
Power Divider/Splitter
Duplexer/Triplexer
TX RX Combiner/Splitter
Hybrid Combiner
Directional Coupler
Waveguide to Coaxial Adapter
Applications:
1. Radar System
2. Telecom Infrastructure
3. Microwave Radio Systems
4. Communication Systems
5. Wireless Radio Systems
6. R&D labs
7. Public Address System Radio Transmitter
8. Biomedical Instrumentation
9. 4G LTE 5G NR Mobile Communciations
If you have any customized inquiries, please contact us promptly.
