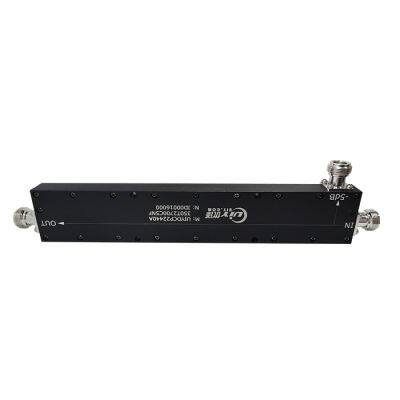

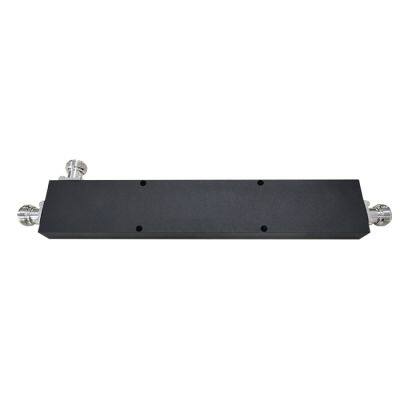

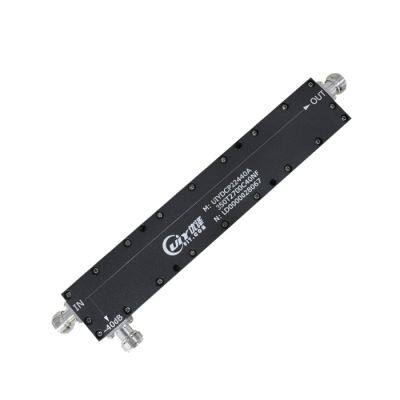

350 to 2700MHz – Directional Coupler
Design Features
◆ High RF performance, ultra-competitive price.
◆ Military, space and commercial applications.
◆ Custom design available upon request.
◆ Support one year standard warranty
RF Characteristics
Model No.: UIYDCP22440A350T2700C30NF
Freq.Range (MHz): 350 ~ 2700
Nominal Coupling(dB): 30±2.0
IL.(dB): 0.2
Directivity (dB)Min: 18
VSWR: 1.3
Power (W): 200
Connector Type: N-F
Temp.(°C): -35~+65
Other Related Products：
RF Isolators
RF Circulators
Attenuator/Termination
RF Filters
Power Divider/Splitter
Duplexer/Triplexer
TX RX Combiner/Splitter
Hybrid Combiner
Directional Coupler
Waveguide to Coaxial Adapter
Applications:
1. Radar System
2. Telecom Infrastructure
3. Microwave Radio Systems
4. Communication Systems
5. Wireless Radio Systems
6. R&D labs
7. Public Address System Radio Transmitter
8. Biomedical Instrumentation
9. 4G LTE 5G NR Mobile Communciations
If you have any customized inquiries, please contact us promptly.
