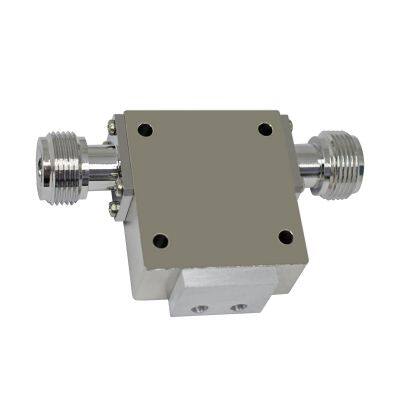

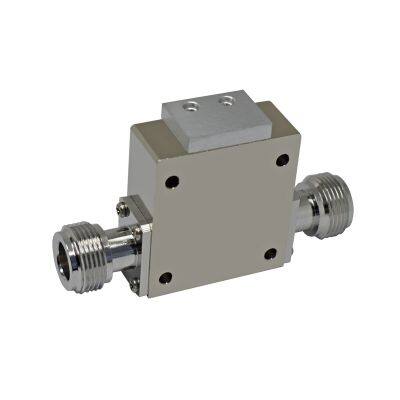

Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication

Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication thumbnail-1
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication thumbnail-2
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication thumbnail-3
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication thumbnail-4
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication thumbnail-5
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication photo-1
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication photo-2
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication photo-3
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication photo-4
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile Communication photo-5
US$ 45 - 65 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
UIY
Place of Origin:
China
Model Number:
UIYCI2538A700T5000SF
Contact Supplier Request Quote Chat Now
UIY Inc.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
14 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name UIY
Place of Origin China
Model Number UIYCI2538A700T5000SF


UIY RF Coaxial Isolator Custom Design available:

  •Operating Frequency up to 40GHz.

  •Connector Type optional SMA, N, K, BNC, 2.92mm, 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders.

  •Power up to 5000W.

Select the appropriate connector according to the working frequency and purpose.

UIY Inc. provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.



10MHz to 1875MHz, FM, VHF, UHF
Model Name
Data Sheet		 Frequency
(MHz)		 Loss
(dB)		 Isolation
(dB)		 VSWR Forward
(W)		 Reverse
(W)		 Connector
Type		 Temp.
(°C)		 Dimension
(mm)
UIYCI8080A 10~55 1.2 20 1.25 50 50 N, SMA +10~+60 80×80×28
UIYCI6060A 45~270 0.5 25 1.15 200 50 N, SMA -30~+70 60×60×28
UIYCI6075A 45~270 0.5 25 1.15 200 100 N, SMA -30~+70 60×75×28
UIYCI80140B 60~200 0.3 23 1.2 500 250 N 0~+70 80×140×18
UIYCI100166A 70~130 0.5 20 1.25 500 250 N 0~+70 100×160×40
UIYCI5656A 140~300 0.4 23 1.2 300 30 N,SMA -30~+70 56×56×15
UIYCI5663A 140~300 0.4 23 1.2 300 100 N,SMA -30~+70 56×63.5×15
UIYCI3538A 200~1875 0.3 35 1.15 300 30 N, SMA -40~+85 35×38×15
UIYCI3556A 200~1875 0.3 35 1.15 300 100 N, SMA -40~+85 35×56×15
UIYBCI6060F 225~400 0.8 18 1.3 160 50 N, SMA 0~60 60×60×28
1 16 1.4 -40~+85
UIYBCI6075F 225~400 0.8 18 1.3 160 100 N, SMA 0~60 60×75×28
1 16 1.4 -40~+85
UIYCI4550A 250~1500 0.3 23 1.15 300 30 N, SMA -30~+70 45×50×24
UIYCI4580A 250~1500 0.3 23 1.15 300 250 N, SMA -30~+70 45×80×24
UIYBCI6060H 300~475 0.8 18 1.3 100 50 N, SMA 25±5 60×60×28
1 17 1.35 -40~+85
UIYCI5356A 300~1500 0.3 23 1.2 500 30 N -40~+85 53×56×20










700MHz to 40GHz, L, S, C, X, Ku, K, Ka band
WCDMA, LTE, NR, 3G, 4G, 5G mobile communications

Model Name
Data Sheet		 Frequency
(GHz)		 Loss
(dB)		 Isolation
(dB)		 VSWR Forward
(W)		 Reverse
(W)		 Connector
Type		 Temp.
(°C)		 Dimension
(mm)
UIYCI3434A 0.7~2.0 0.3 23 1.15 200 30 N, SMA -40~+85 34×34×22
UIYCI3232A 0.7~2.5 0.3 23 1.15 200 30 N, SMA -40~+85 32×32×18
UIYCI2528A 0.7~5.0 0.3 23 1.15 200 30 N, SMA -40~+85 25.4×28.5×15

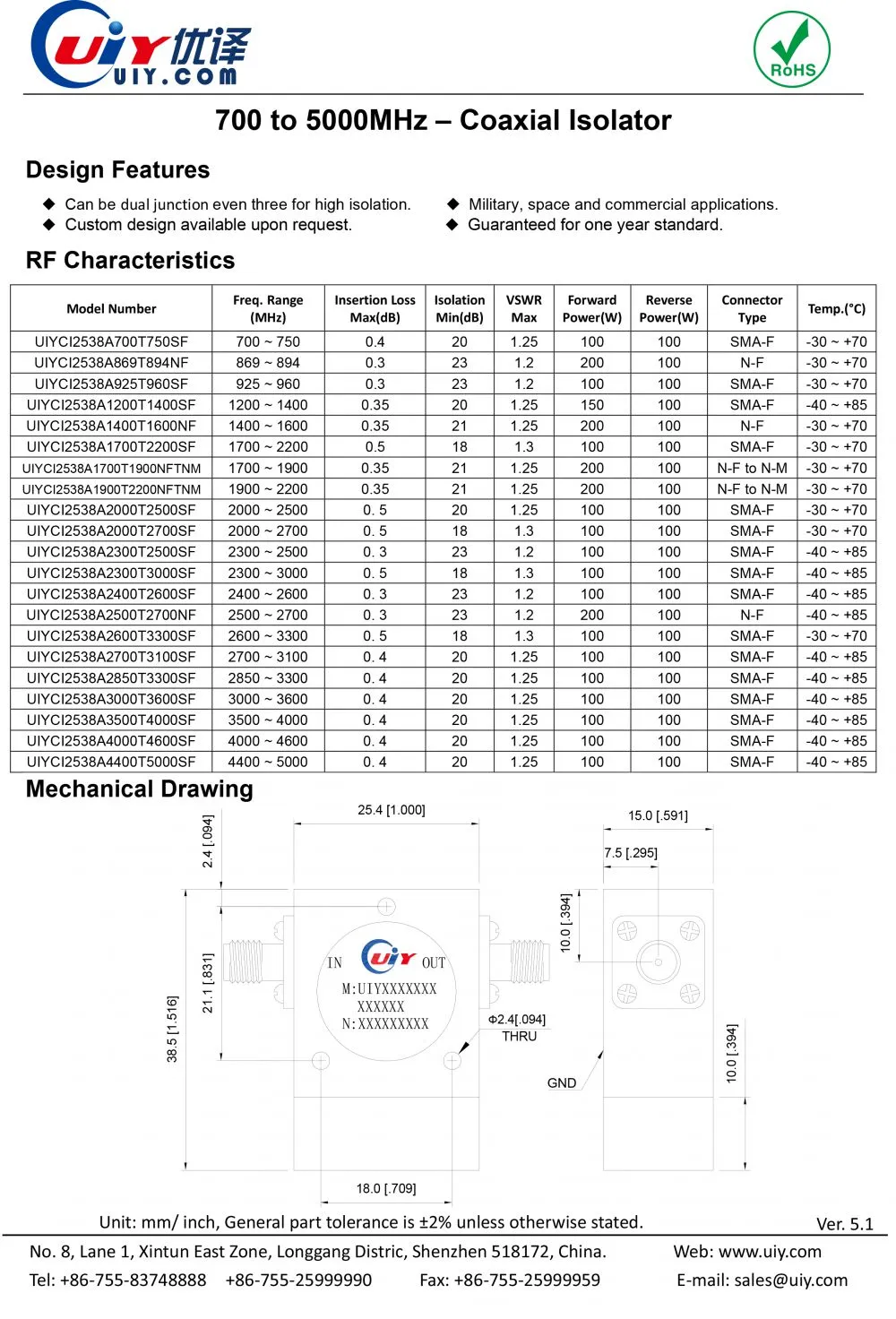

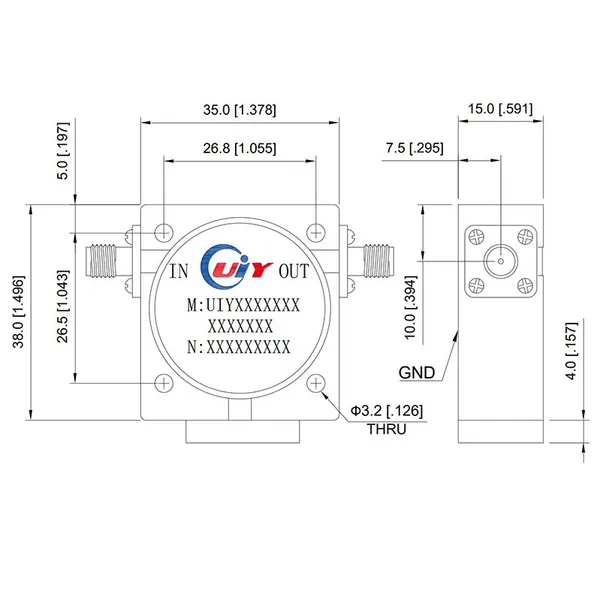

UIYCI2538A 0.7~5.0 0.3 23 1.15 200 100 N, SMA -40~+85 25.4×38.5×15
UIYCI1522A 4.0~7.2 0.3 23 1.2 60 10 N, SMA -40~+85 15×22.5×13.8
UIYCI1318A 6.0~27.5 0.3 23 1.2 60 10 SMA, 2.92mm -55~+85 13×18×13.8
UIYBCI1024A 18.0~26.5 1.6 16 1.6 10 2 2.92mm -30~+70 10×24×9.3
UIYBCI1025A 18.0~26.5 0.7 20 1.3 10 2 2.92mm -55~+85 10.2×25.6×12.5
23.0~28.0 0.9 20 1.3 10 2 2.92mm -55~+85 10.2×25.6×12.5
UIYBCI1318D 26.5~40.0 1.2 15 1.5 10 2 2.92mm -55~+85 13×18×12.7

Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time.



Product Tags: Isolator Coaxial , Ferrite Isolator , RF Isolator , 700-3800MHz , 2400-2500MHz , 4400-5000MHz
