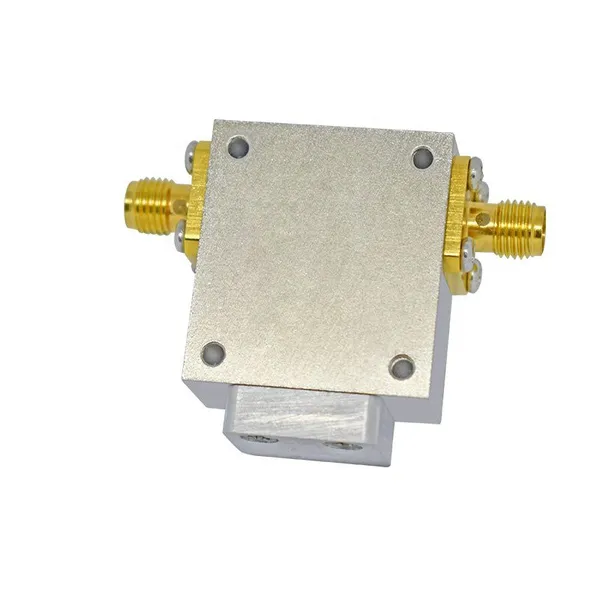

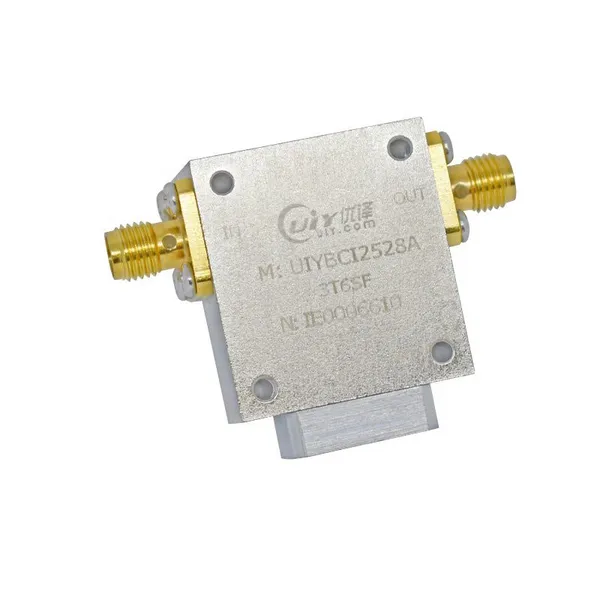

Help CenterOperating Frequency 700-5000MHz Custom Design Coaxial Isolator
Related Products
-
Optional Frequency Range 700-5000MHz RF Isolator Coaxial Ferrite Isolator for 3G 4G 5G Mobile CommunicationUS$ 45 - 65MOQ: 1 Piece -
Wide Frequency 26.5 ~ 40.0GHz Ka Band Isolator RF Ferrite Coaxial Isolator With 2.92mm-F ConnectorCNY 2600 - 2980MOQ: 1 Piece
-
Wide Frequency 18.0-26.5GHz K Band Isolator Coaxial RF Ferrite Isolator With 2.92mm-F Connector TypeCNY 1619 - 1873MOQ: 1 Piece
-
Wide Frequency 18.0-26.5GHz K Band Isolator Coaxial RF Ferrite Isolator With 2.92mm-F Connector TypeCNY 2412 - 3079MOQ: 1 Piece
-
Factory Prices Optional Frequency 4.0-7.2GHz Coaxial Isolator RF Ferrite IsolatorCNY 285 - 380MOQ: 1 Piece
UIY RF Coaxial Isolator Custom Design available:
•Operating Frequency up to 40GHz.
•Connector Type optional SMA, N, K, BNC, 2.92mm, 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders.
•Power up to 5000W.
Select the appropriate connector according to the working frequency and purpose.
UIY Inc. provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.
|
10MHz to 1875MHz, FM, VHF, UHF | ||||||||||
Model No. Data Sheet |
Frequency |
Band Width |
Loss |
Isolation |
VSWR |
Forward |
Reverse |
Connector |
Temp. |
Dimension |
UIYCI8080A |
10~55 |
20% |
1.2 |
20 |
1.25 |
50 |
50 |
N, SMA |
+10~+60 |
80×80×28 |
UIYCI6060A |
45~270 |
40% |
0.5 |
25 |
1.15 |
200 |
50 |
N, SMA |
-30~+70 |
60×60×28 |
UIYCI6075A |
45~270 |
40% |
0.5 |
25 |
1.15 |
200 |
100 |
N, SMA |
-30~+70 |
60×75×28 |
UIYCI80140B |
60~200 |
20% |
0.3 |
23 |
1.2 |
500 |
250 |
N |
0~+70 |
80×140×18 |
UIYCI100166A |
70~130 |
20% |
0.5 |
20 |
1.25 |
500 |
250 |
N |
0~+70 |
100×160×40 |
UIYCI5656A |
140~300 |
15% |
0.4 |
23 |
1.2 |
300 |
30 |
N, SMA |
-30~+70 |
56×56×15 |
UIYCI5663A |
140~300 |
15% |
0.4 |
23 |
1.2 |
300 |
100 |
N, SMA |
-30~+70 |
56×63.5×15 |
UIYCI3538A |
200~1875 |
40% |
0.3 |
35 |
1.15 |
300 |
30 |
N, SMA |
-40~+85 |
35×38×15 |
UIYCI3556A |
200~1875 |
40% |
0.3 |
35 |
1.15 |
300 |
100 |
N, SMA |
-40~+85 |
35×56×15 |
UIYBCI6060F |
225~400 |
Full |
0.8 |
18 |
1.3 |
160 |
50 |
N, SMA |
0~60 |
60×60×28 |
1.0 |
16 |
1.4 |
-40~+85 |
|||||||
UIYBCI6075F |
225~400 |
Full |
0.8 |
18 |
1.3 |
160 |
100 |
N, SMA |
0~60 |
60×75×28 |
1.0 |
16 |
1.4 |
-40~+85 |
|||||||
UIYCI4550A |
250~1500 |
30% |
0.3 |
23 |
1.15 |
300 |
30 |
N, SMA |
-30~+70 |
45×50×24 |
UIYCI4580A |
250~1500 |
30% |
0.3 |
23 |
1.15 |
300 |
250 |
N, SMA |
-30~+70 |
45×80×24 |
UIYBCI6060H |
300~475 |
Full |
0.8 |
18 |
1.3 |
100 |
50 |
N, SMA |
25±5 |
60×60×28 |
1.0 |
17 |
1.35 |
-40~+85 |
|||||||
UIYCI5356A |
300~1500 |
18% |
0.3 |
23 |
1.2 |
500 |
30 |
N |
-40~+85 |
53×56×20 |
|
700MHz to 40GHz, L, S, C, X, Ku, K, Ka band WCDMA, LTE, NR, 3G, 4G, 5G mobile communications | ||||||||||
Model No. Data Sheet |
Frequency |
Band Width |
Loss |
Isolation |
VSWR |
Forward |
Reverse |
Connector |
Temp. |
Dimension |
UIYCI3434A |
0.7~2.0 |
40% |
0.3 |
23 |
1.15 |
200 |
30 |
N, SMA |
-40~+85 |
34×34×22 |
UIYCI3232A |
0.7~2.5 |
35% |
0.3 |
23 |
1.15 |
200 |
30 |
N, SMA |
-40~+85 |
32×32×18 |

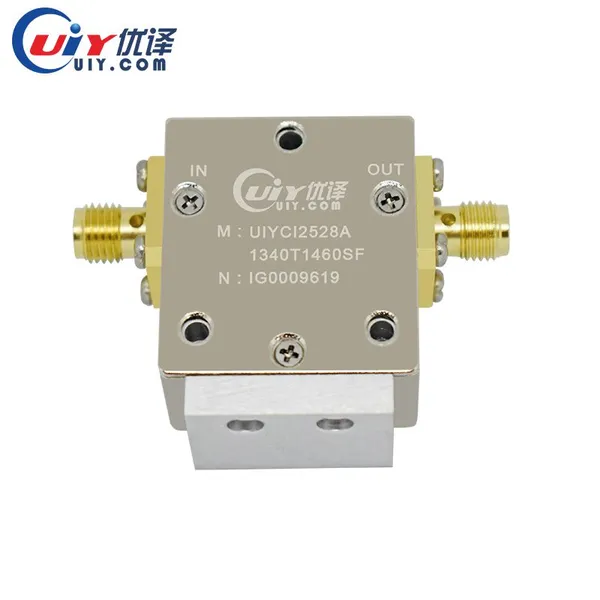

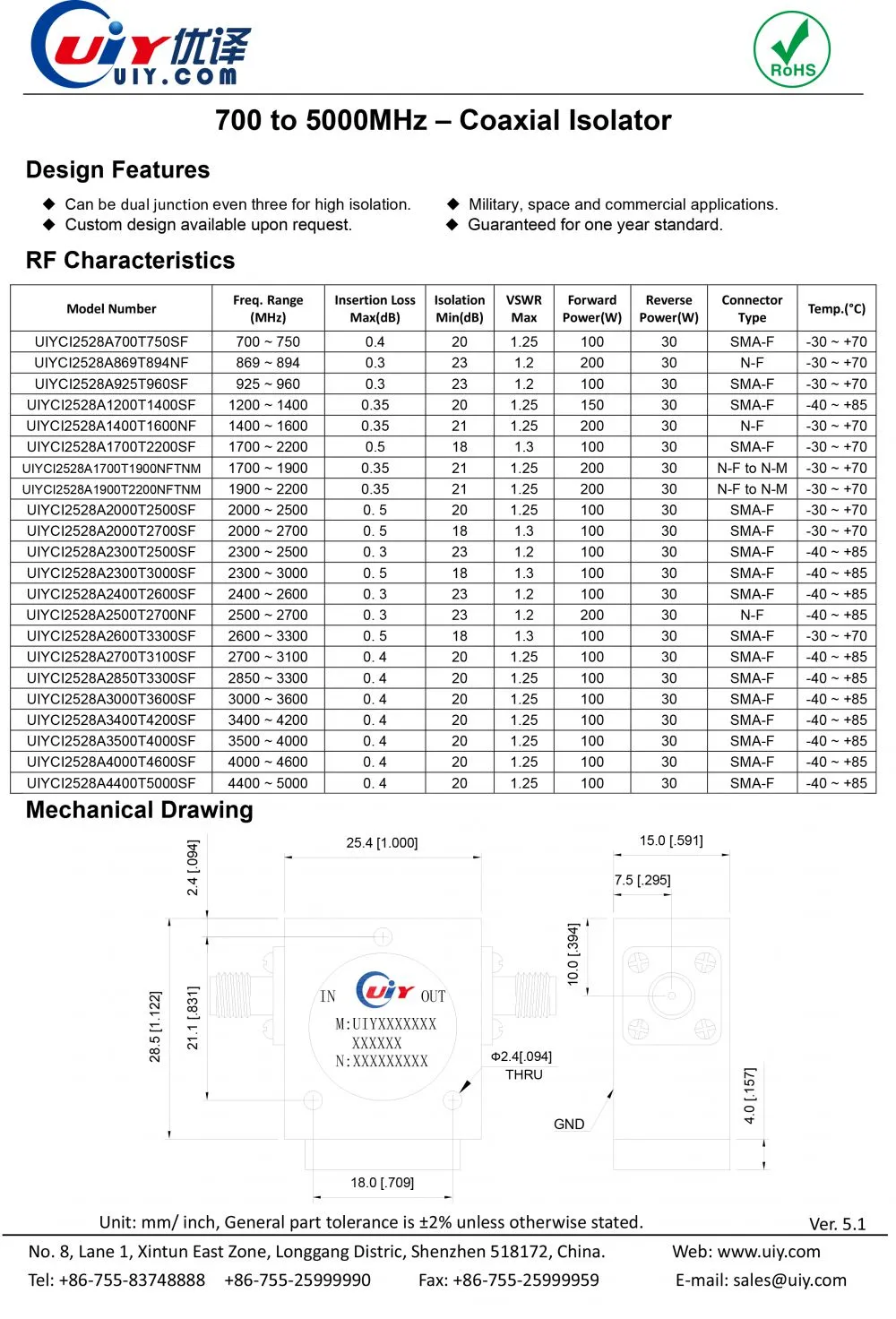

UIYCI2528A |
0.7~5.0 |
30% |
0.3 |
23 |
1.15 |
200 |
30 |
N, SMA |
-40~+85 |
25.4×28.5×15 |
UIYCI2538A |
0.7~5.0 |
30% |
0.3 |
23 |
1.15 |
200 |
100 |
N, SMA |
-40~+85 |
25.4×38.5×15 |
UIYCI1522A |
4.0~7.2 |
25% |
0.3 |
23 |
1.2 |
60 |
10 |
N, SMA |
-40~+85 |
15×22.5×13.8 |
UIYCI1318A |
6.0~27.5 |
75% |
0.3 |
23 |
1.2 |
60 |
10 |
SMA, 2.92mm |
-55~+85 |
13×18×13.8 |
UIYBCI1024A |
18.0~26.5 |
Full |
1.6 |
16 |
1.6 |
10 |
2 |
2.92mm |
-30~+70 |
10×24×9.3 |
UIYBCI1025A |
18.0~26.5 |
Full |
0.7 |
20 |
1.3 |
10 |
2 |
2.92mm |
-55~+85 |
10.2×25.6×12.5 |
UIYBCI1025A |
23.0~28.0 |
Full |
0.9 |
20 |
1.3 |
10 |
2 |
2.92mm |
-55~+85 |
10.2×25.6×12.5 |
UIYBCI1326A |
26.5~40.0 |
Full |
1.2 |
15 |
1.5 |
10 |
2 |
2.92mm |
-55~+85 |
13×26×16.6 |
Send Inquiry to This Supplier
