Ok. Here are the technical parameters and detailed product descriptions of Honeywell gas solenoid valve V4944B1018.

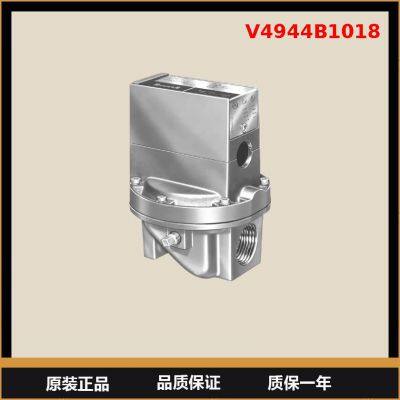

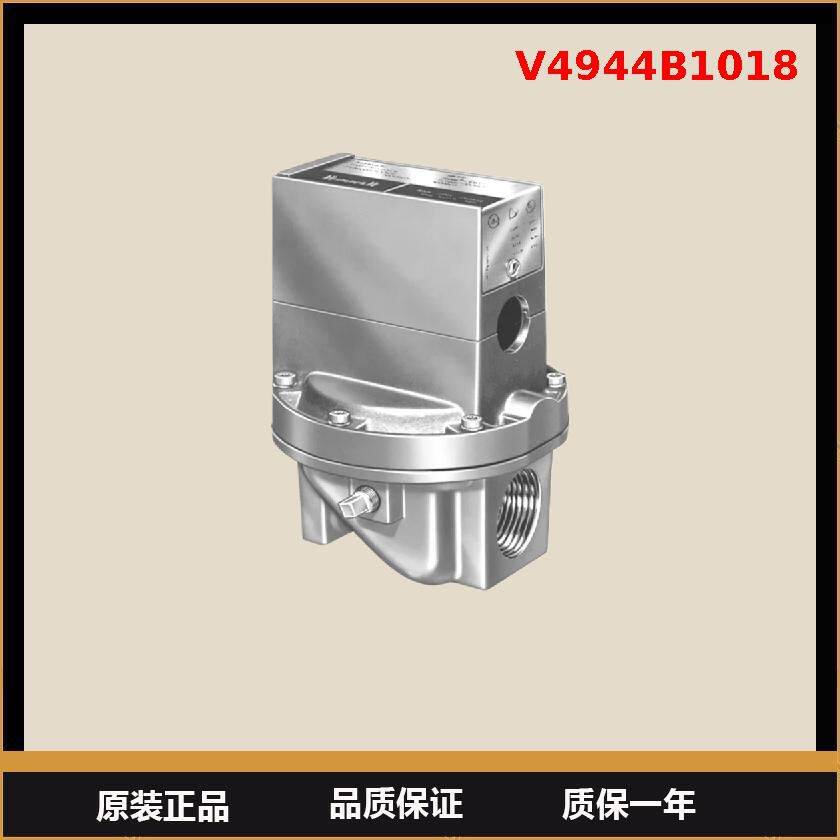

Product Description of Honeywell Gas Solenoid Valve V4944B1018
Honeywell V4944B1018 is a high-performance and highly reliable Normally Closed gas safety shut-off solenoid valve. It belongs to Honeywell's mature V4944 series and is specifically designed for commercial and industrial gas applications, such as large boilers, industrial furnaces, commercial kitchen equipment and central heating systems, etc. The core function of this valve is to quickly and safely cut off the gas supply when the system detects faults (such as flameout, abnormal pressure or power interruption), and it is a key actuating component in the gas safety control system.
This valve is renowned for its robust cast valve body, outstanding sealing performance and long service life. It is usually used in conjunction with Honeywell or other brand gas combustion controllers (such as the RM789 series). After receiving control signals, it turns on and allows gas to pass through. When the control signal disappears or the emergency cut-off is triggered, the valve will close instantly to ensure safety. Its interior usually adopts a soft-sealed design, ensuring extremely high cut-off airtightness and preventing gas leakage. The design of V4944B1018 can adapt to harsh industrial environments and provide stable and reliable performance.
Technical parameters
The following are the main technical specifications of Honeywell V4944B1018 solenoid valve:
Parameter items, technical specifications
| : - | : - |
Product Model: V4944B1018
** Valve Type ** : Normally closed type (opens when powered on and closes when powered off
** Mode of action ** Direct motion type
** Pipe interface ** Flange connection (for specific flange standards such as DN/PN, please refer to the product label or manual
** Applicable media ** : Natural gas, liquefied petroleum gas (LPG), artificial gas and other combustible gases
** Voltage Specification ** : Alternating current (AC), commonly 220V/50Hz or 240V/50Hz (** Please note: ** The specific voltage should be based on the valve body label; there are other voltage versions available.
** Power consumption ** : The typical value is approximately 50 VA (at rated voltage)
** Working pressure range ** * Maximum inlet pressure: ** Up to 500 mbar (kPa) or higher (please refer to the official data sheet for details)
