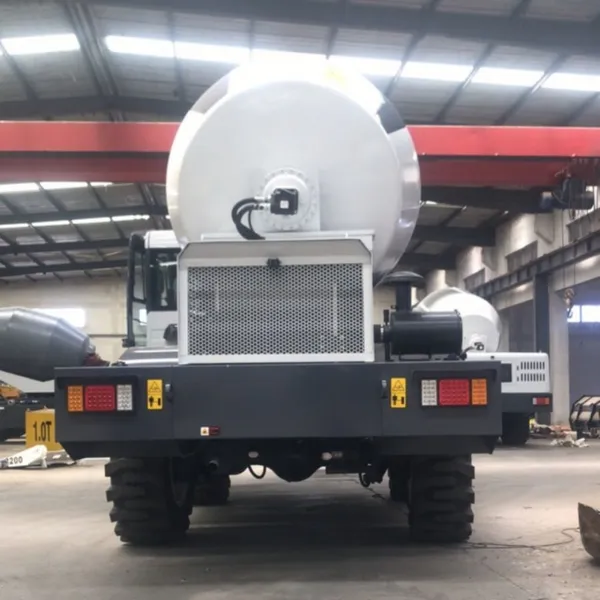

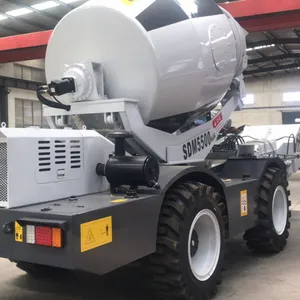

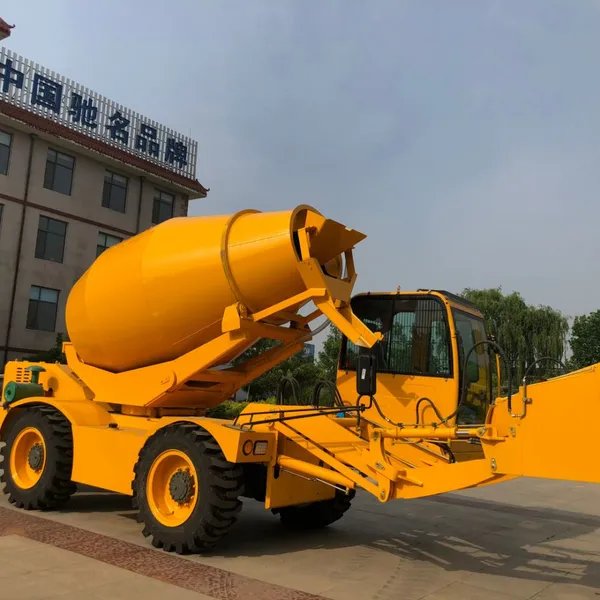

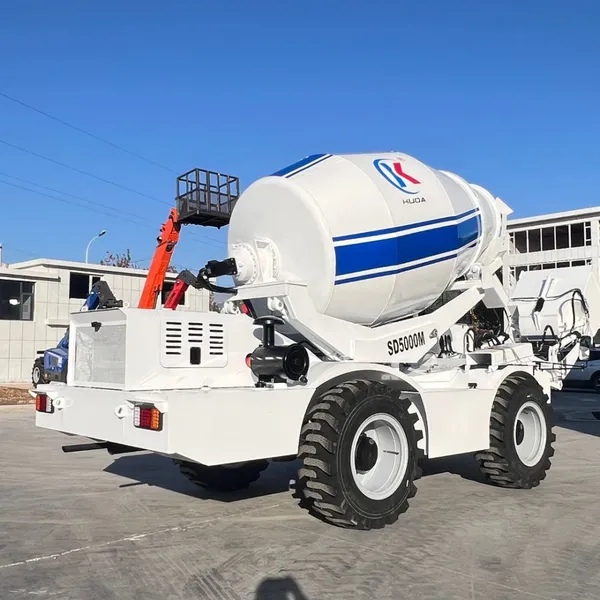

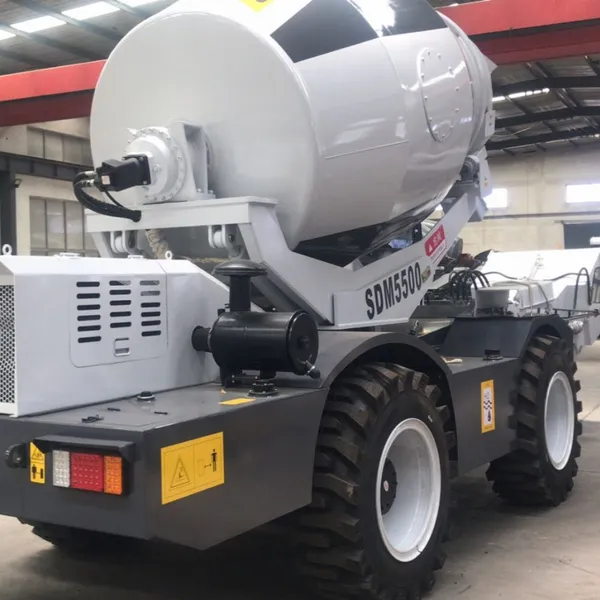

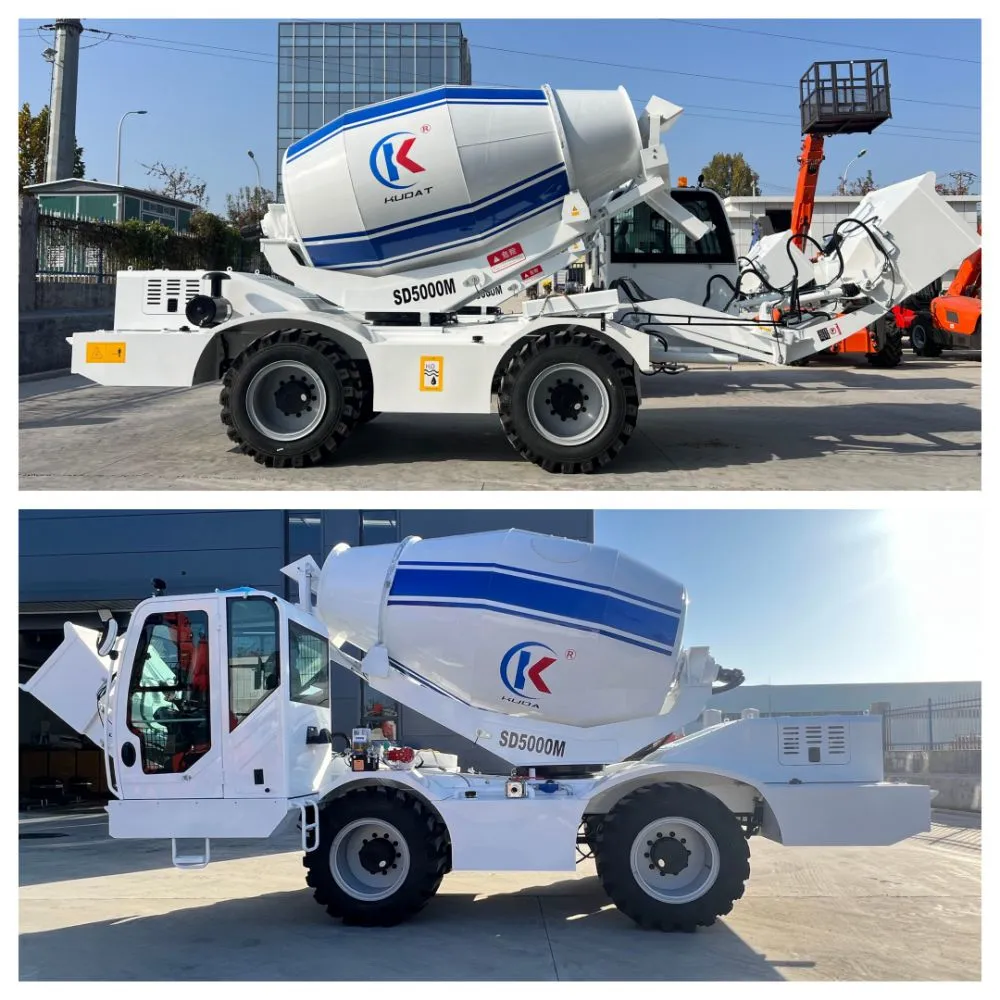

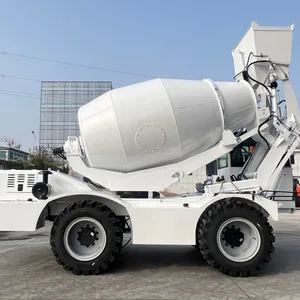

Self-loading Concrete Mixer SD5000M
Automatic Feeding Mixer replace generators, loaders, mixers and even more than six staffs, it is
a new generation leading products of Industry construction. The drum can be rotated at 270 degrees with no
dead angles
1. Leading design, automatic feeding mixing system.
2. Easy to operate.
3. Efficient output, saving time, effort and cost.
4. Mixing tanker and loader, the transport truck is a
perfect combination into the whole.
5. Rotated at 270 degrees mixing and discharge.
Specification：
MODEL NO |
Model: SD5000M |
TYPE |
Integral frame chassis movable, self-loading, mixing, transporting |
FUNCTION |
concrete, sand, fertilizer compound, wet or dry feed materials mixing and discharging |
PRODUCTIVITY |
BATCH≤15MINS, 4BATCHS/HOUR |
Drive |
4 x 4 |
Steering |
Front steering |
ENGINE |
YUCHAI ENGINE: FOUR-CYLINDER 2200RPM,110KW |
SPEED |
HIGH SPEED: 38.5KM/H; LOW SPEE:7.5KM/H |
Gear number |
Three forwards, three backwards |
Fuel consumption |
Idle state 2L-3L, working state 8L-10L. |
TIRE |
16/70－24(Steel wire tire) |
DRUM |
Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters |
Spiral blade in tank |
Double helix mixing, with the guide screw, so that the mixing material more uniform. Turn the feed left, turn the discharge right |
mixing tank 270°discharges |
The tank rotates horizontally to 270 degrees. There is no dead Angle for discharging around the vehicle |
TIPPING CHUTE |
Equipped with 2 chutes for detachable to increase discharging length |
Tilt of mixing tank |
16° |
SHOVEL |
Shovel capacity: 0.72³ |
Bucket discharge switch |
Hydraulic gate, electric control |
OPERATION HANDLE |
ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE |
MOVING HYDRAULIC |
PUMP: DENGHONG |
Torque converter |
|
Work hydraulic |
PUMP/valve: DENGHONG |
Mixing system |
SPEED REDUCER |
Mixing motor |
|
Drive axle |
LIUFENG |
WATER SUPPLY |
HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
HIGH-PRESSURE WATER PUMP WASH |
HIGH-PRESSURE WATER PUMP WASH |
Weighing system |
Electronic weighing system (language optional） |
VOLTAGE |
Battery 24V-100A 2 pieces |
HYDRAULIC OIL BOX |
TANKAGE180L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL |
Water tank capacity |
620L |
Diesel tank capacity |
190L |
Whole weight |
COMPLETE VEHICLE KERB MASS 9200kg |

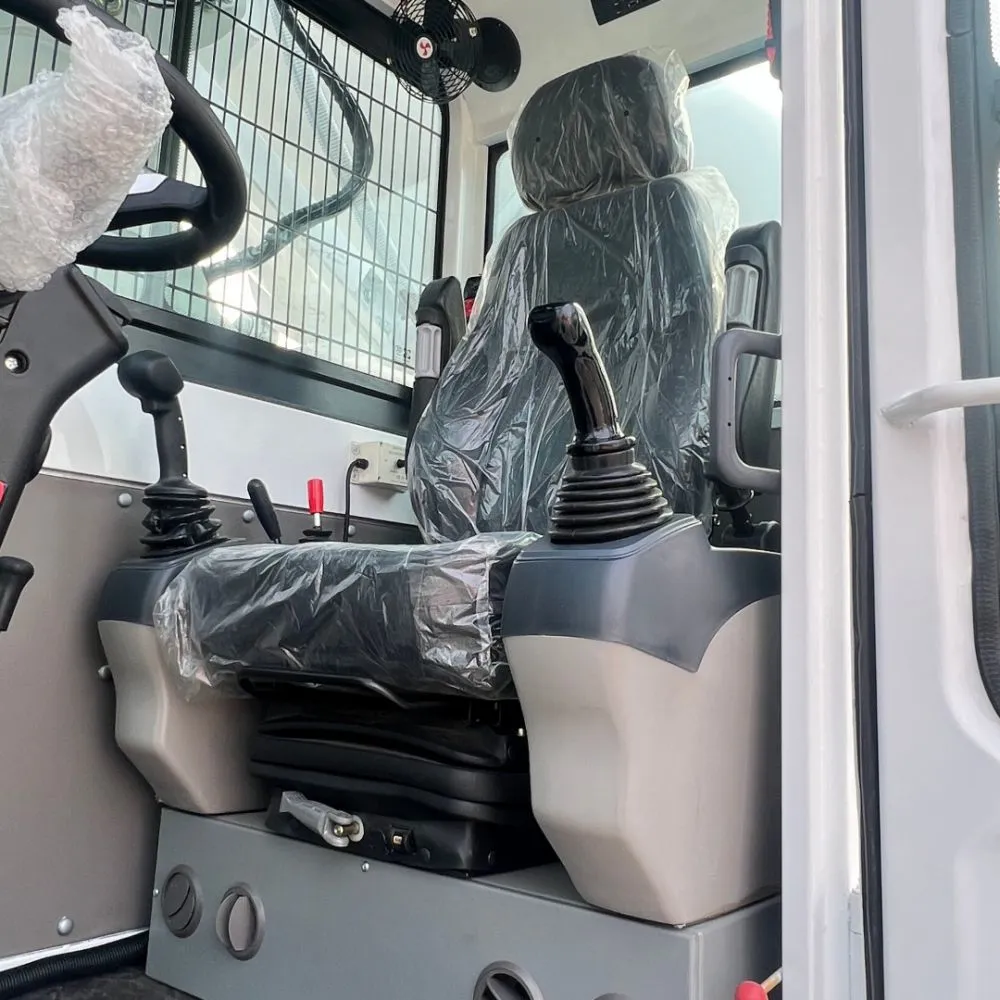

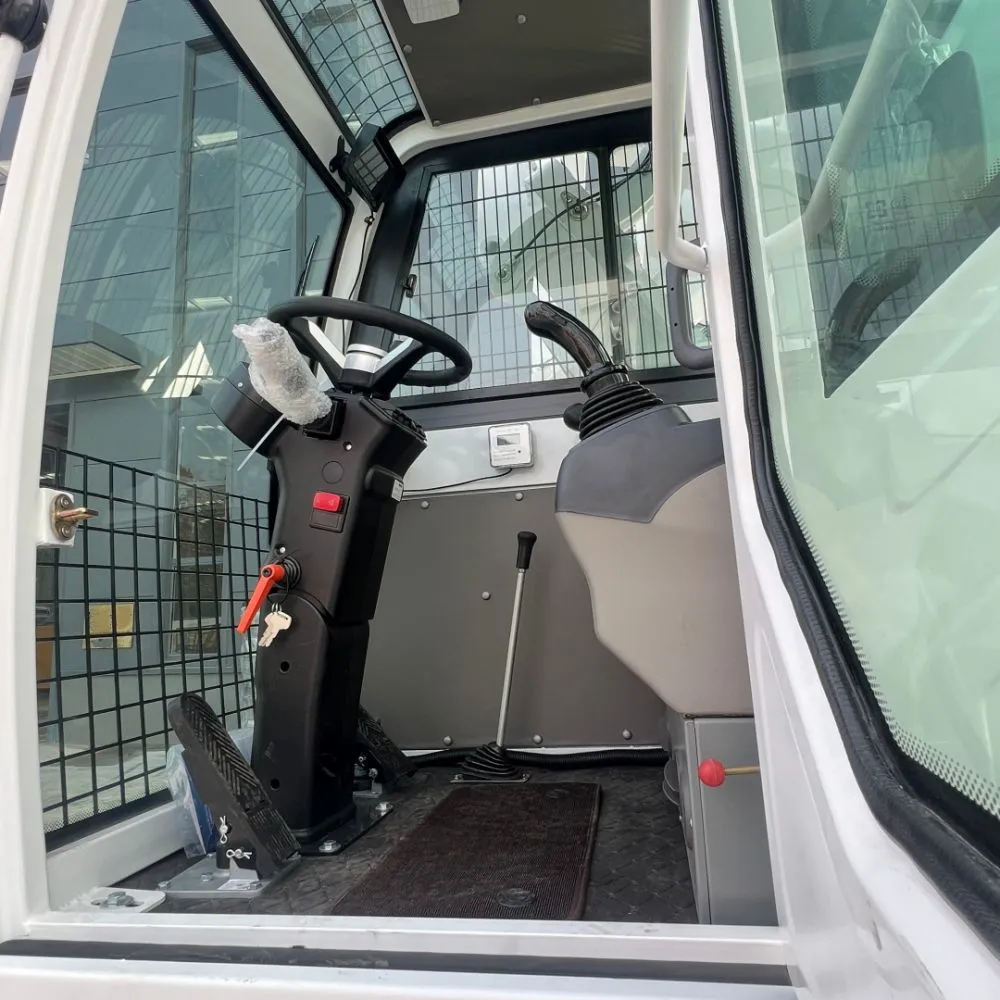

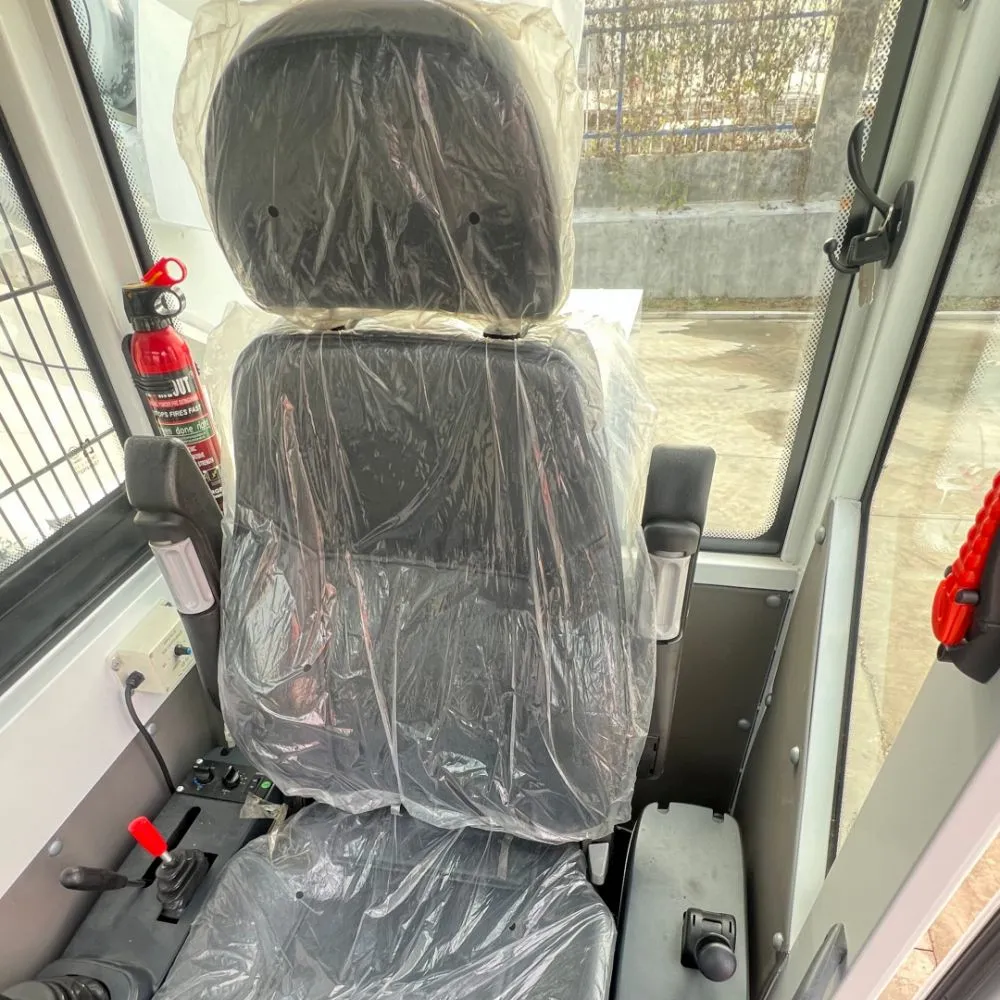

CAB |
Prevent falling objects cab |

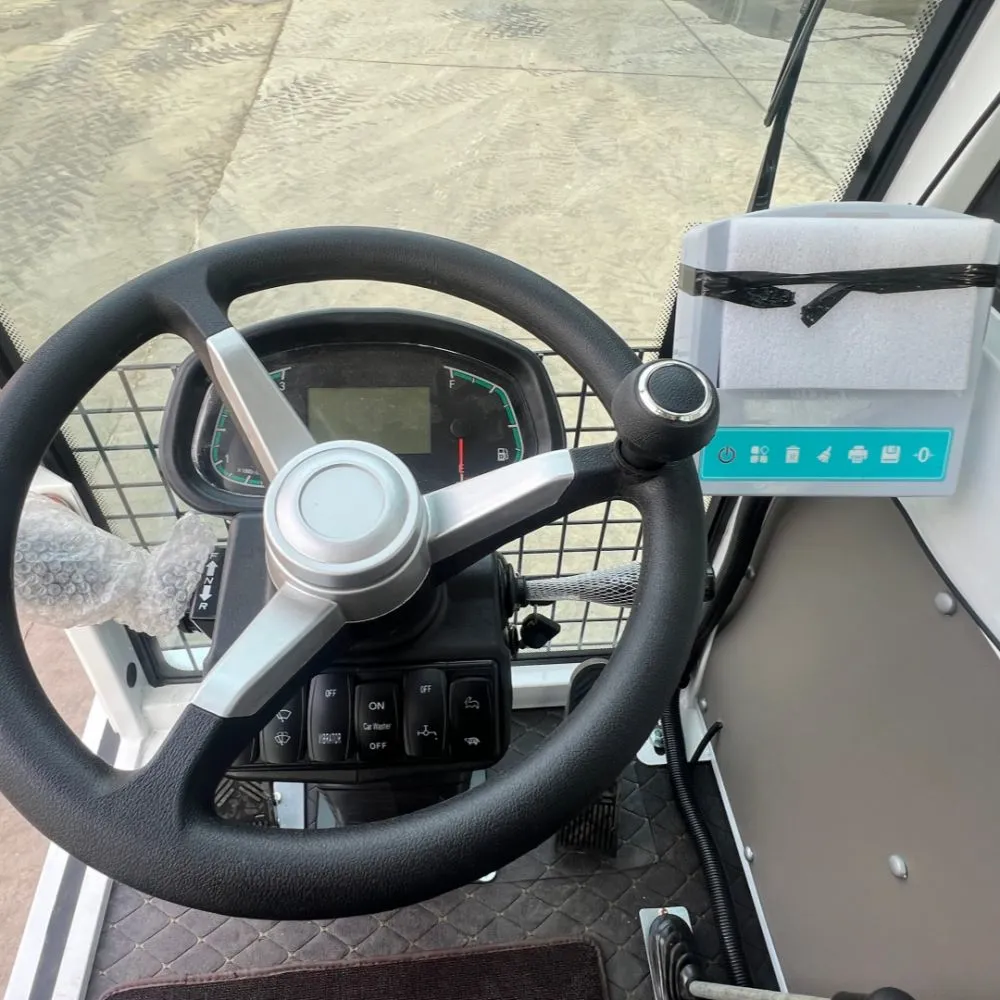

Adjustable steering wheel |
|
Adjustable seat |
|
Seat belts |
|
Fire extinguisher |
|
Astern image |
|
ALARM LAMP |
STANDARD CONFIGURATION |
RADIO |
STANDARD CONFIGURATION |
A/C |
Optional |
ESCAPE HAMMER |
STANDARD CONFIGURATION |
Astern sound prompt |
STANDARD CONFIGURATION |
Walking control mode |
STANDARD CONFIGURATION：Electric control |
