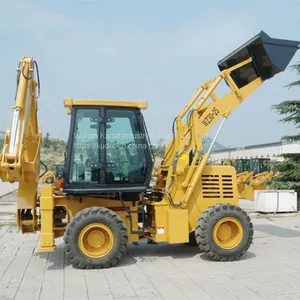

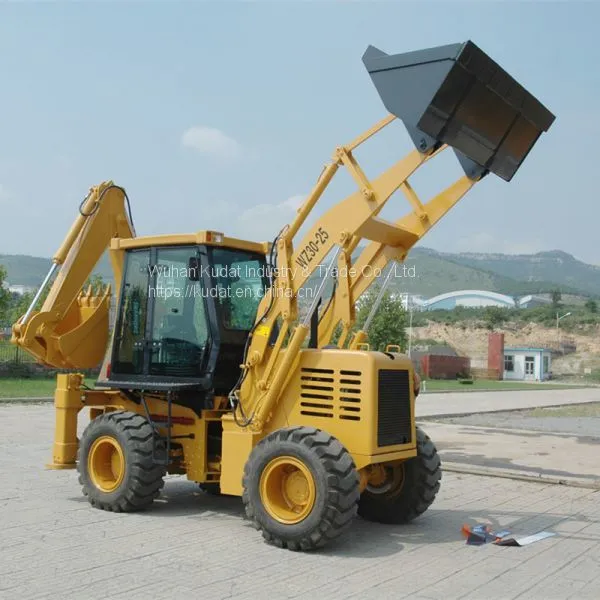

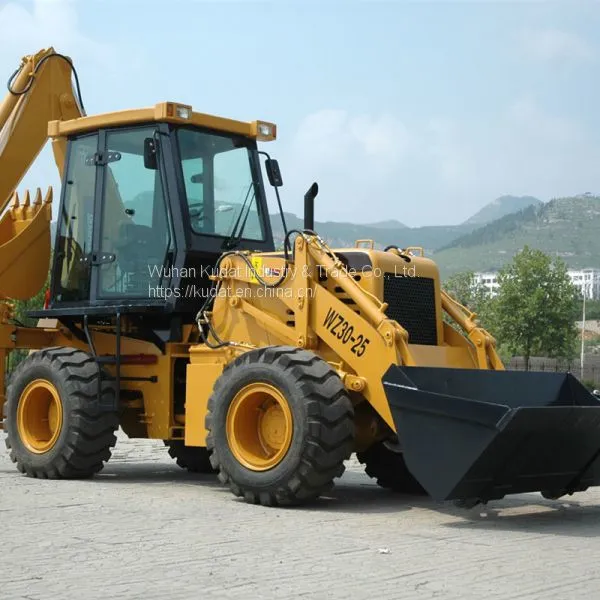

Help CenterMini Backhoe Loaders WZ30-25
Related Products
WZ30-25 backhoe loader adopted the USA John Deere backhoe loader technology, its engine, main pumps, motor, valve, etc. are from China first-class factories. It is widely used in municipal projects, building, raod maintenance, water conservancy, electricity supply, military project, and so on.
Main Feature
▲ Cabin
Humanized design, luxurious damping seat with 360°rotating, wide-vision glass, easy for operation.
▲ Power system
R4105/R4110 diesel engine made by YTO or Weichai China, vertical, 4-strock, water cooled 55kW/67kW diesel engine.
▲ Transmission system
Fully hydraulic system, rear hoe part adopts pilot control, and front load part could be equipped with pilot control, as option.
▲ Double rocker arm for front load part.
▲ Side slide for rear hoe part, sliding range 1.2m.
Technical parameter
Operating weight | 7640Kg | Final Reducer | Single stage final reducer |
Transportation dimension | 5910x2268x3760mm | Rated Loader of Axle | 7.5t |
Wheel base | 2250mm | Transmission system | |
Torque Convertor | |||
Min. ground clearance | 300mm | Model | YJ280 |
Loading bucket capacity | 1.0m3 | Type | Single-stage, Three elements |
Breakout force | 38KN | Max. efficiency | 84.4% |
Loading lifting capacity | 2500kg | Inlet pressure | 0.4Mpa---0.55Mpa |
Bucket dumping height | 2742mm | Outlet pressure | 1.2Mpa—1.5Mpa |
Bucket dumping distance | 1062mm | Cooling method | Oil-cooling Pressure Circulation |
Digging depth | 52mm | Gearbox | |
Backhoe capacity | 0.3m3 | Type | Fixed shaft power transmission |
Max.digging depth | 4082mm | Oil pressure of clutch | 1373Kpa --- 1569Kpa |
Swing Angle of Excavator Grab | 190° | Gears | Two gears forward, two gears backward |
Max. puling force | 39KN | Max. Speed | 22Km/h |
Engine | Tyre | ||
Model | YTR4108G60-1 | Model | 16/70---20 |
Type | Vertical, direct inject, 4-stroke, combustion chamber | Pressure of front wheel | 0.22 Mpa |
Pressure of rear wheel | 0.22 Mpa | ||
Cylinder-Inside diameter*stroke | 4---108*120 | Brake system | |
Rated power | 55KW | Service brake | Air over oil caliper brake |
Rated speed | 2400r./min. | External type | |
Min. fuel consumption | ≤216g/km.h | Self-regulation | |
Max. Torque | ≥261.7N.M/1800r./min. | Self-balance | |
Displacement | 4.4L | Emergency brake | Power asst. |
Manual asst. | |||
Steering system | |||
Model of steering device | BZZ5---250 | Hydraulic system | |
Steering angle | ± 36° | Hoe bucket digging power | 46.5KN |
Type | 5018mm | Dipper digging power | 31KN |
Model of tuming control valve | 12Mpa | Bucket lifting time | 5.4S |
Axle | Bucket lowering time | 3.1S | |
Main transmission type | Double reduction | Bucket discharge time | 2.0S |
1. Overall Dimension
No. | Description | Parameter |
1 | Overall Length | 5900mm |
2 | Overall Width | 2300mm |
3 | Overall Height | 3769mm |
4 | Cab roof height | 2900mm |
5 | Wheelbase | 2250mm |
6 | Track | 1640mm |
7 | Mini. Ground Clearance | 300mm |
8 | Max. Gradeability | 30° |
