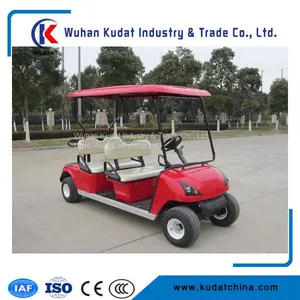

Help CenterGolf Cart
Related Products
Drive Type | 4*2 Rear-wheel drive | |
Rated capacity (including driver) | 4Persons | |
Dimensions（L*W*H） | 3140*1180*1800mm | |
Wheel base | 2420mm | |
Front / rear track | 870/980 | |
Curb weight | 610kgs | |
Maximum load | 480kgs | |
Minimum turning radius | 4m | |
Minimum ground clearance | 100mm | |
Maximum vehicle speed | 24km/h | |
Maximum grade ability | 20% | |
Max drove slope | 20% | |
Braking distance | ≤4.2m | |
Charging time | 8-12H | |
Driving range on one charge | 80km | |
Battery | 6V216AH*6 or 8V170AH*6 | |
Power of Motor | 48V4KW | |
Controller | American Curtis Electronics Controller 1268－5403（48V400A) | |
Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System | |
Charger | Full Automatic Efficiency Pulse Charger | |
Rear-Suspension | Leaf Spring With Hydraulic Shock Absorbers | |
Steering | Self Compensating "Rack & Pinion" Steering | |
Brakes | Rear Wheel Mechanical Drum Brake and Regeneration Brake | |
QTY Per Container | 12pcs/40FT | |
