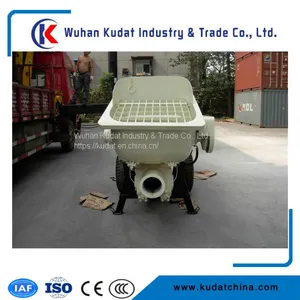

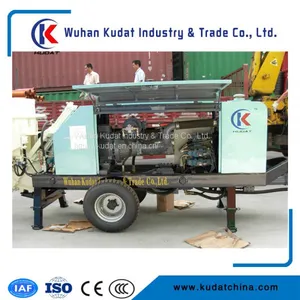

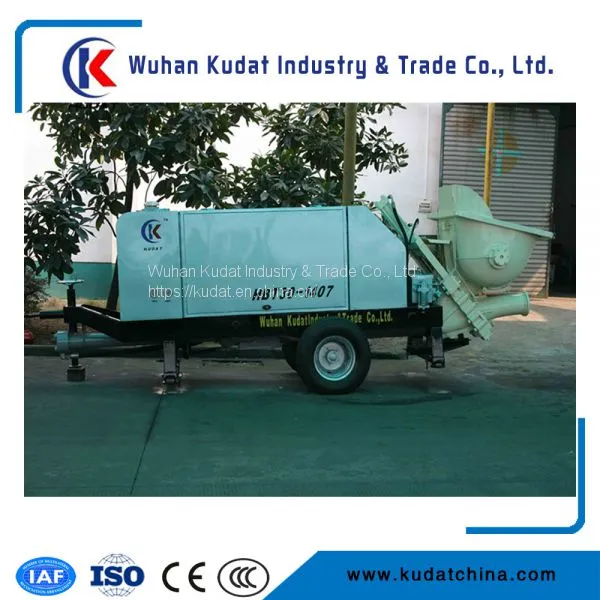

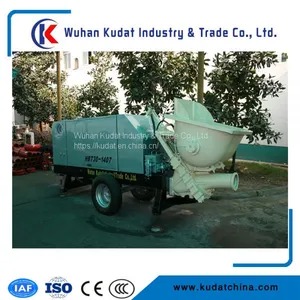

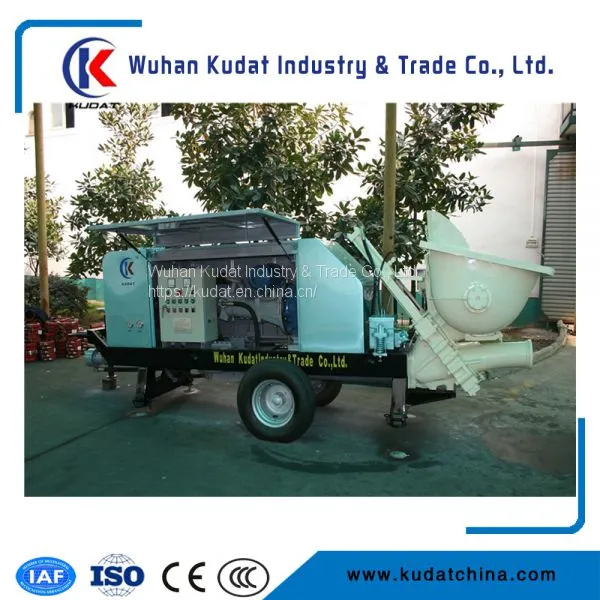

Electric Concrete Pump
US$ 30000 - 35000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
KUDAT
Place of Origin:
China
Model Number:
HBT30-1407
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
KUDAT
Place of Origin
China
Model Number
HBT30-1407
Certification
CE,ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12month
Weight
2600kgs
Dimension(L*W*H)
5060×1200×1760mm
Power Type
Electric
Condition
New
Power(W)
45kw
Specification | HBT30-1407 |
Valve | Slide valve |
Max. concrete pump pressure | 7.4Mpa |
Max. thero. Concrete delivery | 27m3/ h |
Max. vertical delivery | 110 M |
Max. horizontal delivery | 500 M |
Max. aggregate size | 40(125A) |
Diameter of delivery cylinder ×stroke | Ф195×1400mm |
Slump | 8-23cm |
Oil cylinder ×stroke | Ф100×1400mm |
Hopper capacity/ material feeding height | 0.25/1380 m3/mm |
Main electric motor | 45kw(37kw optional ) |
Mixing electric motor | 4kw |
Power supply | 380V/50Hz |
Total quality | 2600kg |
Overall dimension | 5060×1200×1760mm |
