Help CenterABB GRBTU 3BSE013175R1 DP Slave Communication Adapter
Related Products
-
ABB 500TRM02 1MRB150011R1NegotiableMOQ: 1 Piece -
ABB RED615 HCDCACADAHC2BNN11E Feeder ProtectionNegotiableMOQ: 1 Piece
-
ABB PPC322AEV01 HIEE300697R1 Excitation Control BoardNegotiableMOQ: 1 Piece
-
ABB PDD205A0121 3BHE025335R0121 Circuit Board ModuleNegotiableMOQ: 1 Piece
-
ABB PPD512A10-454000 3BHE040375R103E Industrial Control ModuleNegotiableMOQ: 1 Piece

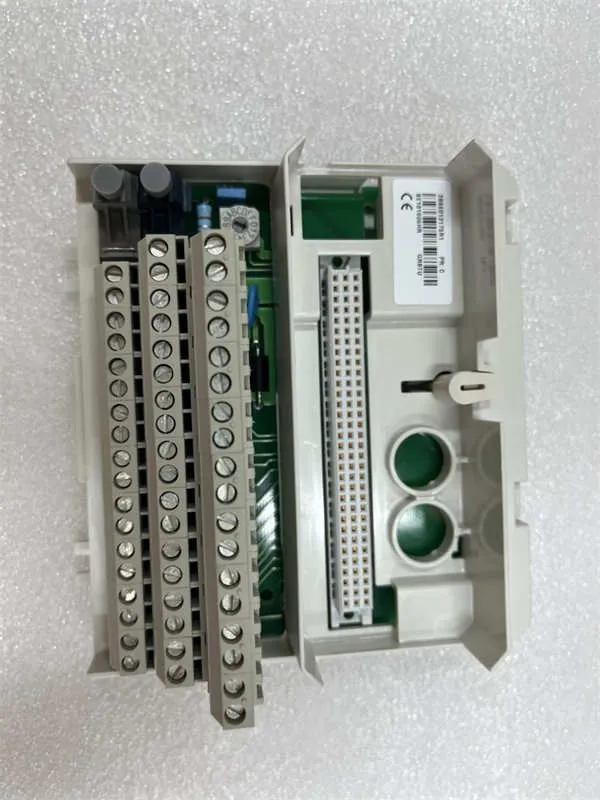

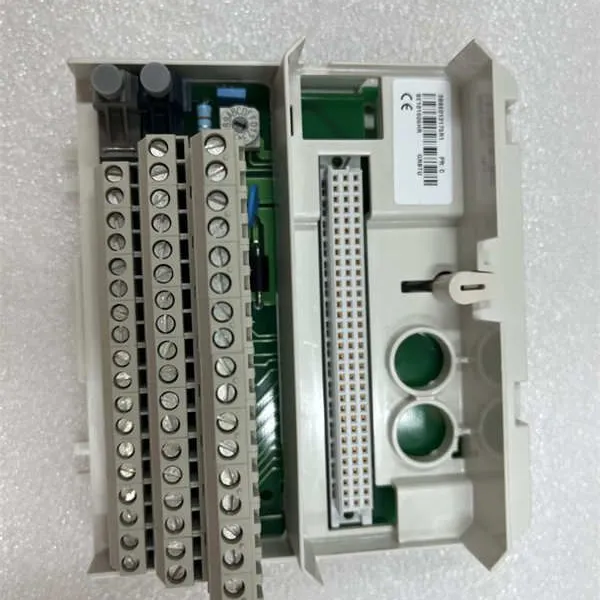

ABB GRBTU 3BSE013175R1 is a Profibus DP slave communication adapter, whose core function is to connect local I/O modules (such as AI810, DO801, etc.) to the Profibus master network, enabling efficient collaboration between centralized control and decentralized deployment. It addresses the pain points of high connection costs, severe interference and inconvenient operation & maintenance for decentralized nodes in large-scale process plants. Deeply integrated into the AC 800M architecture and rigorously tested, this product features high reliability, easy integration, comprehensive diagnostic functions and strong anti-interference performance. It is a core component for realizing remote I/O expansion and wiring simplification in large industrial projects, as well as the preferred solution for the digital upgrading of old installations and cost-effective remote stations in new projects. It provides stable and efficient communication support for distributed control systems in petrochemical, electric power, municipal water supply and drainage and other fields.
1. Product Parameters
Basic General Parameters
| Parameter Item | Detailed Description |
|---|---|
| Brand/Model | ABB GRBTU, Material Code: 3BSE013175R1 |
| Product Type | Profibus DP slave communication adapter dedicated to AC 800M system |
| Physical Specifications | Single-slot module for AC 800M, dimensions approx. 40mm×160mm×100mm (W×H×D) |
| Installation Compatibility | Adapted to AC 800M standard I/O guide rail, suitable for dense installation in control cabinets |
| Operating Temperature | 0°C to +60°C |
Electrical Performance Parameters
| Parameter Item | Detailed Description |
|---|---|
| Power Supply | Powered by AC 800M I/O backplane +24VDC, no external auxiliary power supply required |
| Isolation Performance | Isolation voltage of 500V RMS between communication side and backplane side |
| Electrical Interface | RS-485 (9-pin D-sub female connector) with isolation protection |
| Power Consumption | Low power consumption design, suitable for long-term continuous industrial operation |
Communication and Control Parameters
| Parameter Item | Detailed Description |
|---|---|
| Communication Protocol | Profibus DP, compliant with IEC 61158/EN 50170 |
| Transmission Rate | 9.6kbps, 19.2kbps, 93.75kbps, 187.5kbps, 500kbps, 1.5Mbps, 12Mbps, supporting automatic/manual adjustment |
| I/O Expansion | Supports up to 8 local I/O modules (depending on module type and data volume) |
| Address Setting | Rotary DIP switch, supporting address adjustment from 0 to 126 |
| Compatibility | Supports GSD file (ABB_GRBTU.gsd), compatible with mainstream PLC masters such as Siemens and Rockwell |
| Diagnostic Functions | Integrated communication status LED indicators, automatic baud rate detection, address conflict alarm |
2. Functions and Characteristics
Native Collaboration with AC 800M for Efficient and Easy Integration
Deeply integrated into the AC 800M architecture, it is recognized as a "local expansion rack" in Control Builder M with automatically generated I/O tags. No communication programming is required to achieve "transparent" integration. It natively supports the full range of AC 800M I/O modules, and can be flexibly combined with AI, AO, DI, DO and other modules to meet diverse signal acquisition and control requirements, greatly reducing project complexity and commissioning cycle.
High-Reliability Communication with Outstanding Anti-Interference Performance
Adopting an RS-485 isolated interface, the 500V RMS isolation voltage can effectively resist electromagnetic interference, voltage fluctuation and ground loop interference in industrial sites to ensure stable communication. It supports multi-rate adjustment to adapt to different communication distance and data volume requirements, and can meet the communication needs of decentralized nodes for several kilometers at the maximum, suitable for signal connection in decentralized areas of large-scale process plants.
Comprehensive Diagnosis and Maintenance with Controllable O&M Costs
Equipped with red/green dual-color Profibus diagnostic LED indicators for intuitive display of communication status and faults; supports automatic baud rate detection and address conflict alarm to simplify on-site commissioning; supports hot swap in redundant I/O stations, enabling maintenance without shutdown to reduce downtime and O&M costs; can real-timely report status such as I/O module faults and channel over-limit to Control Builder M to realize proactive early warning O&M.
Flexible Adaptation with Multi-Scenario Compatibility
Seamlessly integrated into the AC 800M control system and compatible with mainstream PLC masters at the same time, adapting to the collaboration of multi-brand systems; the single-slot design saves installation space and is suitable for dense layout of control cabinets; it can reuse the existing Profibus infrastructure, serving as an ideal transition component for migrating ABB MasterPiece or MOD 300 systems to the AC 800M platform and lowering the upgrade threshold.
3. Application Fields
Petrochemical Industry
Used for distributed I/O acquisition and control of oil refining and chemical installations, adapted to on-site environments with high temperature and strong electromagnetic interference to ensure the stable operation of installations.
Electric Power Industry
Adapted for remote I/O communication of auxiliary systems in power plants (such as fans, water pumps, coal feeders), realizing the collaboration of centralized monitoring and decentralized control to improve system reliability.
Municipal Water Supply and Drainage
Applied to the control of remote pumping stations and chemical dosing systems in waterworks and sewage treatment plants, connecting decentralized I/O nodes through the Profibus network to reduce wiring costs and simplify operation & maintenance.
Large-Scale Process Industry
Adapted for large production lines in metallurgy, papermaking, cement and other industries, solving the communication problems of decentralized equipment, supporting system expansion and upgrading, and meeting the digital transformation needs under the Industry 4.0 scenario.
