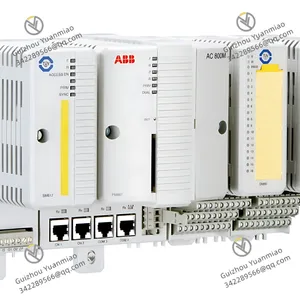

Help CenterABB 3BSE076940R1 PM862K01 Processor Unit
Related Products
-
ABB DSMB-02C 3AFE64666606 Control ModuleNegotiableMOQ: 1 Piece -
ABB 3BHB009175R0001 Control ModuleNegotiableMOQ: 1 Piece
-
ABB LDSTA-01 63940143B Excitation Controller ModuleNegotiableMOQ: 1 Piece
-
ABB L003748-AR 3BSX108237R300 Voltage Regulation ModuleNegotiableMOQ: 1 Piece
-
ABB PM866-2 3BSE050201R1 Processor UnitNegotiableMOQ: 1 Piece

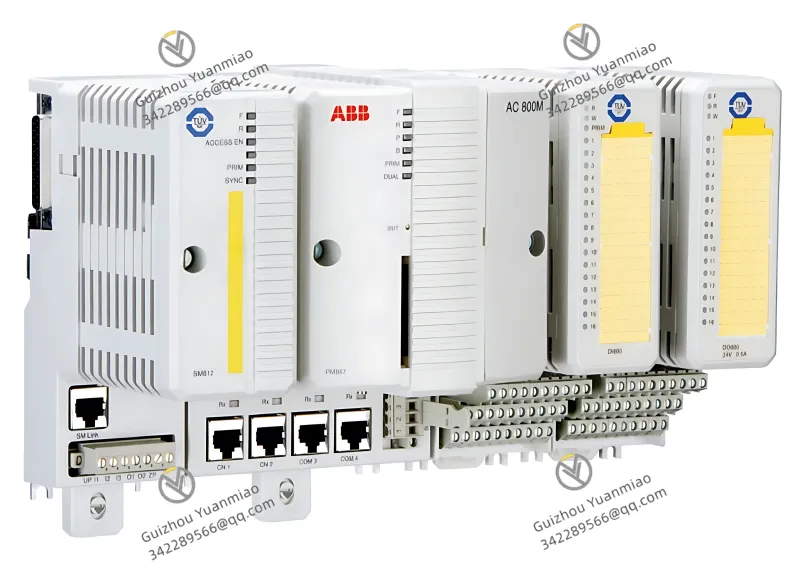

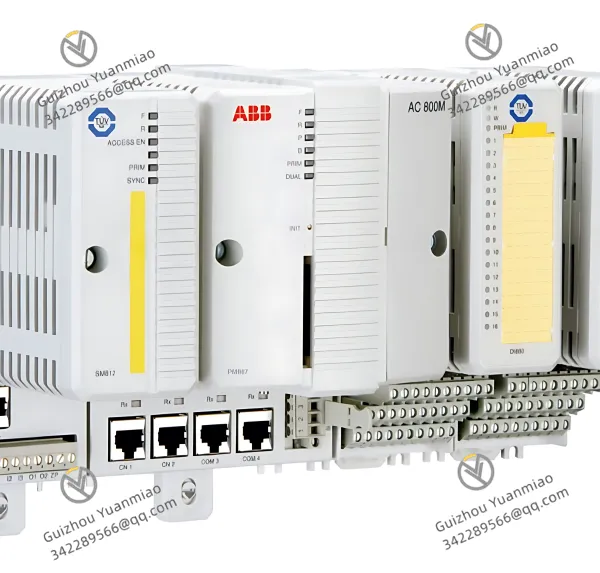

ABB 3BSE076940R1 PM862K01 is an industrial-grade high-performance programmable logic controller (PLC/CPU module), belonging to the ABB AC 800M controller series. It is positioned as the core computing and control unit of industrial automation control systems, integrating five core capabilities: high-speed computing, multi-protocol communication, redundancy adaptation, modular expansion, and strong anti-interference. It is a key core component in the ABB 800xA automation system for realizing process logic control, data interaction, system linkage, and fault diagnosis.
This module mainly undertakes five core tasks: system computing, logic control, communication interaction, program storage, and fault monitoring. Equipped with a high-performance MPC 866 processor, it can quickly complete complex logic operations, process control, and data processing. Relying on rich communication interfaces and redundant design, it ensures the continuity and reliability of control command issuance and data transmission. It supports CPU redundancy, CEX-Bus redundancy, and communication interface redundancy, which can adapt to high-availability industrial control scenarios, effectively solving problems such as control lag, system interruption, and poor compatibility under complex working conditions. Compatible with ABB 800xA DCS system and Compact Control Builder configuration software, it is widely used in industrial scenarios with high requirements for control reliability and computing real-time, such as petrochemical engineering, mining machinery, shipbuilding, power generation, and metallurgical rolling, providing core computing and control support for the stable and efficient operation of large-scale industrial automation systems.
It adopts an industrial-grade compact modular design, equipped with a unique slide & lock mechanism, supporting quick installation and disassembly on 35mm DIN rails, facilitating dense deployment and later maintenance in control cabinets. It is equipped with standardized interfaces and indicators; the panel integrates a real-time clock, initialization button, and LED status indicators, which can intuitively display the equipment operation status. The enclosure and circuit design comply with industrial EMC full certification standards, with IP20 protection level (no additional enclosure protection required, can be directly installed in the electrical cabinet), offering excellent dustproof and anti-electromagnetic interference performance, which can withstand high-frequency noise from inverters and electromagnetic fields from high-power equipment on industrial sites. It supports online configuration, program download, parameter setting, and fault diagnosis through ABB special software such as 800xA Control Builder and Compact Control Builder, making operation and maintenance convenient and efficient.
1. Technical Specifications
1.1 Power Specifications
Power Supply Voltage: Industrial standard 24VDC (compatible with 19.2–30VDC wide range), suitable for centralized power supply in control cabinets;
Power Protection: Equipped with overvoltage, overcurrent, and reverse polarity protection functions, supporting redundant power supply status input, which can access dual power supplies to achieve redundant power supply and improve operational reliability;
Power Consumption: Typical power consumption 5.1W, maximum power consumption 8.6W, typical supply current 210mA, maximum supply current 360mA, low power consumption, suitable for long-term continuous operation;
Backup Power Supply: Built-in 3.6V lithium battery backup power supply for real-time clock and key data backup to prevent loss due to power failure;
Power Indication: The panel is equipped with a power LED indicator to intuitively display the module's power supply and redundant power supply status, facilitating quick troubleshooting of power supply faults.
1.2 Computing & Storage Parameters
Processor Type: MPC 866 high-performance embedded processor, clock frequency 67MHz;
Computing Performance: 1000 boolean operations take only 0.18ms, fast computing speed, capable of quickly processing complex logic control tasks;
Storage Capacity: Total memory 32MB, of which 23.521MB RAM is available for application programs, built-in 4MB flash memory for firmware storage, supporting Compact Flash interface for expandable storage;
Program Configuration: Each controller supports up to 32 application programs, each application program supports up to 64 programs and 128 diagrams, each controller supports up to 32 tasks, supports 32 different cycle times, and the application program cycle time can be as low as 1ms;
Clock Synchronization: 1ms-level clock synchronization between AC 800M controllers through CNCP protocol to ensure the accuracy of multi-module collaborative control.
1.3 Communication & Compatibility Parameters
Communication Interfaces: The base plate is equipped with 2 RJ45 Ethernet ports (CN1, CN2) supporting redundant Ethernet communication; 2 RJ45 serial ports (COM3, COM4), where COM3 is an RS-232C port with modem control signals, and COM4 is an isolated port for connecting configuration tools;
Communication Protocols: Native support for mainstream industrial protocols such as Ethernet and Profibus-DP, complying with industrial communication standards to ensure seamless interaction with various automation equipment;
Data Transmission: When communicating with the OPC server, the event transmission speed is 36-86 per second, the data message transmission speed is 113-143 per second, and each OPC client supports up to 3000 event queues;
System Compatibility: Only compatible with 800xA 6.0.2 system, Compact Control Builder 6.0.0-1 and higher version configuration software, which can be directly connected to ABB 800xA DCS system;
Expansion Capacity: Supports CEX-Bus expansion, can connect up to 12 communication modules, and the maximum supply current of CEX-Bus is 2.4A; in non-redundant CPU mode, the module bus can support 1 electrical I/O cluster + 7 optical I/O clusters.
1.4 Environmental Parameters
Operating Temperature: -40℃ to +70℃, storage temperature adapts to industrial wide temperature range, can withstand extreme high and low temperature environments;
Operating Humidity: 5%–95% (non-condensing), capable of stable operation in humid industrial environments;
Anti-Interference Level: Complies with EMC full certification standards, can withstand strong electromagnetic interference on industrial sites, adapting to harsh industrial scenarios;
Redundancy Switchover: In redundant configuration, the maximum switchover time is no more than 10ms, ensuring continuous system operation and avoiding control interruption;
Reliability: Mean time between failures (MTBF) >50,000 hours, no mechanical fans, natural heat dissipation, maintenance-free operation.
1.5 Physical & Installation Parameters
Overall Dimensions: Industrial-grade compact design, suitable for standard DIN rail installation, dimensions conforming to AC 800M series module specifications (subject to actual product);
Installation Method: Adopting a unique slide & lock mechanism, supporting quick installation and disassembly on 35mm DIN rails, easy to operate;
Hardware Identification: All base plates are equipped with a unique Ethernet address, providing an exclusive hardware identity for each CPU, and the address can be queried on the Ethernet address label of the TP830 base plate;
Status Indication: The panel is equipped with multi-color LED indicators, a real-time clock, and an initialization button, which can intuitively display power supply, operation, communication, fault and other statuses, facilitating quick fault location;
Weight: Net weight of a single module
2. Features
High-Speed Computing and Precise Control: Equipped with MPC 866 processor, clock frequency 67MHz, 1000 boolean operations take only 0.18ms, fast computing speed, capable of quickly processing complex logic control and process regulation tasks; application program cycle time as low as 1ms, ensuring real-time issuance of control commands, improving system control accuracy, and adapting to industrial scenarios with high real-time requirements.
Redundant Design and High Availability: Supports full redundancy configuration of CPU, CEX-Bus, communication interface and S800 I/O, the maximum redundancy switchover time is no more than 10ms, which can effectively avoid system interruption and ensure the continuity of industrial production; supports redundant power input, built-in lithium battery backup power supply, preventing key data loss due to power failure, and improving system reliability.
Rich Communication and Seamless Integration: Equipped with dual redundant Ethernet ports and dual serial ports, supporting mainstream industrial protocols such as Ethernet and Profibus-DP, enabling high-speed data interaction with upper systems and on-site equipment; deeply compatible with ABB 800xA DCS system and special configuration software, can be directly connected to the existing automation network without additional conversion modules, reducing integration difficulty.
Modular Expansion and Flexible Adaptation: Supports CEX-Bus modular expansion, can connect up to 12 communication modules, and can flexibly expand I/O clusters and communication functions according to on-site needs; supports parallel operation of multiple application programs and multiple tasks, can adapt to industrial control scenarios of different scales and complexities, and realize step-by-step expansion.
Convenient Operation and Maintenance, Safe and Reliable: Adopting a slide & lock mechanism, easy to install and disassemble; panel indicators can quickly locate faults, supporting online configuration, program download, parameter backup and fault diagnosis, reducing downtime for maintenance; complying with ISA Secure certification and EMC full certification standards, IP20 protection level, with excellent anti-interference and dustproof performance, capable of long-term stable operation in harsh industrial environments; built-in comprehensive fault detection and self-diagnosis functions, facilitating fault tracing and processing.
3. Operating Principle
Initialization and System Startup: After power-on, the module completes a full self-test, initializes the processor, memory, communication interface, CEX-Bus and I/O channels, and loads the built-in firmware and pre-configured system parameters; establishes a connection with the upper system (800xA DCS) and configuration tools through the Ethernet ports and serial ports on the base plate, and enters the normal working state after clock synchronization and parameter calibration; supports manual restart or restoration of default settings through the panel initialization button.
Program Operation and Logic Computing: The control program downloaded through the configuration software runs in parallel in the MPC 866 processor, and quickly computes and processes the collected on-site signals according to the preset logic rules and control algorithms; supports parallel execution of 32 tasks, and can set different cycle times according to process requirements, ensuring efficient processing of complex control tasks and realizing precise control of industrial processes.
Data Interaction and Command Issuance: Real-time data interaction with the upper system through dual redundant Ethernet ports, uploading on-site equipment status, operation results, fault information, etc. to 800xA DCS, and receiving control commands and parameter modification commands issued by the upper system; connecting to configuration tools through serial ports to realize program download, parameter configuration and fault debugging; supporting linkage with on-site I/O modules and actuators, issuing control commands to actuators to realize automatic control of industrial processes.
Redundancy Monitoring and Fault Handling: Real-time monitoring of CPU operation status, communication link, power supply status and CEX-Bus status; if abnormalities of the main link, main CPU or power supply are detected, redundant switchover is triggered immediately, switching to the standby link or standby CPU within 10ms to ensure continuous system operation; built-in comprehensive self-diagnosis function, which can detect program errors, communication interruptions, power supply abnormalities and other faults, record fault information in a timely manner and upload it to the upper system, and light up the panel fault indicator at the same time, facilitating operation and maintenance personnel to quickly locate and handle.
Data Storage and Clock Synchronization: Store firmware, control programs and operation logs through built-in flash memory and Compact Flash interface; the built-in lithium battery backup power supply ensures that the real-time clock operates normally and key data is not lost after power failure; realize 1ms-level clock synchronization with other AC 800M controllers through CNCP protocol, ensuring the consistency and accuracy of multi-module collaborative control.
4. Applications and Case Examples
Petrochemical Industry: In the production control system of large refineries and chemical plants, as the core CPU module of the 800xA DCS system, it connects on-site I/O modules and actuators to realize precise control and logical linkage of parameters such as reactor temperature, pressure, and flow; the redundant design ensures uninterrupted production process, and the strong anti-interference performance adapts to the high-dust and strong electromagnetic interference on-site environment of chemical plants, effectively ensuring the safety and stability of chemical production.
Mining Machinery Industry: In mining and mineral processing production lines, cooperating with ABB AC 800M series I/O modules, it collects the operation status signals of crushers, conveyors, flotation machines and other equipment, and controls the start and stop of equipment and the adjustment of process parameters; the modular expansion capability can adapt to the complex control needs of mines, and the wide-temperature design can withstand the high and low temperature and humid environment underground in mines, ensuring stable operation of equipment.
Shipbuilding Industry: In the ship automation control system, as the core control unit, it realizes the logical control and data interaction of the ship power system, navigation system and auxiliary system; the redundant Ethernet and serial communication interfaces can realize the collaborative linkage of various ship systems, and the anti-interference design can withstand the electromagnetic interference during ship navigation, ensuring the safety of ship navigation.
Power Generation Industry: In the auxiliary control system of thermal power plants and hydropower plants (such as ash removal, desulfurization, and circulating water systems), it undertakes the tasks of logical operation and control command issuance, collects the status signals of water pumps, fans, valves and other equipment, and controls the start and stop of equipment and the adjustment of operation parameters; the clock synchronization function ensures the accuracy of multi-module collaborative control, and the redundant design avoids system interruption, ensuring the continuity of power production.
Metallurgical Rolling Industry: In stainless steel cold rolling and hot rolling production lines, it is connected to the 800xA DCS system to realize precise control of parameters such as rolling mill speed, strip tension, and temperature; it links with on-site inverters and load cells through the Profibus-DP protocol to control strip tension fluctuation and temperature deviation within the preset range; the high-speed computing capability ensures real-time response of control commands, avoiding strip stretching, deformation and breakage, and improving product quality.
