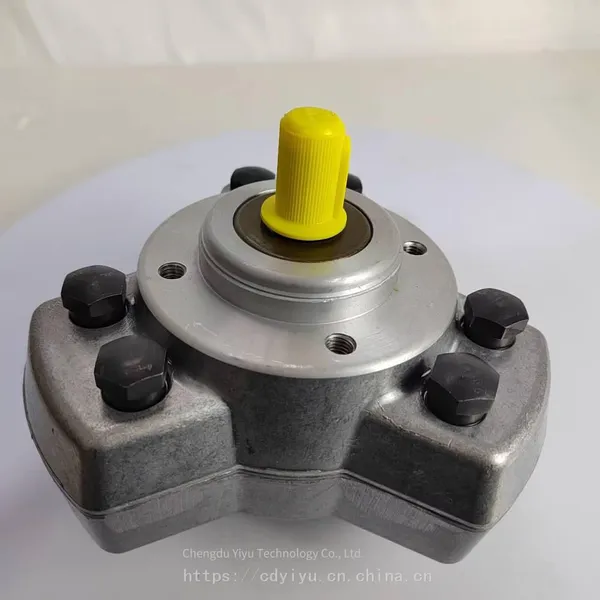

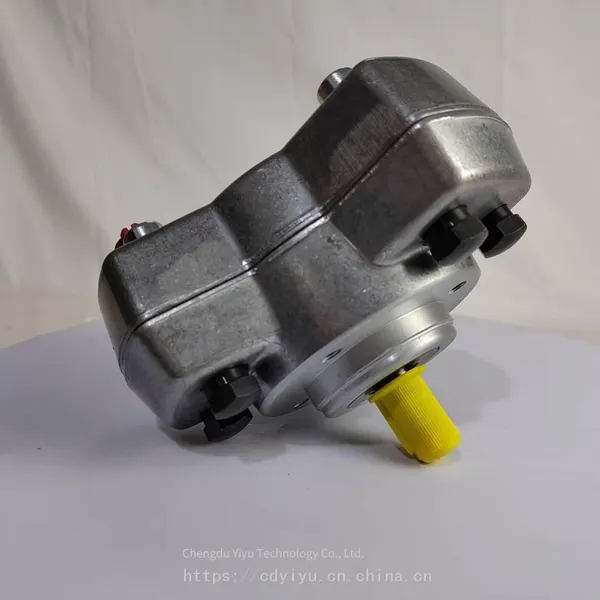

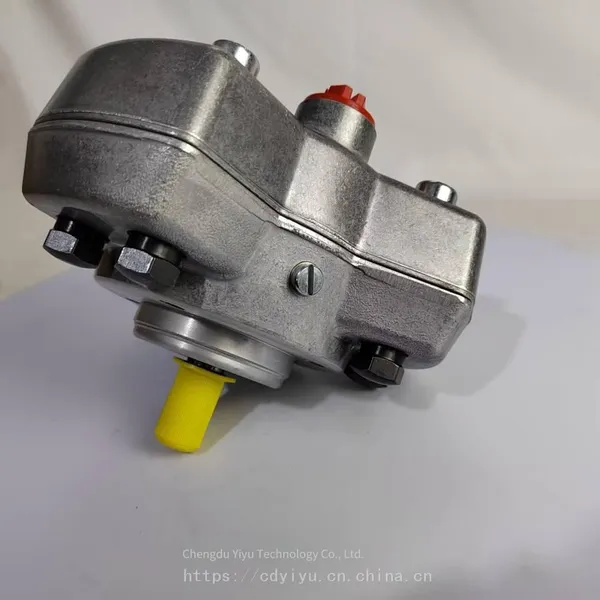

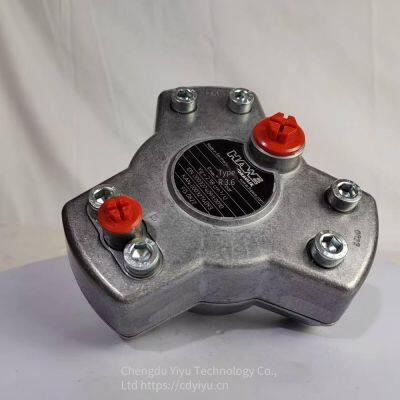

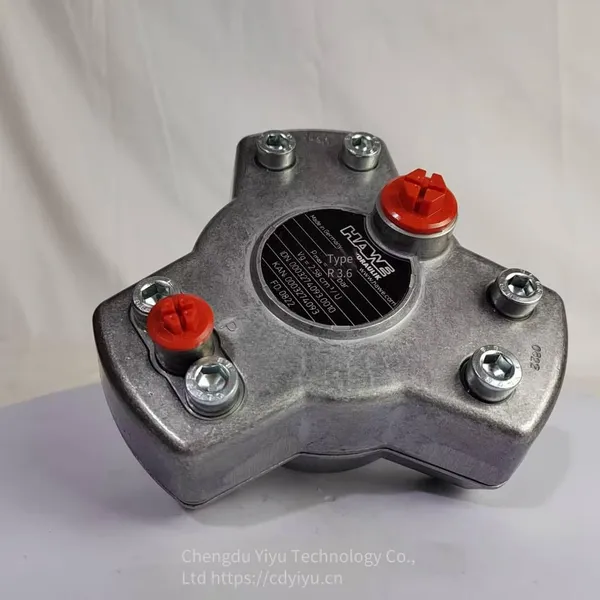

Original HAWE R 1.7 Oil Pump
Chengdu Yiyu Technology Co., Ltd.---Xiao Yang, welcome your visit!!!
Our brands: German HAWE, SUNFAB Piston Pumps, American VICKERS, German REXROTH, German HYDAC, Swiss BIERI, Swiss WANDFLUH, MOOG, Bucher and other hydraulic components. If you have the above needs, we look forward to your inquiry!!!

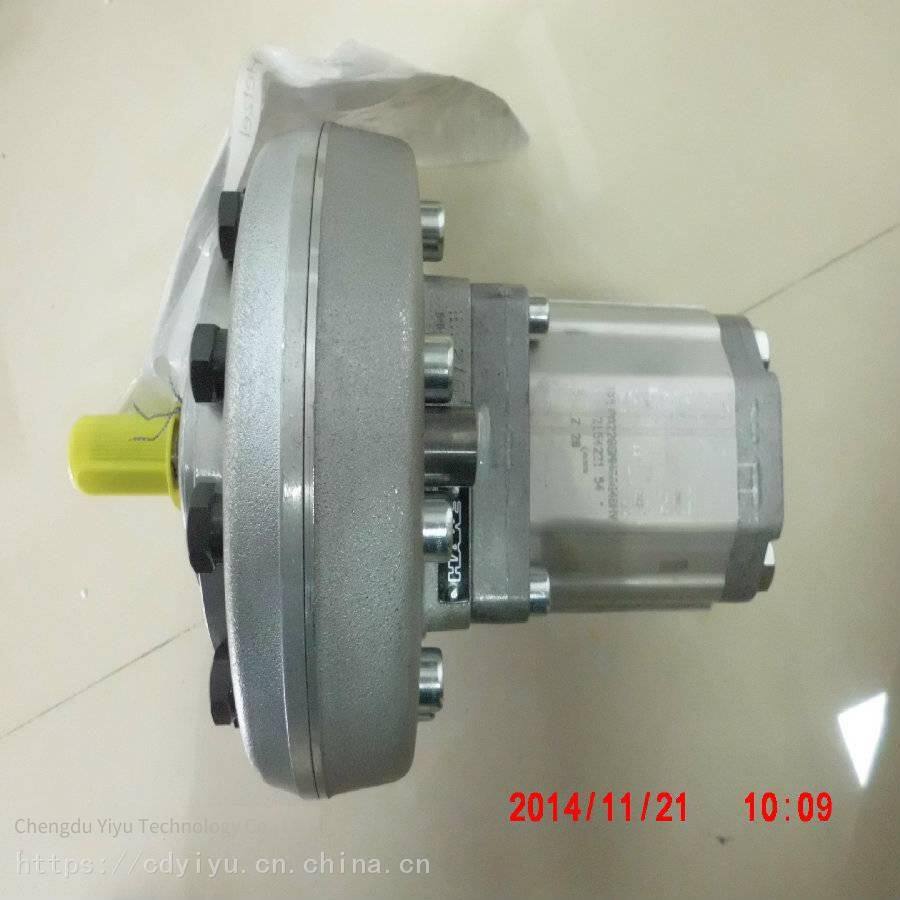

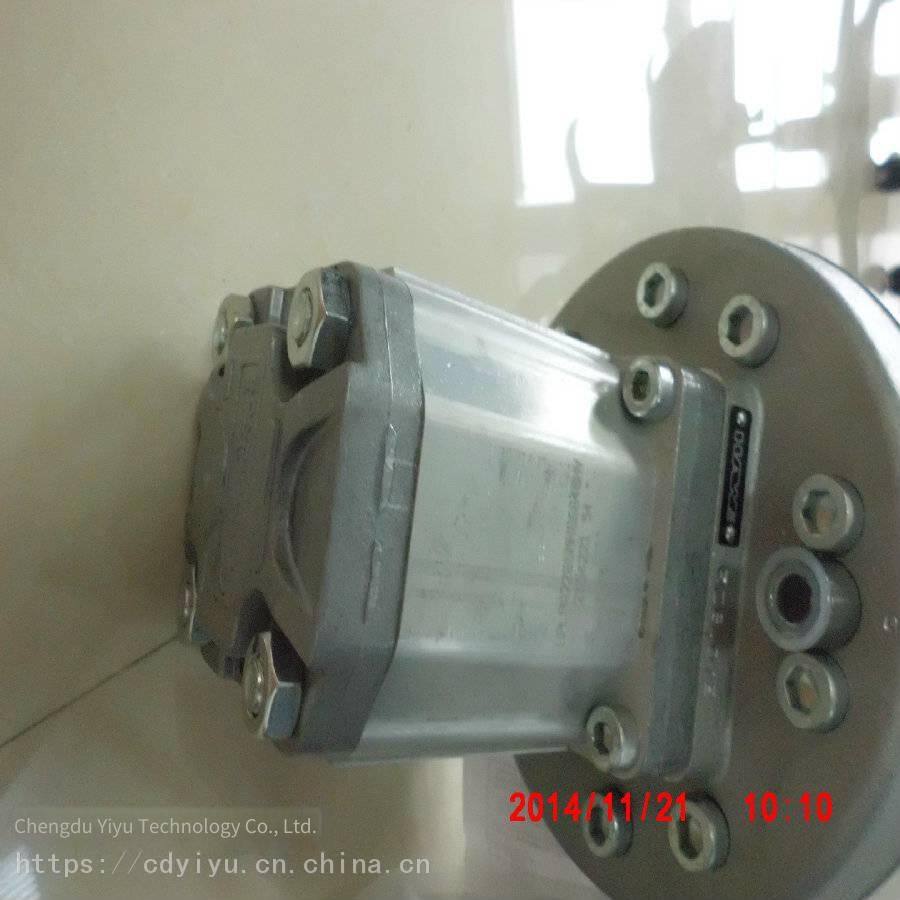

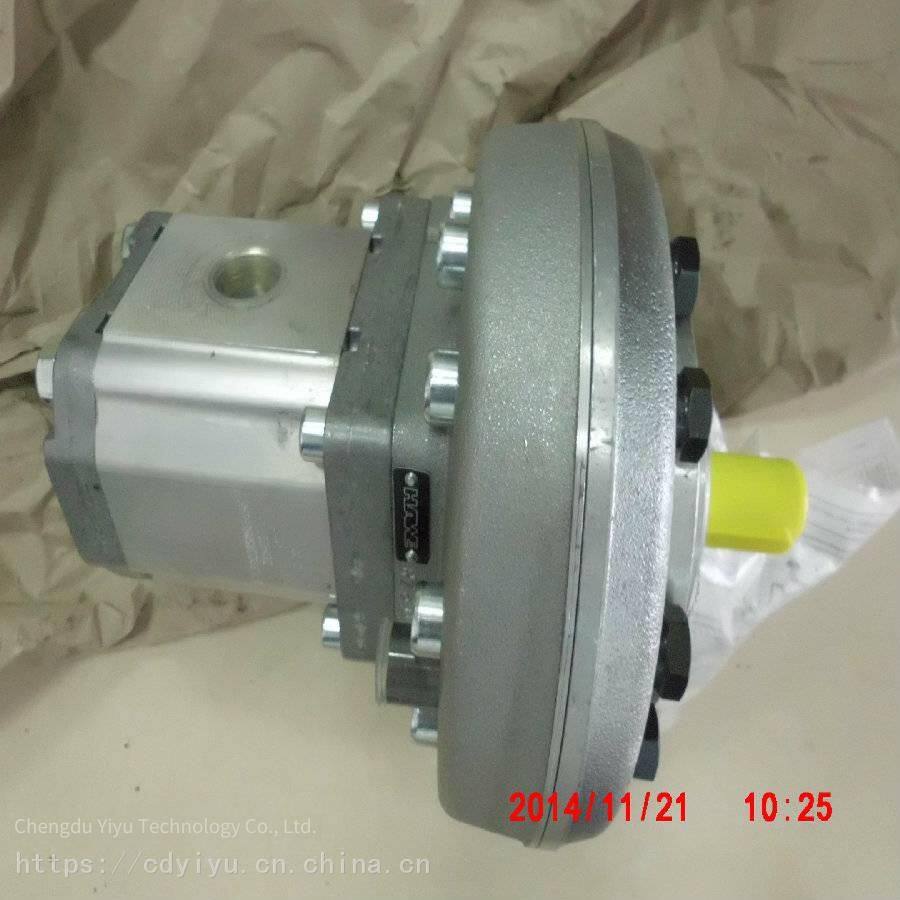

The HAWE RZ series two - stage oil pumps are composed of a high - pressure part (radial piston pump HD) and a directly assembled low - pressure part (gear pump ND). Generally, it is connected and driven by an electric motor through a flange and a coupling. Through the tank cover, directly assemble the two - stage pressure valve and valve block to realize a complete hydraulic control circuit (e.g., for forging machinery). Pressure Pmax: Radial piston pump 700 bar, Gear pump 150 bar. Flow Qmax: Radial piston pump 91.2 l/min, Gear pump 135 l/min. Tank volume: 470 l. The HAWE HC series compact hydraulic pumps, the HC type electric compact hydraulic power units only need to be connected to electricity and pipes, and can be widely used in small - flow hydraulic control circuits with intermittent duty.
For example: Machine tools, tooling fixtures or general machinery. This power unit is composed of a housing (i.e., the tank), a motor and a pump integrated into one form. Pressure Pmax = 700 bar Flow Qmax = 12.9 l/min. We distribute various HAWE products. Welcome to call to purchase specific models!!!
(1) Structure of Hawe two-stage pump
The RZ-type two-stage pump consists of a high-pressure pump and a low-pressure pump. The casing of the high-pressure pump is made in a form that can be flange-connected to the low-pressure pump. The driving torque is input into the high-pressure pump and transmitted to the low-pressure pump through the hollow shaft.
(2) Applications
Two-stage pump
It is used in the press control system that requires distinguishing the rapid traverse and working feed speeds. The low-pressure flow generally passes through a cut-off valve related to pressure, converges with the high-pressure flow, and supplies oil to a common load pipeline. When the system pressure reaches the pre-set low-pressure value, the low-pressure pump automatically switches to the bypass circulation.
Double-circuit pump
It is used to supply pressure oil to the loads of two circuits. These are independent. According to possible combinations, it supplies oil to two load circuits simultaneously with different flows and pressures. The two-way flow is controlled by the directional valve for the neutral circulation oil return.
(3) Structural arrangement of the pump
Configured outside the oil tank
The pump can be suspended on the IMB35-type motor through the intermediate flange and coupling. In addition, an oil tank is configured. For this structure, the reliable operating arrangement should be that the pump is placed beside or under the oil tank. In this way, the two pumps always suck oil through the pipeline where the oil flows downward. Even at a low oil level, the oil can automatically flow in to assist in oil suction and achieve automatic exhaust. The connecting elements between the motor and the hydraulic pump can refer to the intermediate flange and elastic coupling provided in sample D6010Z, which can be ordered according to the numbers listed in the sample as required.
Structure placed in the oil tank
The conventional structural form is to vertically install it from the upper part through the skylight of the oil tank cover, elastic coupling, IMB5 and IMV1 motors. The connecting elements between the motor and the hydraulic pump can refer to the intermediate flange and elastic coupling provided in sample D6010Z, which can be ordered according to the numbers listed in the sample. In addition, the oil suction components and the D4 or A4-type elbows according to DIN2950 can be applied according to sample D6010Z.
The relevant models are as follows:
DSV2-1C
F32
PVS5G1/350---52L 160/160EV -E4-G24
RZ5.1/2
AC3225/100/1A
CMV1F
G4-1-G24, corresponding to the block below the valve
R5.8-5.8-5.8-2.9
R2.08-2.08
HC24DT/1,1
-A4/300
-VB01FM-N5-1-G24
3 x 400 V 50 Hz
7709040B
G22-0-G24
LHK33G-21-250/250
LHDV33-21-B6-280/280
PSL41/250-3
-42H80/63A170B200/EA
-42H25/16A60B140/EA
-42H80/80C180/EA
-42H16/25A60B80/EA
-42H16/25A60B80/EA
-E4-G24
LP125-20/S80
G22-0-G24
HRP7V-GZ3-1B0.6-G24
PSL31/120-3
-32H10/10/EA
-32H10/10/EA
-E1-G24EX
-ATEX-Dokumentation
PSL31ZM/D350-2
-A2H10/10/EA/2
-A2H25/25/EA/3
-A2H40/40/EA/3
-A2L16/16/EA/2
-A2L10/10/EA/2
-A2L10/16/EA/2
-E1-G24
MVCS66ER
RT-PSL31/120-3
-32H10/10/EA
-32H10/10/EA
-E1-G24EX
HK449LST/1-H2.5
-A4/350
-VB11FM-G/02-2-G24
-3 x 400/230 V 50 Hz
SWS2-G12/MPF/DW/2AL8B100BL8B100-G24
MP22-H1.39
3 x 400 V 50 Hz
MP22-H1.39/D10 (with fuel tank). SYS means system.
3 x 400 V 50 Hz
PSL41/280-3
-42H40/40C210/EA
-42H80/63A250B250/EA
-42H63/40A250B250/EA
-42H40/40C17O/EA
-42H40/40C170/EA
-42H6/6C160/EA
-E4-G24
LHK33G-21/280/280
LHDV33-21-A6-280/280
LHK33G-14W-250
V30D-45RDN-1-1-02 LN400 22KW 310BAR
V30D-140RDN-1-1-04/LSN-2-350
V30D-140RDN-2-1-04/LVN-350
SCM-034W-H-I42-K30-K3G-100
DF5PH-WH1D-L24
DF4PH-420
DF5PH-420
BVP1R/B2.5-WG230
PSL41/230-3
-42H80/80/EA
-E1-G24
PSL51/230-5
-52H80/80/EA
-52H120/120/EA
-52H120/120/EA
-52H80/80C90/EA
-E1-G24
PSV6S2/280-5
-55H80/80/A2
-55H80/80/A2
-52H63/63/A2
-52H63/63/A2
-52H63/63/A2
-52L63/63/A2
-E1
