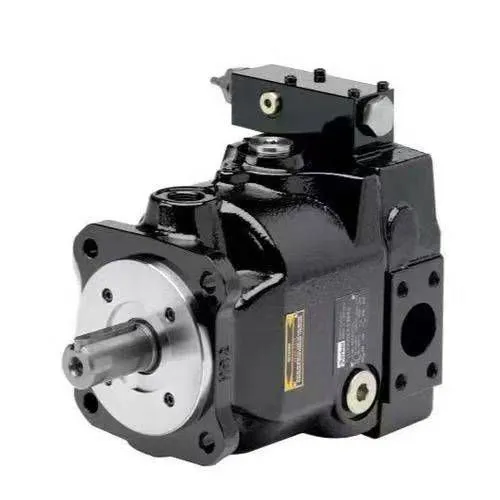

Original PV032R1K1T1N001 Parker Piston Pump
PV032R1K1T1N001 is an axial piston variable pump in the Parker PV series. It features high performance and high reliability, and is suitable for various industrial hydraulic systems. The following is a summary of the detailed technical parameters of this pump model:
I. Core Performance Parameters
Displacement: 32 ml/rev (a medium-displacement model in the PV series)
Nominal working pressure: 350 bar (i.e., 35 MPa), suitable for high-pressure hydraulic systems
Peak pressure: Up to 42 MPa (approximately 420 bar), with short-term overload capacity
Minimum speed: 300 rpm, ensuring stable operation under low-speed conditions
Drain port direction: Designed to face upwards, facilitating installation and maintenance and reducing the risk of leakage
II. Structural and Control Characteristics
Pump type: Axial piston variable pump (swash plate design), enabling flow adjustment
Control method:
Optional standard pressure regulator (constant pressure control)
Or power regulator (constant power control) to adapt to load changes
Installation standards:
Complies with VDMA 24560 standard
Flange interface complies with ISO 3019/24 (metric)
Rotation direction: Usually clockwise (viewed from the shaft end), and the specific configuration needs to be confirmed in the order
III. Applicable Scenarios and Advantages
Typical applications:
Construction machinery (such as excavators and cranes)
Metallurgical equipment
Plastic molding machinery
Large hydraulic transmission systems
Product advantages:
Compact design, requiring less installation space
High efficiency and low energy consumption
Smooth operation and low noise
Strong durability, suitable for continuous high-intensity operations
IV. Precautions
The cleanliness of the hydraulic oil must be strictly controlled. It is recommended to use a filtration system with a NAS 1638 grade of 8 or better.
It is recommended to replace the hydraulic oil every 1000 - 3000 working hours or every 6 months to extend the service life of the pump.
Before starting, ensure that the system is fully vented to avoid damage caused by dry running.
Performance Features
High Efficiency: The volumetric efficiency is about 95%, and the total efficiency can reach about 90%.
Low Noise Design: Adopting FEM to optimize the housing and pre - compression chamber structure, with small output pulsation and quiet operation.
Compact Structure: Modular design, easy to integrate into complex hydraulic systems.
Strong Self - Priming Ability: High self - priming speed ability, reducing startup failures.
Multiple Control Compatibility: Supports multiple modes such as pressure control, remote pressure, load sensing, and electronic proportional control.
Typical Application Fields
This pump is suitable for industrial scenarios with high requirements for hydraulic stability, including:
Coking pipeline systems
Engineering machinery (such as excavators, cranes)
Metallurgical equipment
Injection molding machines and plastic machinery
Hydraulic power units for large production lines
