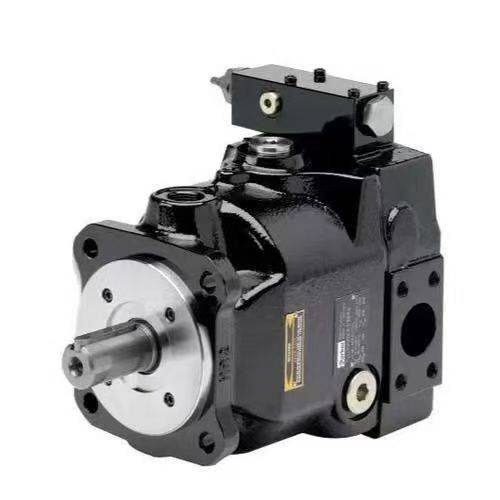

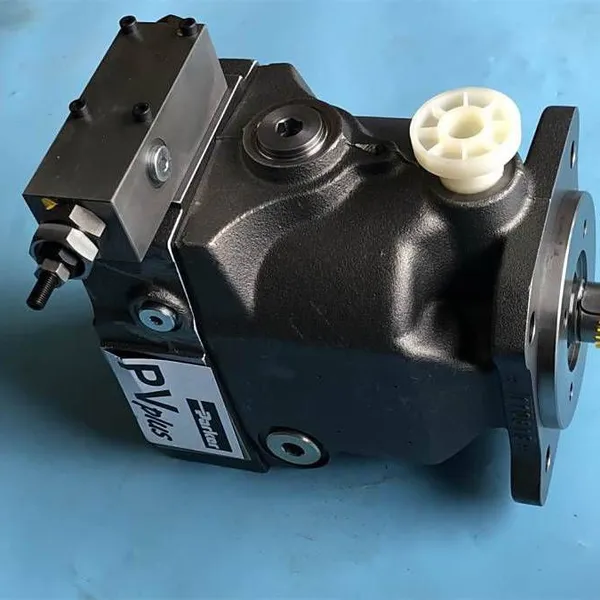

Original Parker Piston Pump PV140R9K1T1NMMCK0025
PV140R9K1T1NMMCK0025 is a variable axial piston pump produced by Parker (PARKER) Company. It is widely used in industrial hydraulic systems and features high efficiency, stability, and durability.
Analysis of core parameters:
PV: Parker Variable, indicating the Parker variable piston pump series
140: Displacement is 140 cm³/rev, that is, the output flow per revolution is approximately 140 milliliters
R: The rotation direction is clockwise (viewed from the drive end)
9: Special adjustment code, usually specifying customized control configuration
K: The mounting interface is a metric ISO 3019/2 four-hole flange, and the shaft end is cylindrical with a flat key
1: The oil port thread is BSPP (British Standard Pipe Parallel thread), and the connection thread is metric
T: Through-drive option, indicating that it can be used as a single pump and supports through-drive connection
1: Without coupling, suitable for single-pump structure
N: The sealing material is NBR (Nitrile Butadiene Rubber), and the shaft seal is FKM (Fluoroelastomer), with good oil resistance and temperature resistance
MMC: The control type is hydraulic mechanical control with a pressure compensator, which can achieve constant-pressure variable adjustment
K0025: Factory-specific code or batch identification, which may involve factory settings or calibration parameters
Typical application scenarios:
This model is commonly used in industrial equipment that requires constant-pressure variable control, such as:
Coking plant pipeline hydraulic systems
Construction machinery (excavators, rollers, etc.)
Plastic machinery, injection molding machines
Metallurgical equipment, heavy-duty hydraulic transmission systems
Advantages and features:
Fast response of variable control, energy-saving and high-efficiency
Compact structure, strong installation compatibility
Reliable sealing, suitable for medium and high-pressure working conditions
Supports multi-pump series connection, good expandability
Core parameters
Displacement: 140 cm³/rev (displacement per revolution)
Rated pressure: 35.0 MPa (approx. 350 bar)
Working pressure: Up to 420 bar (short-term peak)
Rotation direction: Clockwise (viewed from the drive end)
Installation interface: Metric ISO 3019/2, 4-hole flange installation, 100mm pitch diameter, cylindrical shaft with flat key
Oil port thread: BSPP (British Standard Pipe Parallel thread), connection thread is metric
Through-shaft drive: Supports single-pump through-shaft drive, no coupling (T1 structure)
Sealing material:
Main seal: NBR (Nitrile Butadiene Rubber)
Shaft seal: FKM (Fluoroelastomer), with excellent oil resistance and high-temperature resistance
Control method: MMC type hydraulic mechanical control compensator, with torque limiter override function, supports pressure adjustment and load adaptation
Applicable media: Standard hydraulic oil, water glycol, biodegradable oil, fire-resistant oil, etc.
Working temperature range: -40°C to +115°C
Rotational speed: Up to 3000 rpm
Weight: Approx. 90 kg (slightly different in different materials)
Performance characteristics
High efficiency: Volumetric efficiency is about 95%, and the total efficiency can reach about 90%
Low-noise design: Adopts FEM-optimized housing and pre-pressure chamber structure, with small output pulsation and quiet operation
Compact structure: Modular design, easy to integrate into complex hydraulic systems
Strong self-priming ability: High self-priming rotational speed ability, reducing startup failures
Multiple control compatibility: Supports multiple modes such as pressure control, remote pressure, load sensing, and electronic proportional control
Typical application fields
This pump is suitable for industrial scenarios with high requirements for hydraulic stability, including:
Coking pipeline system
Construction machinery (such as excavators, cranes)
Metallurgical equipment
Injection molding machines and plastic machinery
Hydraulic power units for large production lines
PV140R1K1T1NMMC Parker piston pump
PV140R1K1T1VUPM
PV140R1K1T1VUPK
PV140R1K1T1NUPM
PV140R1K1T1VFPV
PV140R1K1T1NUPF
PV140R1K1T1NUPP
PV140R1K1T1NUPR
PV140R1K1T1NUPK
PV140R1K1T1VMTK
PV140R1K1T1NULK
PV140R1K1T1NWCK
PV140R1K1T1NMCCX5947
PV140R1K1T1NMFCX5889
PV140R1K1T1NMLW
PV140R1K1T1NMMK
PV140R1K1T1NMRK
PV140R1K1T1NSCCX5947
PV140R1K1T1NSLK
PV140R1K1T1NTLW
PV140R1K1T1NZLW
PV140R1K1T1VMMCX5899
PV140R1K1T1NKCC
PV140R1K1T1NKC1
PV140R1K1T1NMC1
PV140R1K1T1NMLZ
PV140R1K1T1NML1
PV140R1K1T1NMMCX5889
PV140R1K1T1NMMW
PV140R1K1T1NMT1
PV140R1K1T1NSC1
PV140R1K1T1NSL1
PV140R1K1T1NTC1
PV140R1K1T1NTL1
PV140R1K1T1NUC1
PV140R1K1T1NULZ
PV140R1K1T1NUL1
PV140R1K1T1NWL1
PV140R1K1T1NYC1
PV140R1K1T1NYLZ
PV140R1K1T1NYL1
PV140R1K1T1NZLC
PV140R1K1T1NZL1
PV140R1K1T1VMRCX5899
PV140R1K1T1WMFC
PV140R1K1T1WMMW
PV140R1K1T1WMR1
PV140R1K1T1NFPV
PV140R1K1T1WSCC
PV140R1K1T1WUCC
PV140R1K1T1WULC
PV140R1K1T1NMTK
PV140R1K1T1WMCK
PV140R1K1T1NYLK
PV140R1K1T1NULC
PV140R1K1T1NMLC
PV140R1K1T1NULCX5889
PV140R1K1T1NZCC
PV140R1K1T1NMCC
PV140R1K1T1NSCC
PV140R1K1T1NTCC
PV140R1K1T1NUCC
PV140R1K1T1NWCC
PV140R1K1T1NYCC
PV140R1K1T1NKLC
PV140R1K1T1NSLC
PV140R1K1T1NTLC
PV140R1K1T1NWLC
PV140R1K1T1NYLC
PV140R1K1T1NMCK
PV140R1K1T1NMTP
PV140R1K1T1NSCB
PV140R1K1T1NWCB
PV140R1K1T1NMCW
PV140R1K1T1NMFZ
PV140R1K1T1NMMCX5899
PV140R1K1T1NMMZ
PV140R1K1T1NMM1
PV140R1K1T1NMRZ
PV140R1K1T1NUCCX5889
PV140R1K1T1NZCB
PV140R1K1T1NSLW
PV140R1K1T1NWCW
PV140R1K1T1NKLB
PV140R1K1T1NMLB
PV140R1K1T1NULB
PV140R1K1T1NSCZ
PV140R1K1T1WKLC
PV140R1K1T1WMCC
PV140R1K1T1NMRC
