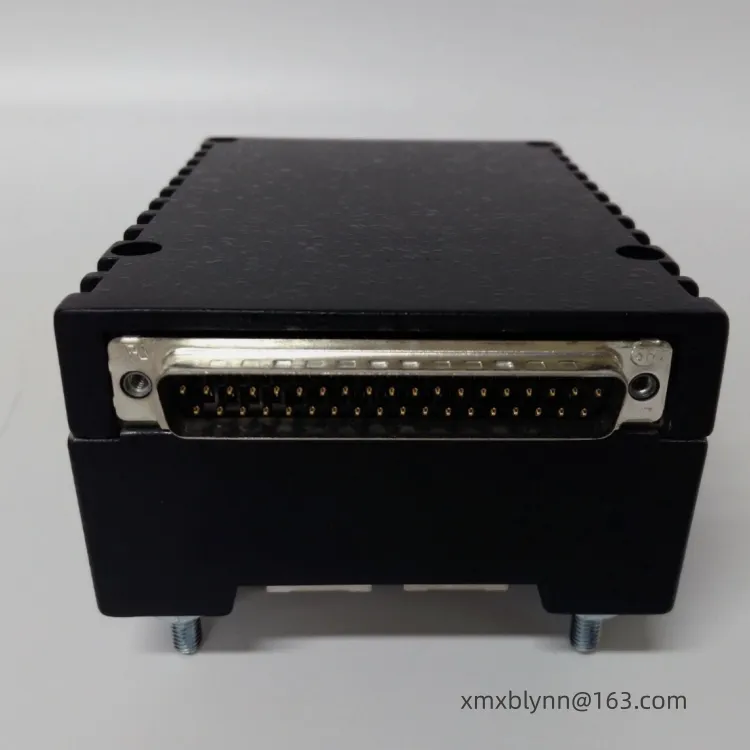

General Electric IS220YDIAS1B Safe discrete input module
The GE IS220YDIAS1B is a Mark VIeS Safety Discrete Input Module (YDIA) compatible with SIL 3 Safety Instrumented Systems (SIS) for contact signal acquisition in turbine safety control. It features 16 safety discrete inputs and redundant communication to ensure accurate acquisition of critical switch states and safety interlock triggering.
Core Performance:
I/O and Safety Capabilities
Discrete Inputs: 16 safety contact inputs, compatible with 24/28VDC wet contacts, compatible with limit switches, pressure switches, and other contact signals. Single-channel rated current is 2A, supporting contact closure/opening status acquisition.
Safety Certification: Compliant with IEC 61508 SIL 3, 2500Vrms isolation between channels, preventing fault propagation, compatible with Emergency Stop (ETS), overspeed protection, and other safety circuits.
Diagnostic Functions: LED status indication for each channel, supports ControlST real-time diagnostics of channel status and link quality for rapid contact fault location.
Communication and Electrical
Communication Interface: Dual 100M full-duplex Ethernet ports, supporting IONet/Modbus TCP, redundant links ensure continuous data transmission, compatible with Mark VIeS distributed I/O architecture.
Power Supply: 22.5-28.6VDC, overvoltage/reverse connection protection, operating temperature -30℃ to 65℃, suitable for Class 1 Div 2 hazardous areas, vibration/shock resistant.
Management and Maintenance: Supports hot-swapping; failure does not affect other channels, suitable for continuous operation requirements of turbine control.
Terminal Board Compatibility: IS400STCIS1A/2A, IS400TBCIS2C, interfaced via DC-37 pin connectors, flexible installation.
Email: xmxblynn@163.com
Phone: +86 18059884797
Key Technical Parameters
Parameter Value
Model IS220YDIAS1B (Mark VIeS Safety Discrete Input Module)
Compatible System GE Mark VIeS Safety Control System
Input Channels 16-channel safety discrete contact inputs (wet contacts)
Electrical Specifications 24/28VDC, 2A per channel, 2500Vrms inter-channel isolation
Communication Dual 100M Ethernet ports, IONet/Modbus TCP
Power Supply 22.5-28.6VDC, overvoltage/reverse connection protection
Environment Class 1 Div 2, -30℃ to 65℃, vibration/shock resistant
Mounting DIN rail, hot-swappable, DC - 37-pin connector
Status In-service Mark VIeS system spare parts for replacing safety discrete input modules
Typical Applications Turbine safety control: Compatible with Mark VIeS gas/steam turbines The system collects switch signals such as speed, vibration, and pressure, providing status input for commands such as safe shutdown and valve control.
Safety interlock execution: Used in safety circuits such as ETS and fire alarms, it collects contact status signals to trigger interlocks, driving safety valves and audible/visual alarms, suitable for high-risk scenarios such as power plants and petrochemical plants.
Process status monitoring: Collects limit and pressure contact signals from the turbine BOP system, providing status input for safety control, suitable for large-scale industrial auxiliary systems.
Spare parts replacement and maintenance: Compatible with the already operational Mark VIeS system, used for replacing fail-safe discrete input modules to ensure continuity of safety functions.
