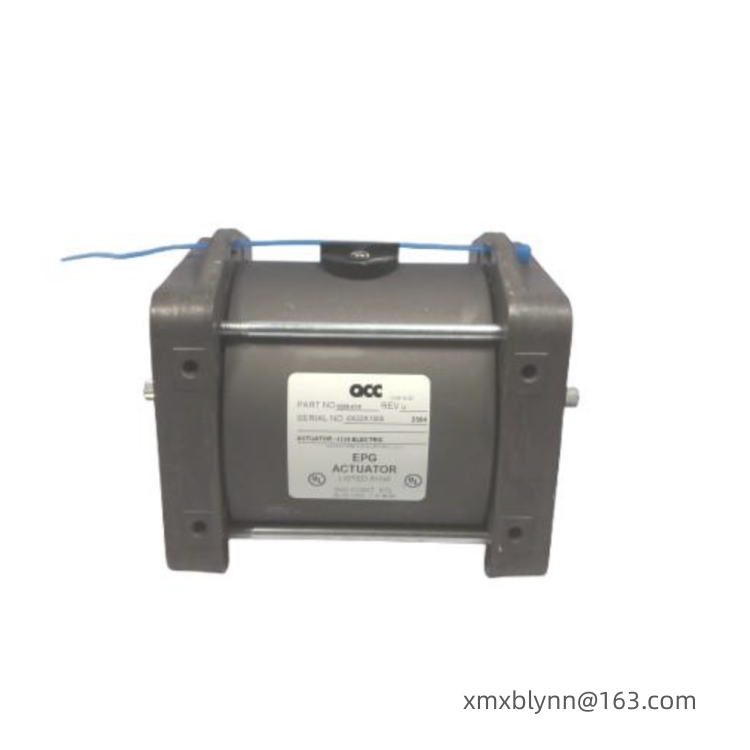

Woodward 8256-027 All-electric speed controller
The Woodward 8256-027 is an EPG 512 type 24V DC all-electric governor actuator. It adds fuel by counter-clockwise (CCW) rotation, with a total stroke of 30° and a maximum working capacity of 0.7J (0.5 ft-lb). It is suitable for precise fuel rack/valve control in small to medium-sized engines without mechanical/hydraulic drives and is commonly used in 24V system diesel/gas generator sets and power machinery.
Core Performance:
Power and Compatibility: Independent 24V DC electric drive, requiring no mechanical/hydraulic oil source. Compatible with 24V system prime movers and low-mass, low-friction fuel linkage mechanisms, simplifying design and maintenance.
Precise Stroke and Output: 30° total stroke, overtravel design ensures mechanical limit is reached; the recommended stroke from no-load to full-load is 2/3 of the total stroke, allowing for acceleration, deceleration, and stopping margins.
The output shaft is a 0.375"-36" SAE spline (both ends), compatible with standard fuel control linkages.
Control Adaptation: Receives PWM/proportional current signals from EPG controllers (such as the 8290 series), forming a closed loop with a magneto-electric speed sensor to achieve isochronous/droop speed regulation and start-up fuel limiting, reducing exhaust emissions and start-up overspeed.
Environment and Protection: Operating temperature -40℃ to +93℃, resistant to vibration and electromagnetic interference, IP54 protection rating (typical), suitable for harsh operating conditions.
Rotation Direction: Counter-clockwise (CCW) rotation adds fuel, adapting to the reverse operation logic of some fuel control mechanisms to meet the needs of special models.
Key Technical Parameters
Email: xmxblynn@163.com
Phone: +86 18059884797
Key Technical Parameters
Parameter Value
Model 8256-027 (EPG 512 Actuator)
Operating Voltage 24V DC
Output Shaft Specification 0.375"-36 SAE Spline (both ends)
Total Stroke 30°
Maximum Working Capacity 0.7 J (0.5 ft-lb)
Rotation Direction Counterclockwise (CCW) for fuel addition
Ambient Temperature -40℃ to +93℃
Protection Rating IP54 (typical)
Adaptive Signals EPG Controller PWM / Proportional Current Signal, Magnetoelectric Speed Sensor Signal
Typical Applications
24V Diesel Generator Sets: Main/standby power supply speed stabilization control, compatible with Perkins, Cummins, and other models without hydraulic speed control systems, supports load sharing and parallel operation, and is compatible with start-up fuel limiting strategies.
Small Gas Engines: Biogas, gas engines with time-varying speed control, used for distributed power generation or driving small compressors, water pumps, and other mechanical loads.
Industrial Power Machinery: Agricultural machinery, construction machinery auxiliary equipment, etc., compatible with 24V. The system improves the accuracy of speed and load matching.
Special Equipment and Test Benches: Performance test benches for marine auxiliary machinery and engines without hydraulic systems, providing precise speed control to obtain stable operating data.
Advanced Governor Upgrades: Replace mechanical/hydraulic governors to adapt to 24V system engines, improving response speed and reliability, and reducing maintenance costs.
