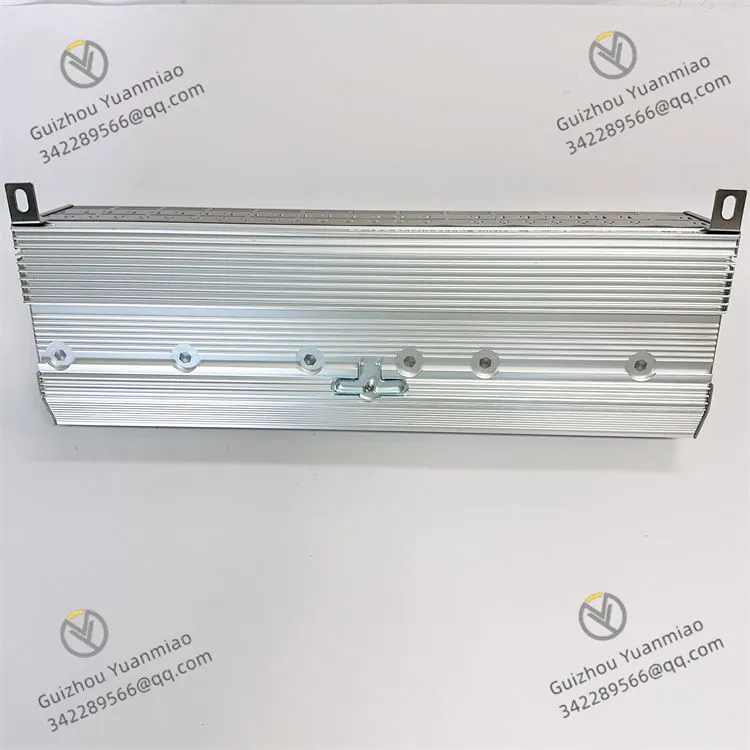

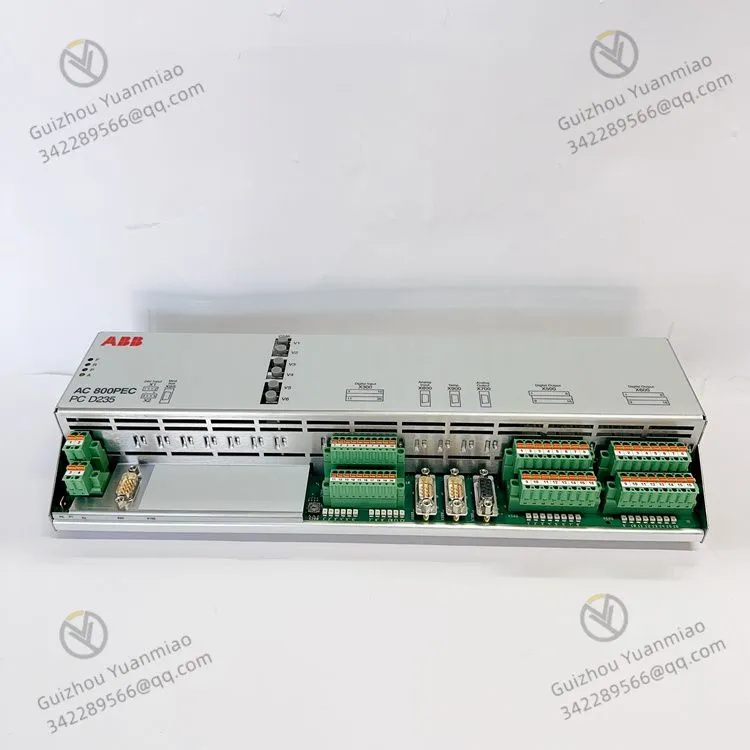

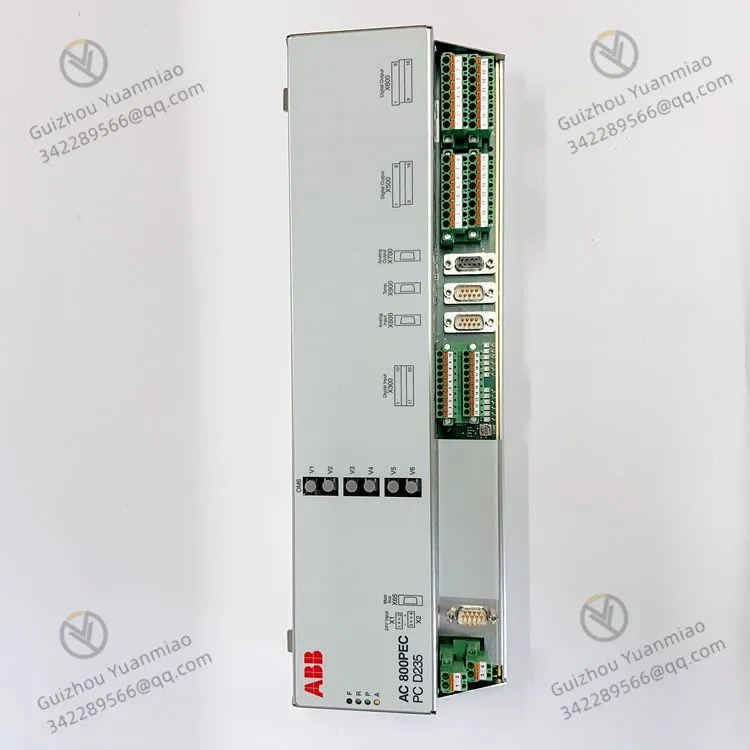

ABB PCD235B1101 (Part No. 3BHE032025R1101) is an industrial-grade high-performance control processor module, belonging to ABB PCD series. It is mainly positioned as the core computing and control unit of industrial automation control systems, custom-designed for logic control, process regulation, data processing and system linkage in complex industrial scenarios. Integrating high-precision computing core and modular design concept, this module has powerful instruction processing capability, flexible expansion interfaces and high reliability. It can be seamlessly compatible with various ABB I/O modules, communication modules and upper-level control systems, undertaking core computing, logic judgment, instruction issuance and status monitoring tasks in industrial control loops. Its industrial-grade anti-interference design and wide environmental adaptability can effectively resist complex working conditions such as electromagnetic interference and temperature fluctuations on industrial sites. It is widely used in automation control systems in power, metallurgy, chemical industry, water treatment and other fields, with original factory quality control and a comprehensive system adaptation system. It can be used as a key core component to meet the maintenance, upgrading and expansion needs of existing control systems, providing core computing support for the stable, efficient and precise operation of industrial production.
I. Positioning and Value
As the "brain" of industrial automation control systems, this control processor module effectively fills the demand gap for high-precision computing, multi-task collaboration and flexible expansion in complex control scenarios. With powerful instruction processing capability, it can quickly complete logic computing, process regulation and data interaction, greatly improving the response speed and control precision of the control system. Its modular design supports flexible expansion of I/O channels, communication protocols and control functions, which can adapt to control needs of different scales without overall system transformation, shortening the project upgrading cycle and reducing system transformation costs. At the same time, the module is equipped with complete self-diagnosis, fault alarm and redundant backup functions, which can real-time monitor its own operating status, feedback fault information in a timely manner, reduce downtime and lower operation and maintenance costs. The industrial-grade anti-interference and wide environmental adaptability design ensures long-term stable operation in harsh industrial scenarios, providing reliable core control guarantee for key industrial links such as power excitation, metallurgical process control and chemical process regulation, meeting the needs of long-term continuous industrial operation.
II. Technical Parameters
1. Electrical and Computing Parameters
Parameter Item |
Specification Details |
|---|---|
Core Function |
Industrial logic control, process parameter regulation, real-time data processing, instruction issuance and status feedback; supports multi-task collaborative operation, with self-diagnosis and fault alarm functions |
Computing Core |
32-bit high-performance industrial processor, main frequency ≥200MHz; with high-speed computing and multi-task processing capabilities, capable of quickly responding to complex control needs |
Storage Capacity |
Program memory: ≥8MB Flash, Data memory: ≥512KB RAM; supports external SD card expansion (max 32GB), meeting the needs of large-capacity program and data storage |
Control Precision |
Analog control precision ≤±0.1% full scale, digital response time ＜1ms, pulse counting precision ±1 pulse, ensuring precise execution of control instructions |
Operating Voltage |
24V DC redundant power supply (18V DC-32V DC wide voltage adaptation), ripple ≤100mV, compatible with industrial standard control loop power supply |
Power Consumption |
Rated power consumption ≤12W, low-energy design, reducing overall system power consumption and heat dissipation requirements |
Electrical Isolation |
Mutual isolation between power circuit, control circuit and I/O circuit (isolation voltage ≥2500V AC); effectively avoiding signal crosstalk and electromagnetic interference, compliant with IEC 60664 standard |
2. Environmental and Reliability Parameters
Parameter Item |
Specification Details |
|---|---|
Operating Temperature |
-25℃ to +70℃; stable operation in a wide temperature range, adapting to complex industrial on-site and equipment room environments with high and low temperatures, no additional temperature control equipment required |
Storage Temperature |
-40℃ to +85℃; facilitating transportation and long-term storage, adapting to transportation and storage conditions in different regions |
Environmental Humidity |
5%-95% (non-condensing); resistant to erosion from humid environments, adapting to humid working conditions such as electroplating, water treatment and chemical industry |
Protection Grade |
IP20 (body), IP40 optional with protective cover; dust and moisture proof, suitable for cabinet installation scenarios, effectively preventing dust from entering and damaging internal circuits and components |
Anti-interference Performance |
Compliant with IEC 61000-4-2/4/5/6 standards; resistant to electrostatic discharge (8kV), surges (4kV) and electrical fast transient bursts (2kV), adapting to industrial strong electromagnetic environments |
Mean Time Between Failures (MTBF) |
＞150,000 hours; adopting industrial-grade high-quality components and precision manufacturing processes to ensure long-term stable operation and reduce the frequency of spare part replacement |
Redundancy Function |
Supports dual-machine hot redundancy and power supply redundancy; seamless switching to ensure uninterrupted operation of the control system and improve system reliability |
3. Structural and Interface Parameters
Parameter Item |
Specification Details |
|---|---|
Structural Form |
Modular compact design with reasonable component layout; facilitating heat dissipation and maintenance, saving distribution cabinet installation space, adapting to high-density cabinet layout |
Overall Dimensions |
100mm (width) ×200mm (height) ×60mm (depth); standard ABB PCD series module size, weight approx. 0.8kg, compatible with mainstream distribution cabinet specifications |
Mounting Method |
35mm standard DIN rail snap-on installation or bolt fixation; easy to install, enabling quick assembly and replacement, complying with industrial standard installation specifications |
Interface Type |
1 Ethernet (RJ45, supports Modbus TCP/IP), 2 RS485 serial interfaces, 1 USB debugging interface, 1 backplane bus interface; supports seamless connection with various I/O modules and communication modules |
Wiring Method |
Screw terminal wiring; firm contact, anti-vibration, facilitating wiring and later maintenance; adaptable to 1.0-2.5mm² specification cables, supporting separate wiring for power supply and control circuits |
Debugging Method |
Supports USB local debugging and Ethernet remote debugging; compatible with ABB Control Builder debugging software, enabling quick program download, parameter configuration and fault diagnosis |
III. Features and Advantages
High-Speed Computing and Precise Control: Equipped with a 32-bit high-performance industrial processor with a main frequency of ≥200MHz, it has powerful multi-task processing and logic computing capabilities. The analog control precision is ≤±0.1% full scale, and the digital response time is ＜1ms, which can accurately meet the real-time control needs in complex industrial scenarios and ensure the rapid and accurate execution of control instructions.
Flexible Expansion and Wide Adaptability: Modular design supports seamless connection with various ABB digital I/O, analog I/O and communication modules; the number of channels and functions can be flexibly expanded according to actual control needs. Wide voltage power supply (18V DC-32V DC) is compatible with global mainstream industrial control power supplies and various industrial communication protocols, widely adapting to automation control systems of different scales and types.
High Reliability and Stable Operation: Adopting industrial-grade high-quality components and precision manufacturing processes, the power supply, control and I/O circuits are fully isolated. The strong anti-interference performance can effectively resist complex working conditions such as electromagnetic interference and voltage fluctuations on industrial sites. It supports dual-machine hot redundancy and power supply redundancy, with MTBF ＞150,000 hours, ensuring uninterrupted stable operation of the control system and meeting the needs of long-term continuous industrial production.
Convenient Operation and Maintenance with Controllable Costs: Supports USB local debugging and Ethernet remote debugging; combined with special debugging software, it can quickly complete program download, parameter configuration and fault diagnosis. Built-in complete self-diagnosis and fault alarm functions can real-time feedback the module's operating status and fault information, facilitating quick problem location and reducing downtime. Standardized installation and modular design enable convenient replacement, reducing operation and maintenance workload and costs.
Compatible and Easy to Upgrade: Seamlessly compatible with ABB's existing automation control systems and debugging software, no need to re-learn the operation process, reducing personnel training costs. Supports online program modification and upgrading; program upgrading can be realized without stopping the system and disassembling the module, shortening the upgrading cycle and reducing production losses. Supports external SD card storage expansion, facilitating program backup and data export.
IV. Application Fields
Power Industry: In the auxiliary control systems of power plants and substations, it undertakes tasks such as excitation control, desulfurization and denitrification control, and circulating water system control, realizing precise regulation and stable operation of power equipment, and improving the intelligent management level of the power system.
Metallurgical Industry: In the control systems of rolling mills, electrolytic cells, heating furnaces and other equipment, it is responsible for logic computing, process parameter regulation and equipment linkage control, ensuring stable metallurgical processes and improving product quality and production efficiency.
Chemical Industry: In the control systems of chemical reactors, distillation towers, transfer pumps and other equipment, it realizes precise regulation of process parameters (temperature, pressure, flow) and safety interlocking, avoids abnormal situations in the production process, and ensures production safety and product qualification rate.
Water Treatment Industry: In the control systems of sewage treatment plants and waterworks, it is responsible for the linkage control of water pumps and valves and the monitoring of water quality parameters, realizing the automatic operation of the water treatment process, reducing manual operation and maintenance costs, and improving water treatment efficiency.
Other Industrial Scenarios: In the automation control systems of building materials, food and beverage, logistics and warehousing and other fields, it serves as the core control unit, undertaking logic control, data processing and equipment linkage tasks, adapting to diverse and complex control needs, and promoting the upgrading of production automation.
