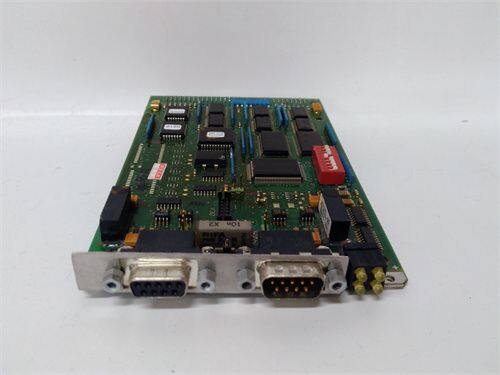

Help CenterABB 12MX04G-V0002 3EGM030900R0002 Digital I/O Expansion Module
Related Products
-
ABB 12KX02F-V0002 GVT8703200R0002 Digital I/O Expansion ModuleNegotiableMOQ: 1 Piece -
ABB GRBTU 3BSE013175R1 DP Slave Communication AdapterNegotiableMOQ: 1 Piece
-
ABB 500TRM02 1MRB150011R1NegotiableMOQ: 1 Piece
-
ABB RED615 HCDCACADAHC2BNN11E Feeder ProtectionNegotiableMOQ: 1 Piece
-
ABB PPC322AEV01 HIEE300697R1 Excitation Control BoardNegotiableMOQ: 1 Piece
ABB 12MX04G-V0002 (Part No. 3EGM030900R0002) is an industrial-grade high-performance digital I/O expansion module, belonging to ABB's industrial automation I/O product line. It is mainly positioned as a digital signal acquisition and output expansion unit for PLC systems, custom-designed for multi-device signal interaction, logic control and remote linkage in industrial automation scenarios. This module is fully compatible with ABB's mainstream PLC systems (such as AC500 series), with dual functions of digital signal input (DI) and digital signal output (DO). It can accurately collect switching signals from on-site sensors, limit switches and other equipment, and drive contactors, solenoid valves and other executive components, undertaking the core tasks of signal conversion, logic interlocking and status feedback in industrial control loops. Adopting an industrial-grade modular design, the module features high anti-interference performance, high stability and flexible expandability, adapting to harsh industrial environments. It is widely used in process control, discrete manufacturing, power auxiliary control, water treatment and other fields, with original factory quality control and a comprehensive system adaptation system. It can be used as a key spare part to meet the maintenance and expansion needs of existing automation systems, providing reliable I/O signal support for the stable and efficient operation of production lines.
I. Positioning and Value
As a core I/O expansion component of PLC systems, this module effectively fills the gap of insufficient number of native I/O interfaces and limited scenario adaptability of mainstream PLCs. It can be quickly integrated into existing automation control loops without complex protocol conversion and system debugging, greatly shortening the project integration cycle and reducing system transformation costs and spare part complexity. At the same time, it is equipped with complete signal isolation and anti-interference design, which can effectively resist complex working conditions such as electromagnetic interference and voltage fluctuations on industrial sites, avoid faults such as signal distortion and false triggering, and improve the reliability and stability of the control loop. The modular structure design facilitates on-site installation, replacement and maintenance, and can flexibly expand I/O channels according to actual control needs, adapting to automation systems of different scales, providing core support for logic control, status monitoring and safety interlocking of industrial equipment, and meeting the needs of long-term continuous industrial operation.
II. Technical Parameters
1. Electrical and I/O Parameters
Parameter Item | Specification Details |
|---|---|
Core Function | Digital Input (DI) + Digital Output (DO); realizes switching signal acquisition, conversion and executive component driving, supporting logic interlocking and status feedback |
I/O Channel Configuration | 8 digital inputs (DI) + 4 digital outputs (DO); channel quantity can be expanded via backplane bus to meet multi-equipment control needs |
Input Signal Type | PNP/NPN compatible; adapted to 24V DC standard industrial switching signals, supporting dry contact/wet contact input |
Output Signal Type | Transistor output (MOSFET); supports sink current/source current output, adapted to small executive component driving |
Rated Electrical Parameters | Operating Voltage: 24V DC redundant power supply; Input Current: ≤10mA/channel; Output Current: 2A/channel (max), total output current ≤8A |
Response Time | Input response time ＜1ms, output response time ＜0.5ms, ensuring precise synchronization of signal acquisition and execution commands |
Electrical Isolation | Electrical isolation between input/output circuits and power circuit (isolation voltage ≥2500V AC), mutual isolation between channels; effectively avoiding signal interference and crosstalk, compliant with IEC 60664 standard |
2. Environmental and Reliability Parameters
Parameter Item | Specification Details |
|---|---|
Operating Temperature | -25℃ to +70℃; stable operation in a wide temperature range, adapting to complex industrial on-site and equipment room environments with high and low temperatures, no additional temperature control equipment required |
Storage Temperature | -40℃ to +85℃; facilitating transportation and long-term storage, adapting to transportation and storage conditions in different regions |
Environmental Humidity | 5%-95% (non-condensing); resistant to erosion from humid environments, adapting to humid working conditions such as water treatment and chemical industry |
Protection Grade | IP20 (body), IP40 optional with protective cover; dust and moisture proof, suitable for cabinet installation scenarios, effectively preventing dust from entering and damaging internal circuits |
Anti-interference Performance | Compliant with IEC 61000-4-2/4/5 standards; resistant to electrostatic discharge, surges and electrical fast transient bursts, adapting to complex electromagnetic environments around frequency conversion equipment |
Mean Time Between Failures (MTBF) | ＞100,000 hours; mechanical life ≥10 million operations; electrical life ≥100,000 operations (under rated load); adapting to long-term industrial operation needs |
3. Structural and Installation Parameters
Parameter Item | Specification Details |
|---|---|
Structural Form | Compact modular design, narrow-body structure; saving distribution cabinet installation space, adapting to high-density cabinet layout |
Overall Dimensions | 22.5mm (width) ×90mm (height) ×65mm (depth); standard industrial I/O module size, compatible with mainstream distribution cabinet specifications |
Mounting Method | 35mm standard DIN rail snap-on installation; installable and replaceable within 5 minutes, convenient and efficient, complying with industrial standard installation specifications |
Weight | Approx. 0.2kg; light weight, reducing cabinet load, facilitating batch installation and transportation |
Wiring Method | Spring terminal wiring; firm contact, anti-vibration, facilitating wiring and later maintenance; adaptable to 0.5-2.5mm² specification cables |
III. Features and Advantages
High Compatibility with Plug-and-Play: Fully compatible with ABB AC500 and other mainstream PLC systems; no additional adaptation software or hardware required; parameters can be quickly configured after accessing the system, shortening project integration and commissioning cycle, and reducing integration difficulty.
Precise, Efficient and Fast Response: Extremely short input/output response time (input ＜1ms, output ＜0.5ms); can accurately capture instantaneous signal changes of on-site equipment, quickly execute control commands issued by PLC, ensuring synchronization and accuracy of control logic, adapting to high-speed control scenarios.
Strong Anti-interference and Stable Operation: Adopting full isolation design (mutual isolation between power supply, input and output circuits), combined with shielded housing, effectively resisting electromagnetic interference, voltage fluctuations and signal crosstalk on industrial sites, avoiding false triggering, signal distortion and other faults; selected industrial-grade components, coil adopts epoxy resin potting process, with excellent dust and moisture proof performance, adapting to harsh industrial environments.
Flexible Expansion and Wide Adaptability: Modular structure design, supporting I/O channel expansion via backplane bus; can be flexibly combined according to actual control needs, adapting to automation systems of different scales; PNP/NPN compatible input and transistor output design, adapting to various types of on-site equipment, with extremely strong versatility.
Convenient Operation and Maintenance with Controllable Costs: Standardized DIN rail snap-on installation and spring terminal wiring, facilitating installation, replacement and wiring without professional and complex tools; high-reliability design with low failure probability, greatly reducing the frequency of spare part replacement and operation and maintenance workload, while lowering enterprise downtime losses and operation and maintenance costs; supporting online fault diagnosis, which can quickly locate channel faults and improve operation and maintenance efficiency.
IV. Application Fields
Discrete Manufacturing Industry: In scenarios such as auto parts assembly lines, electronic assembly lines and machine tool processing, collect status signals of limit switches, photoelectric sensors and other equipment, drive conveyors, clamping devices, indicator lights and other executive components, realize automatic linkage and logic control of production lines, and improve production efficiency and product qualification rate.
Process Industry: In scenarios such as petrochemical, cement and water treatment, collect switch status signals of pumps, valves, flow meters and other equipment, drive solenoid valves, contactors and other components, realize automatic control, status monitoring and safety interlocking of production processes, ensure stable and controllable production processes, and comply with industrial safety specifications.
Power Auxiliary Control: In substation and power plant auxiliary control systems, collect position signals of circuit breakers, disconnectors and other power equipment, drive indicator lights, alarm devices and other components, realize status monitoring and remote control of power equipment, and improve the intelligent management level of power systems.
Other Industrial Scenarios: In scenarios such as logistics and warehousing (control of stackers and conveyors in automated stereoscopic warehouses), municipal engineering (street lamp control, pipe network monitoring), food and beverage (control of production line sterilization and packaging equipment), it serves as a core I/O expansion unit to realize on-site equipment signal acquisition and execution control, adapting to diverse industrial control needs.
V. Installation and Maintenance Notes
A visual inspection must be performed before installation to confirm that the module body is intact and the wiring terminals are not damaged; install the module only after verifying that the product model is consistent with the actual application requirements.
Before installation and maintenance, the module power supply and associated equipment power supply must be cut off to ensure no voltage access; wear personal protective equipment (such as insulating gloves) if necessary to ensure personal and equipment safety.
Wiring must be performed in strict accordance with terminal marks to ensure firm wiring and avoid heating or signal distortion caused by poor contact; the cable cross-section must meet requirements to avoid heating faults caused by too thin wires; at the same time, keep away from high-voltage cables to reduce electromagnetic interference.
The installation environment must be dry and ventilated, avoiding direct sunlight, high temperature, humidity, heavy dust and corrosive gas scenarios; ensure that the environmental parameters meet the module's working requirements to extend the module's service life.
Perform regular maintenance and inspection: clean the module surface dust with a dry cloth every month, check the tightness of wiring terminals every quarter, perform a functional test every six months to simulate load conditions to ensure the module works normally, and conduct a comprehensive inspection every year to handle potential faults in a timely manner.
When the module fails, first check the power supply, wiring and associated equipment faults, then replace the module; after replacing the module, recheck the parameter configuration to ensure compatibility with the system before putting it into operation; all installation and maintenance operations must be performed by qualified professional personnel.
