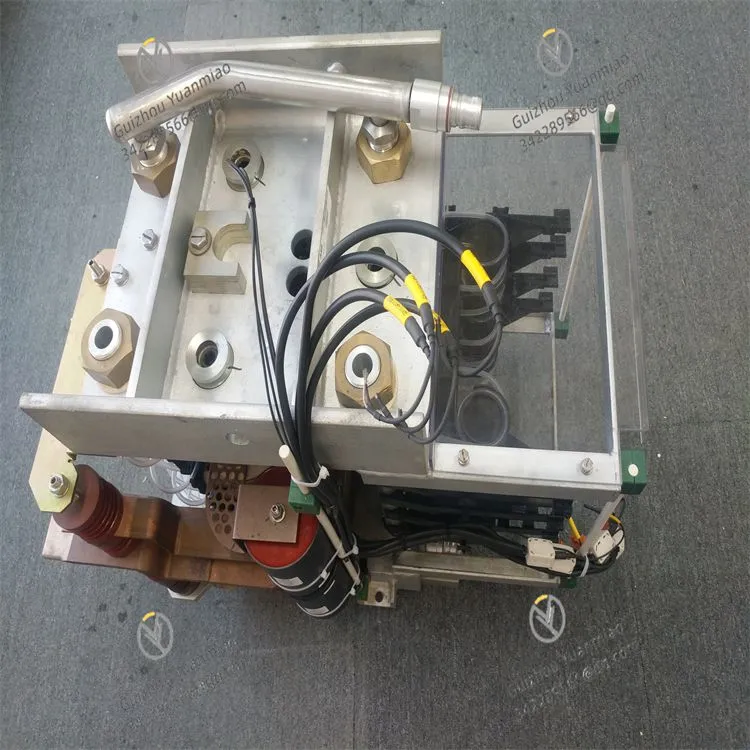

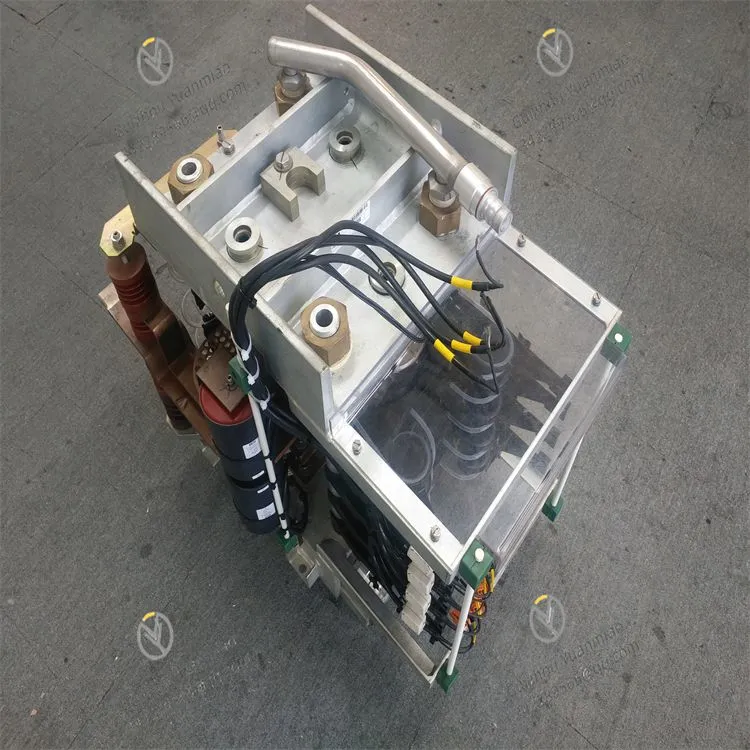

ABB S-053M (3BHB012897R0003) is a high-power medium-voltage frequency converter phase module with a core of Power Electronic Building Block (PEBB) integrated with Integrated Gate-Commutated Thyristor (IGCT). As the core power unit of ABB ACS 6000 series medium-voltage drive systems, it is custom-designed for the three-level Voltage Source Inverter (VSI) topology, undertaking the core power conversion tasks of AC-DC rectification and DC-AC inversion. It accurately regulates the phase and amplitude of electric energy under medium-high voltage and large current working conditions, adapts to the 5MV medium-voltage system, and provides reliable power support for the variable frequency speed regulation of large synchronous/asynchronous motors. Adopting a modular and liquid-cooled integrated design, the module features high power density, strong anti-interference performance and long service life. It can be seamlessly integrated into the ACS 6000 drive platform and is compatible with industrial automation systems such as ABB 800xA. Widely used in power, metallurgy, mining, cement, oil and gas and other industries requiring megawatt-level high-power speed regulation, it complies with Swedish original manufacturing standards and is supported by a comprehensive system adaptation and spare parts guarantee system.
I. Technical Parameters
Adopting a standardized power module architecture that balances power density, thermal management efficiency and electrical reliability, the core parameters are summarized from ABB original manuals and industry application data as follows:
Power and Electrical Parameters
Adapted System: ACS 6000 medium-voltage frequency converter, single-phase branch of three-level VSI topology; rated for 5 MV medium-voltage class.
Core Component: Industrial-grade IGCT module with fast turn-off, low loss and high surge withstand capacity.
Cooling Method: Forced liquid cooling (glycol aqueous solution circuit as standard), ensuring temperature stability under large current working conditions.
Control Power Supply: 24 V DC redundant power supply, compliant with the control circuit standards of industrial drive systems.
Insulation Class: Meets the requirements of medium-voltage equipment (IEC 60664), with creepage distance and electrical clearance complying with the standards of 3.3 kV and above systems.
Short-Circuit Withstand: Equipped with short-time short-circuit protection and fault blocking functions to prevent secondary damage to power devices.
Communication and Control Interfaces
Interface Type: Backplane power bus + optical fiber control interface (electrically isolated, resistant to EMI/RFI interference).
Communication Protocol: Adapted to the ACS 6000 dedicated drive bus, accessible to industrial networks such as PROFIBUS DP, PROFINET and Modbus, enabling remote monitoring, fault diagnosis and parameter adjustment.
Status Feedback: With multi-dimensional digital/analog alarm output for temperature, overcurrent, overvoltage, IGCT gate fault and other faults.
Environmental and Protection Parameters
Operating Temperature: -10°C to +40°C (within the normal operating range of the liquid cooling circuit); Storage Temperature: -40°C to +70°C.
Protection Grade: IP20 (for cabinet installation), with dustproof sealing for the internal power chamber.
Anti-Interference Performance: Compliant with IEC 61800-3 anti-electromagnetic interference standard for industrial drives, withstanding grid surges and electrical fast transient bursts.
Vibration and Shock Resistance: Meets IEC 60068-2 standard for industrial equipment, adapted to the mechanical vibration environment of factory buildings.
Structural and Installation Parameters
Structural Form: Standard rack-mounted power module, integrated with liquid cooling interfaces, power busbars and optical fiber control terminals.
Net Weight: Approximately 120 kg.
Installation Method: Fixed by guide rails/bolts of ACS 6000 dedicated cabinet, supporting parallel expansion between modules.
Maintenance Interfaces: Equipped with built-in access cover, liquid cooling quick connectors and optical fiber plug-in ports for convenient on-site replacement and detection.
Additional Function Parameters
Fault Diagnosis: Real-time monitoring of IGCT junction temperature, gate drive voltage, inlet and outlet temperature of liquid cooling circuit, and bus voltage.
Redundancy Design: Supporting hot standby/parallel operation of dual modules.
Service Life: Designed to meet the requirements of long-term industrial operation (more than 20 years, subject to working conditions and maintenance).
II. Features and Advantages
IGCT Core for High-Power and High-Efficiency Conversion: Compared with traditional GTO/IGBT solutions, IGCT features lower loss and faster dynamic response in megawatt-level medium-voltage scenarios, achieving higher frequency conversion efficiency (>98% under rated working conditions) and reducing system energy consumption.
Modular Liquid Cooling for Stable and Reliable Heat Dissipation: The integrated liquid cooling circuit has much higher heat dissipation efficiency than air cooling, suitable for harsh environments such as high-altitude and high-temperature factory buildings, and prevents dust from entering the power chamber.
Optical Fiber Control with Ultra-Strong Anti-Interference Capacity: Control signals are transmitted via optical fibers, which completely isolate the strong electromagnetic interference of the main power circuit, ensuring accurate gate triggering and zero-delay fault response.
Original Factory Adaptation for Perfect System Compatibility: Custom-designed for ACS 6000, it can be integrated without additional adaptive components, shortening project commissioning cycle and reducing the complexity of spare parts.
Convenient Operation and Maintenance with Quick Replacement: Modular design and standard interfaces allow on-site replacement only by connecting the liquid cooling circuit, power busbars and optical fibers; fault location can be quickly realized with ABB diagnostic tools.
III. Application Fields
Power Industry: Medium-voltage variable frequency speed regulation of fans, feed water pumps and induced draft fans in large power plants.
Metallurgy and Mining: High-power frequency conversion systems for main drives of rolling mills in steel plants, mine hoists and large ball mills.
Cement and Building Materials: Medium-voltage speed regulation of main motors of cement rotary kilns and vertical coal mills.
Oil and Gas: Explosion-proof medium-voltage drive systems for long-distance pipeline compressors and water injection pumps on offshore platforms.
Industrial Infrastructure: Variable frequency transformation of large water pumps in seawater desalination plants and circulating pumps for urban central heating.
